Ignition Coil: Service and Repair

REMOVAL

IGNITION COIL
1. Remove the engine cover.

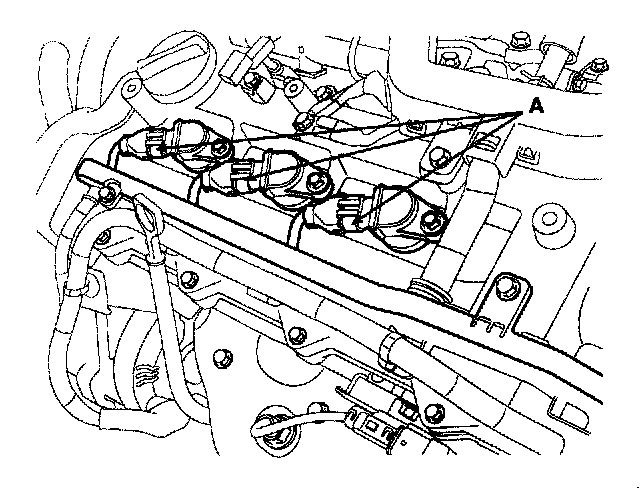

2. Remove the ignition coil connector (A).
3. Remove the ignition coil.
4. Installation is the reverse of removal.
