Ignition Coil: Testing and Inspection

INSPECT IGNITION COIL

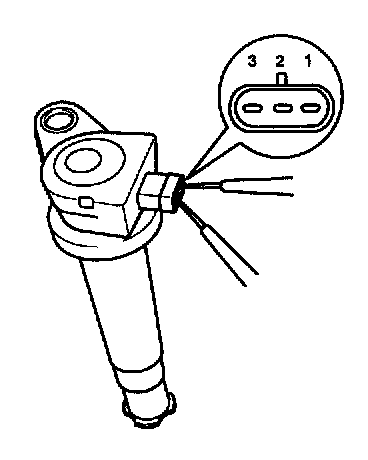

1. Measure the primary coil resistance between terminals (+) and (-).

Standard : 00715 ± 0.015 ohms

NOTE: Measure the resistance between the terminals No. 7 and No. 3.
