Engine Control Module: Service and Repair
REPLACEMENT1. Turn ignition switch off.
2. Disconnect the battery (-) cable from the battery.

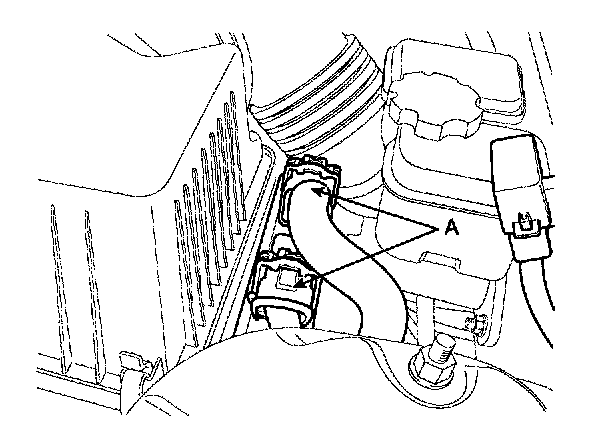

3. Disconnect the PCM connectors (A)

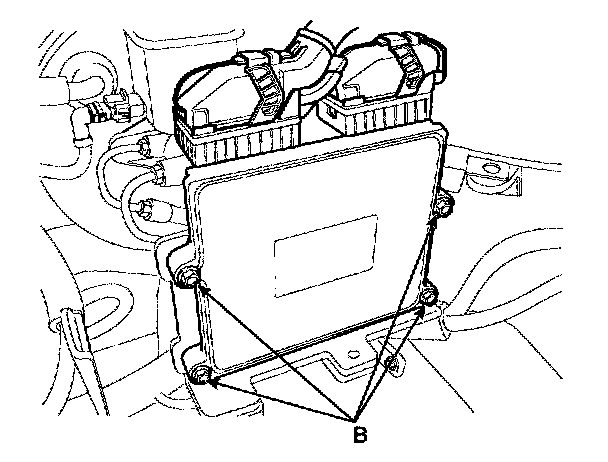

4. Unscrew the PCM mounting bolts (B) and remove PCM from the air cleaner assembly.
5. Install a new PCM.
PCM mounting bolts: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lbf4t)
