Pinout Values and Diagnostic Parameters

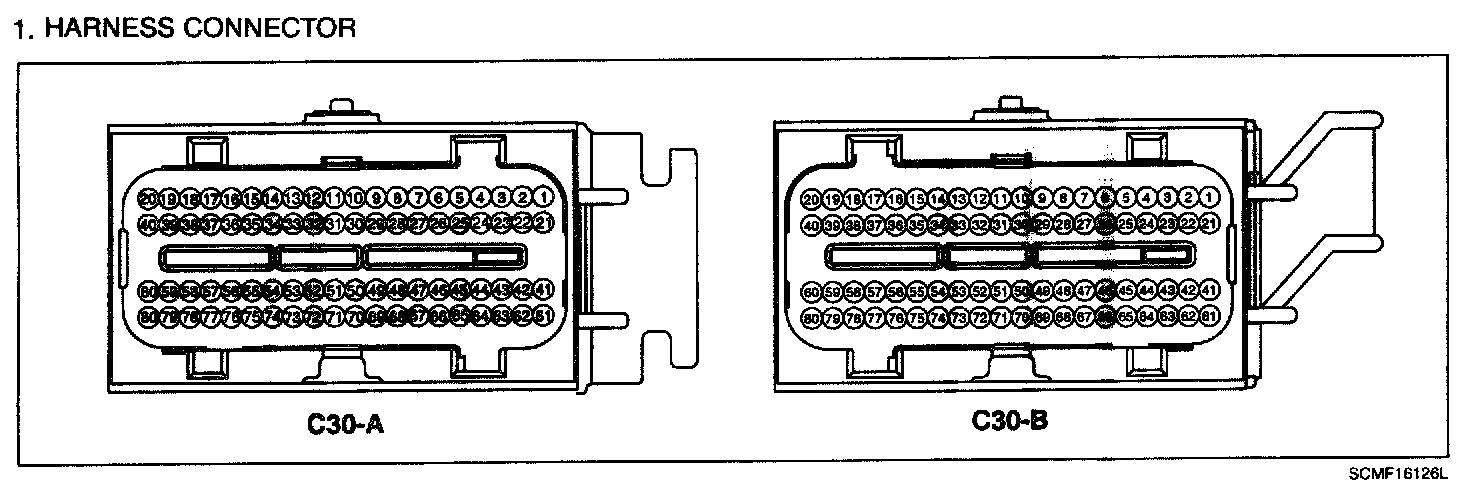

Harness Connector:

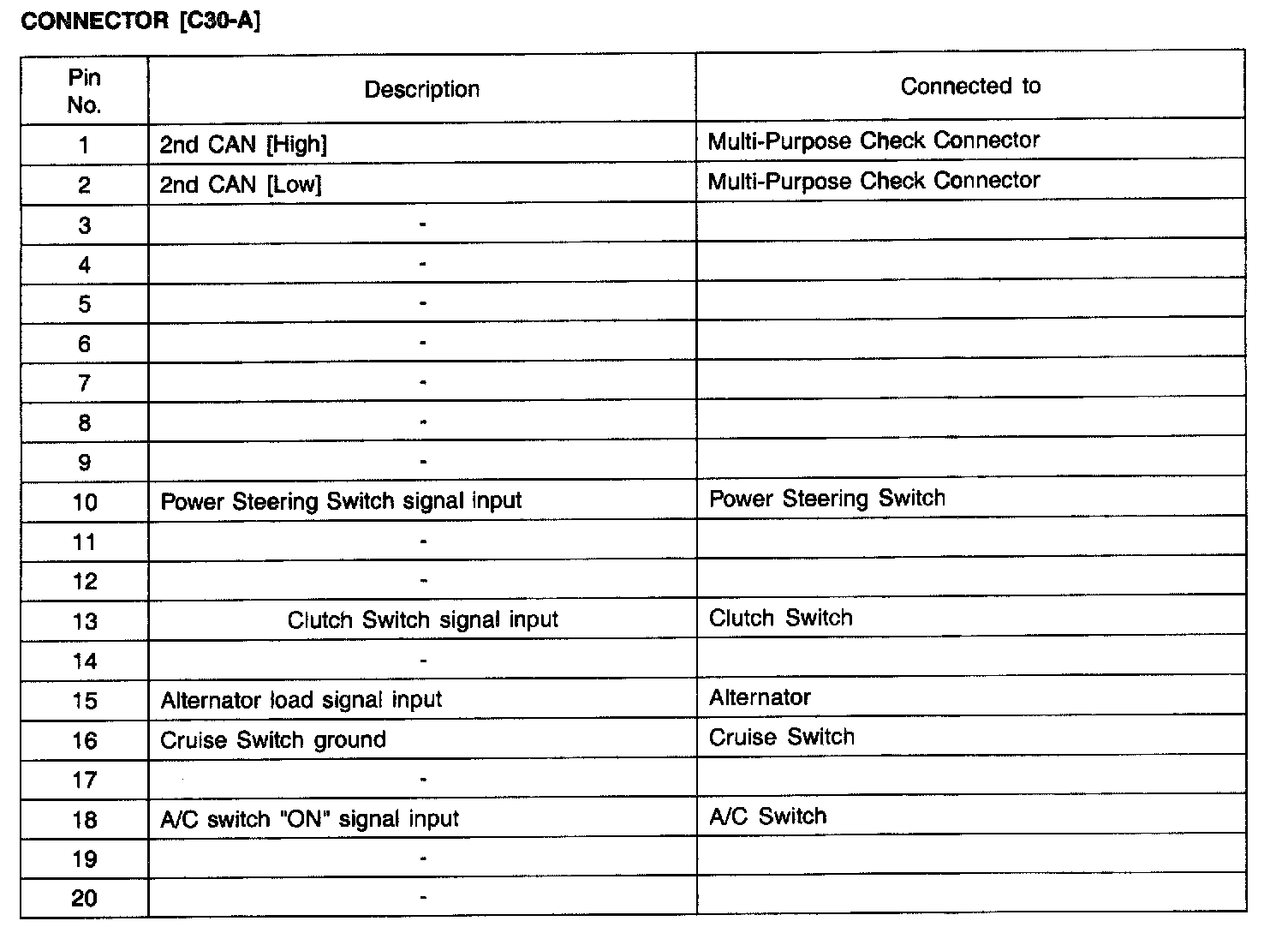

PCM Terminal Function - Connector (C30-A) Part 1:

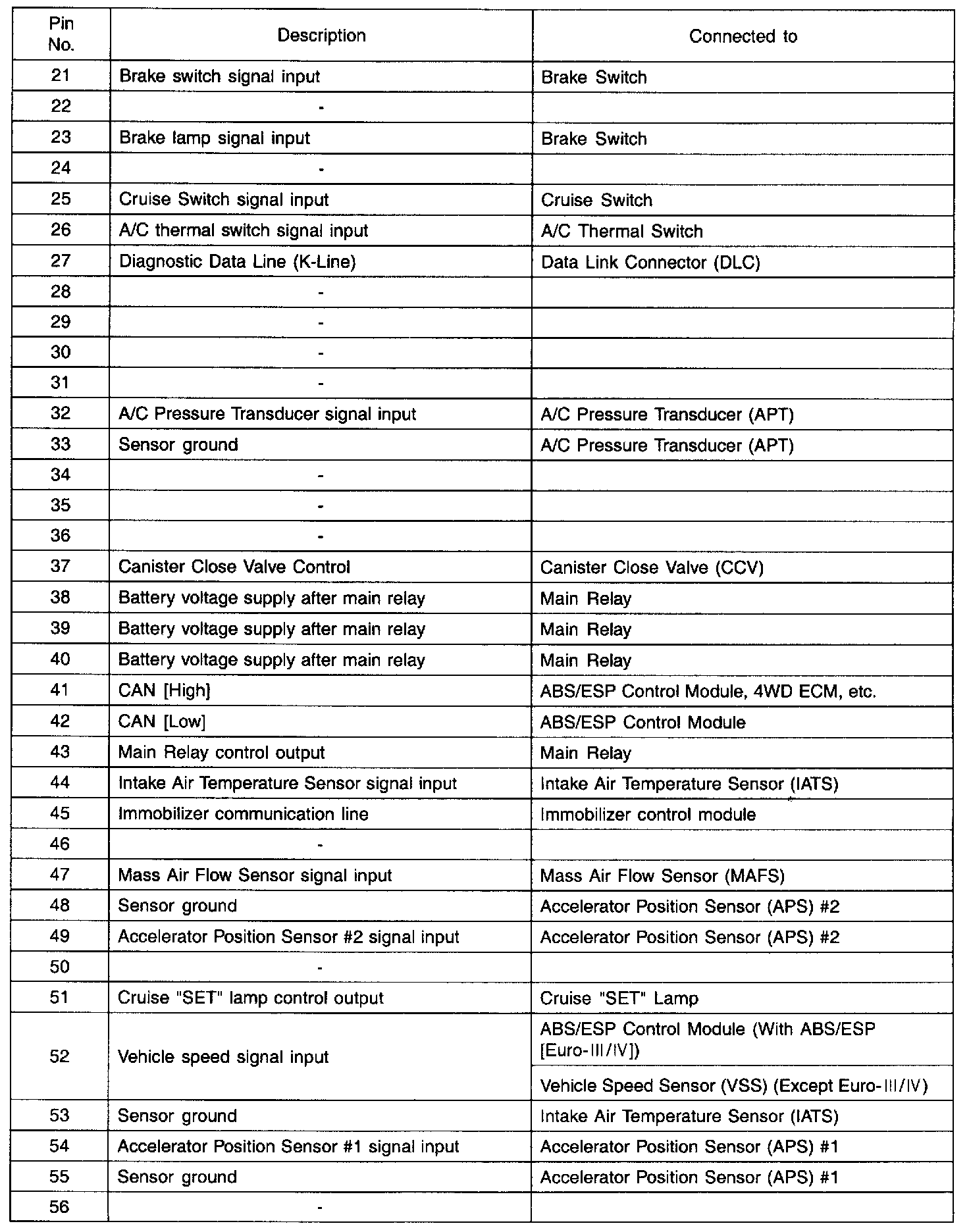

PCM Terminal Function - Connector (C30-A) Part 2:

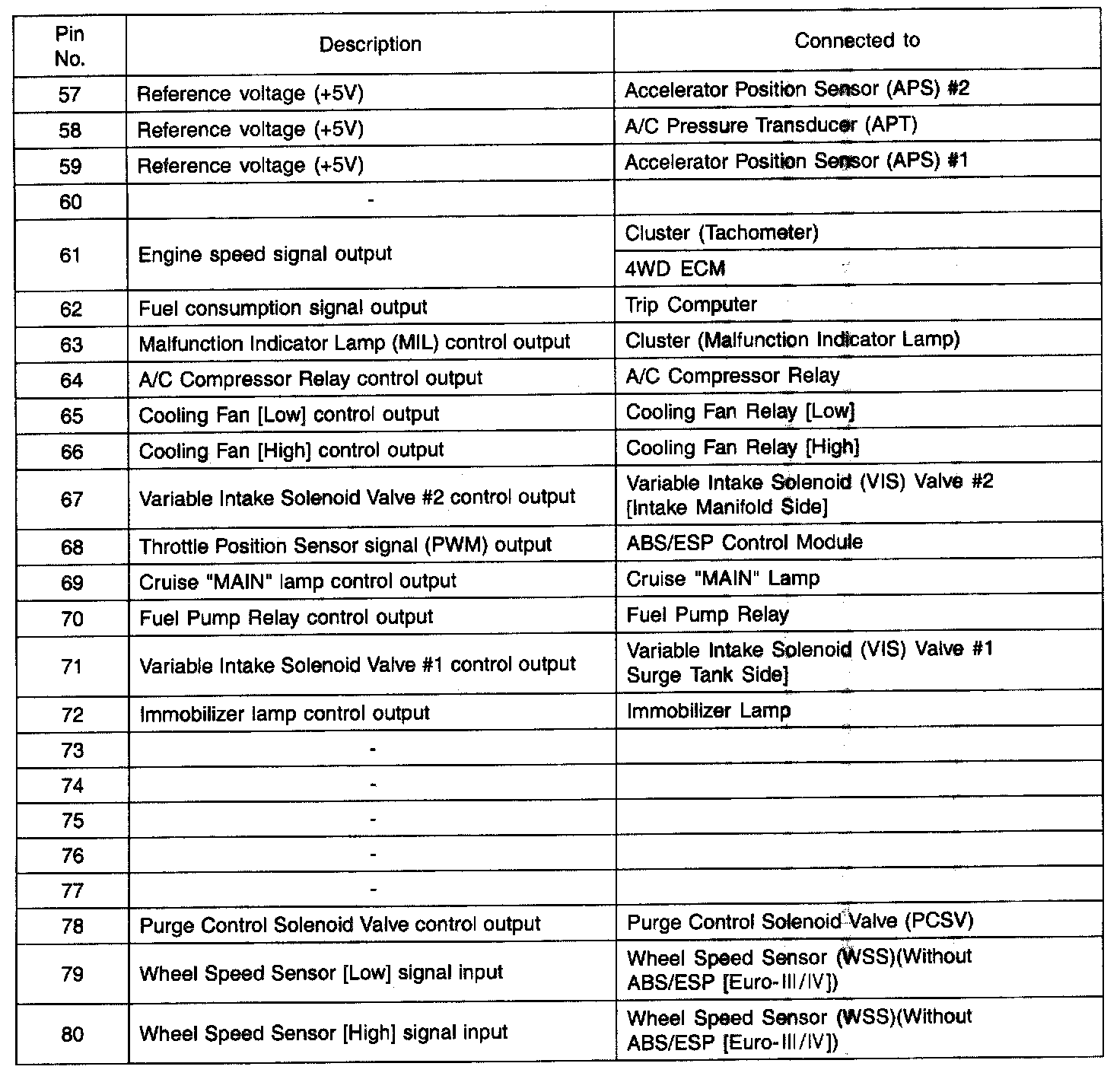

PCM Terminal Function - Connector (C30-A) Part 3:

PCM TERMINAL FUNCTION - CONNECTOR [C30-A]

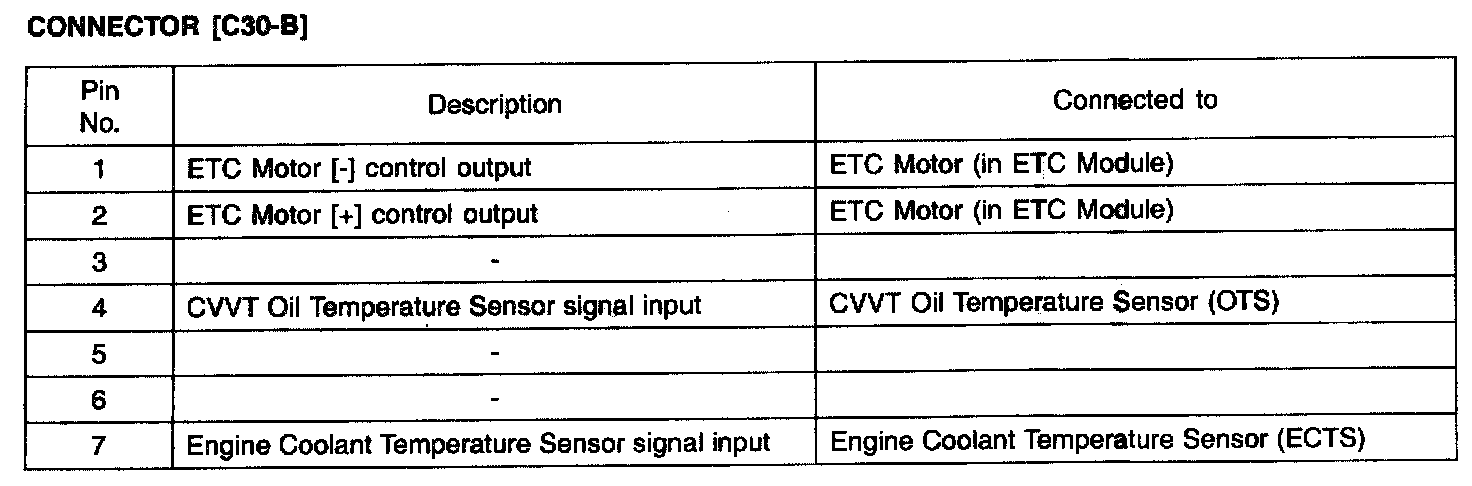

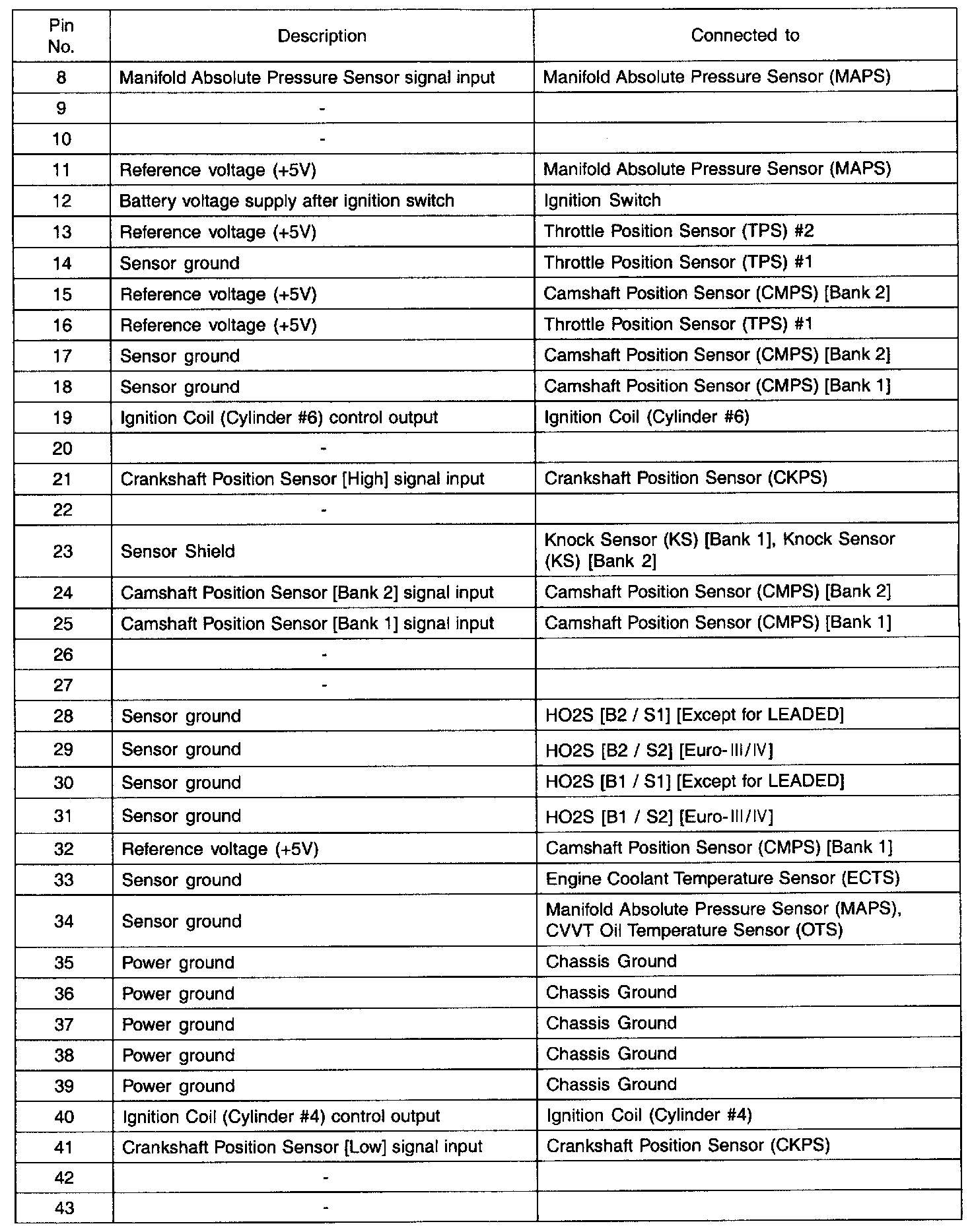

PCM Terminal Function - Connector (C30-B) Part 1:

PCM Terminal Function - Connector (C30-B) Part 2:

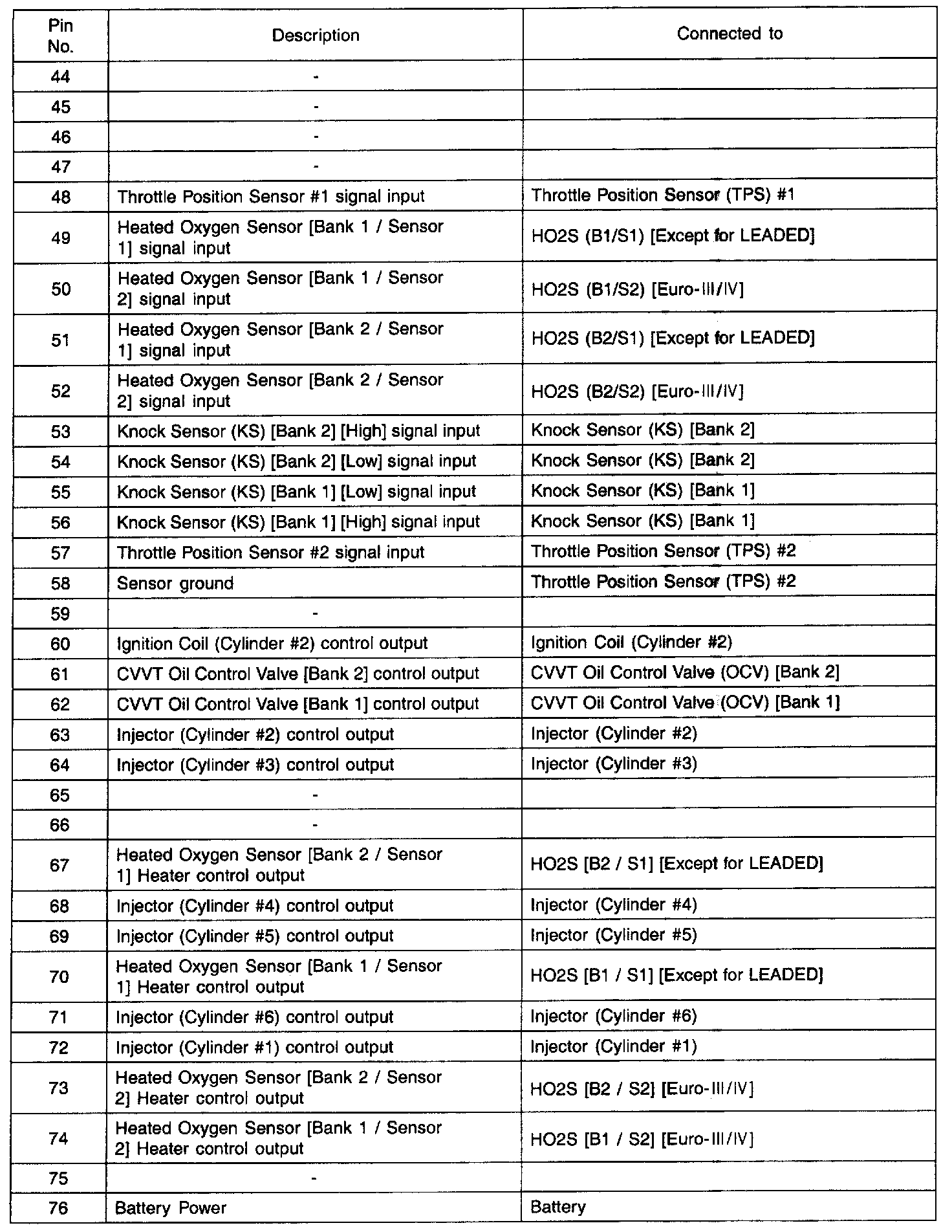

PCM Terminal Function - Connector (C30-B) Part 3:

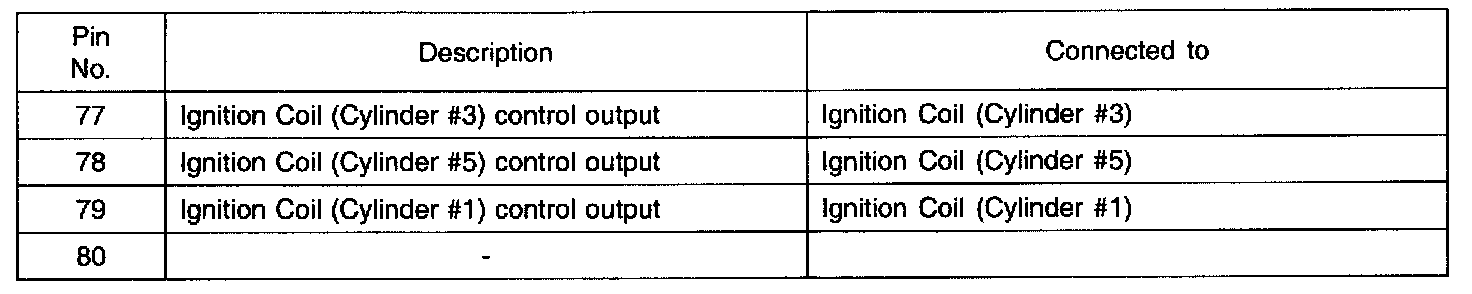

PCM Terminal Function - Connector (C30-B) Part 4:

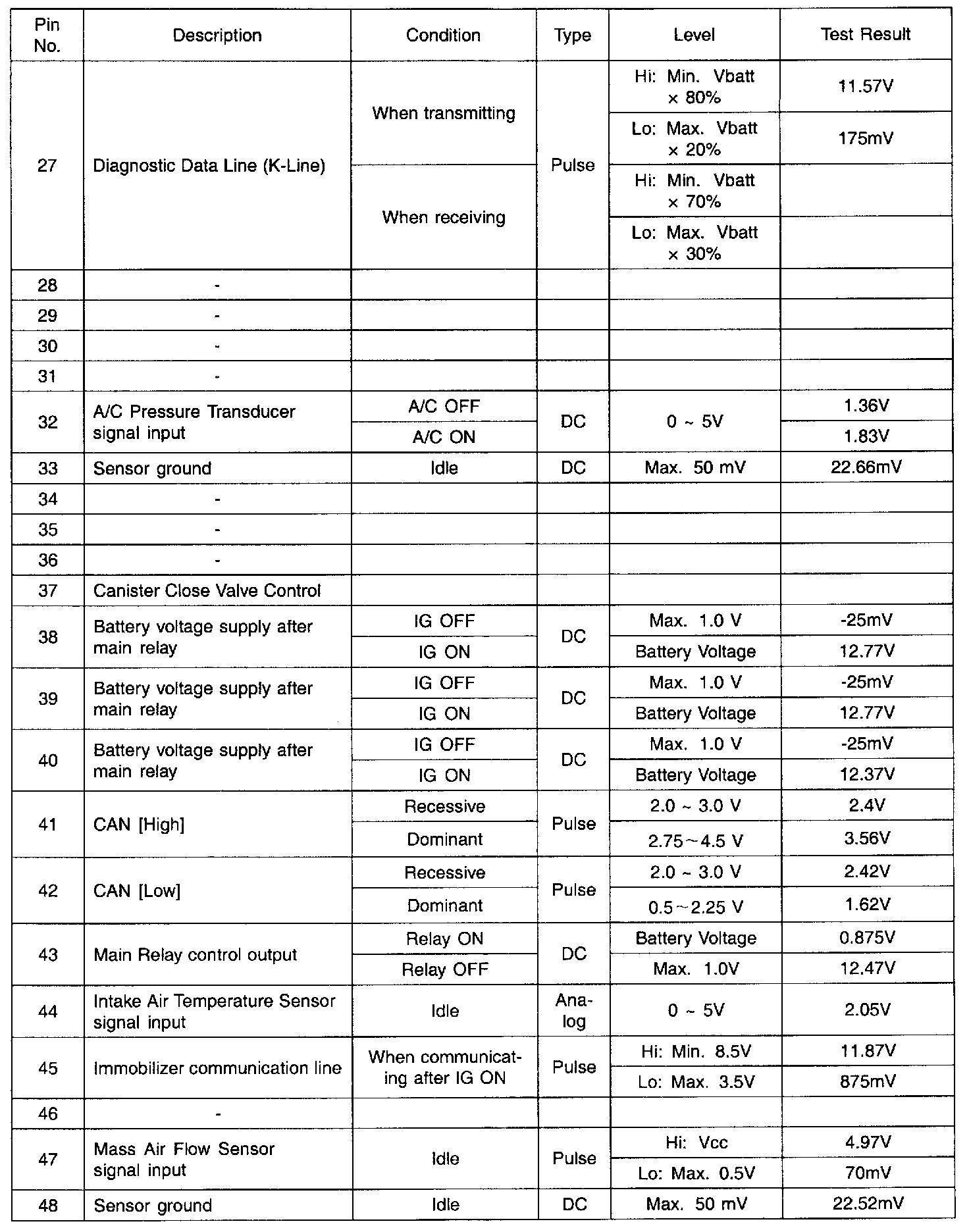

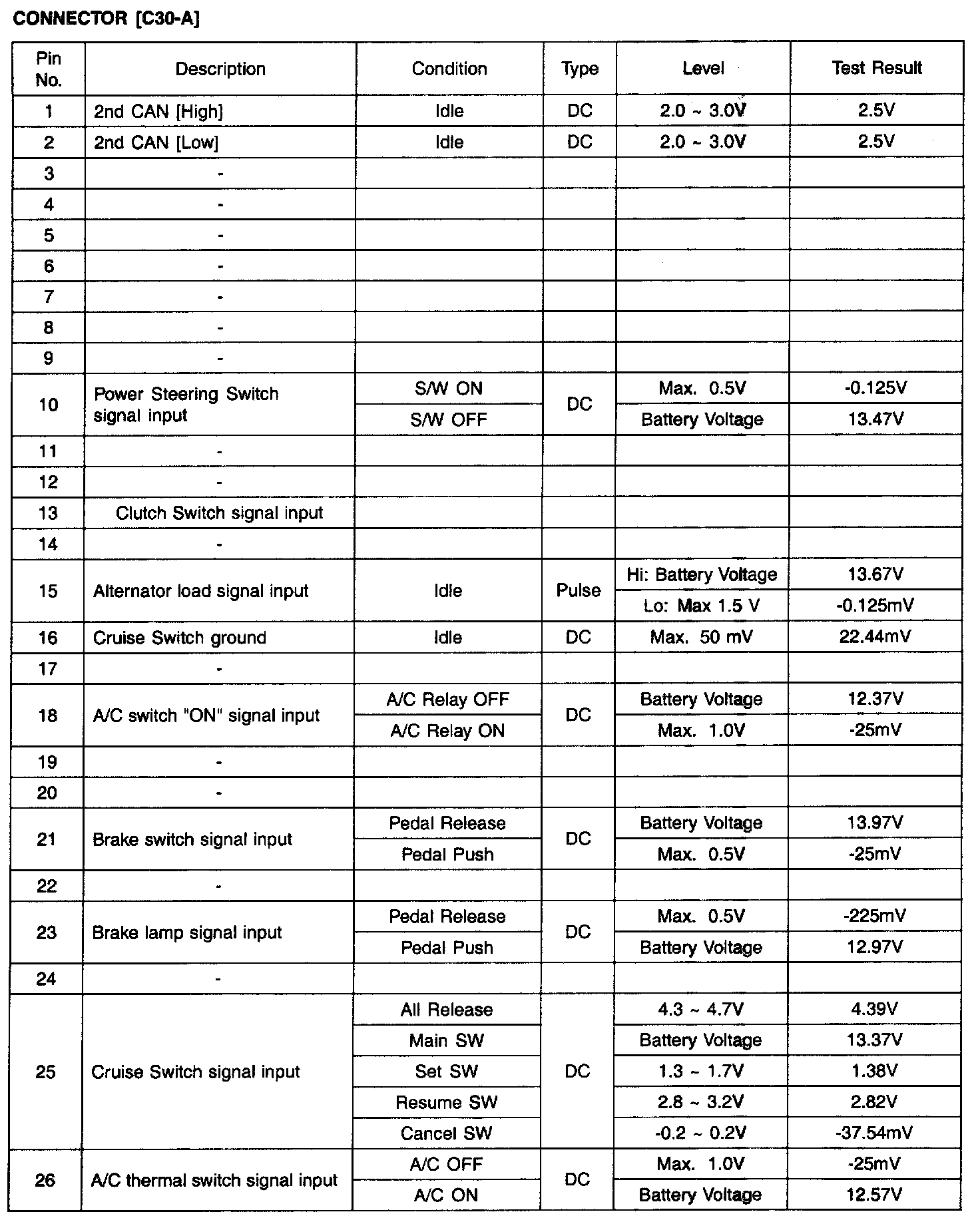

PCM Terminal Input/Output Signal - Connector (C30-A) Part 1:

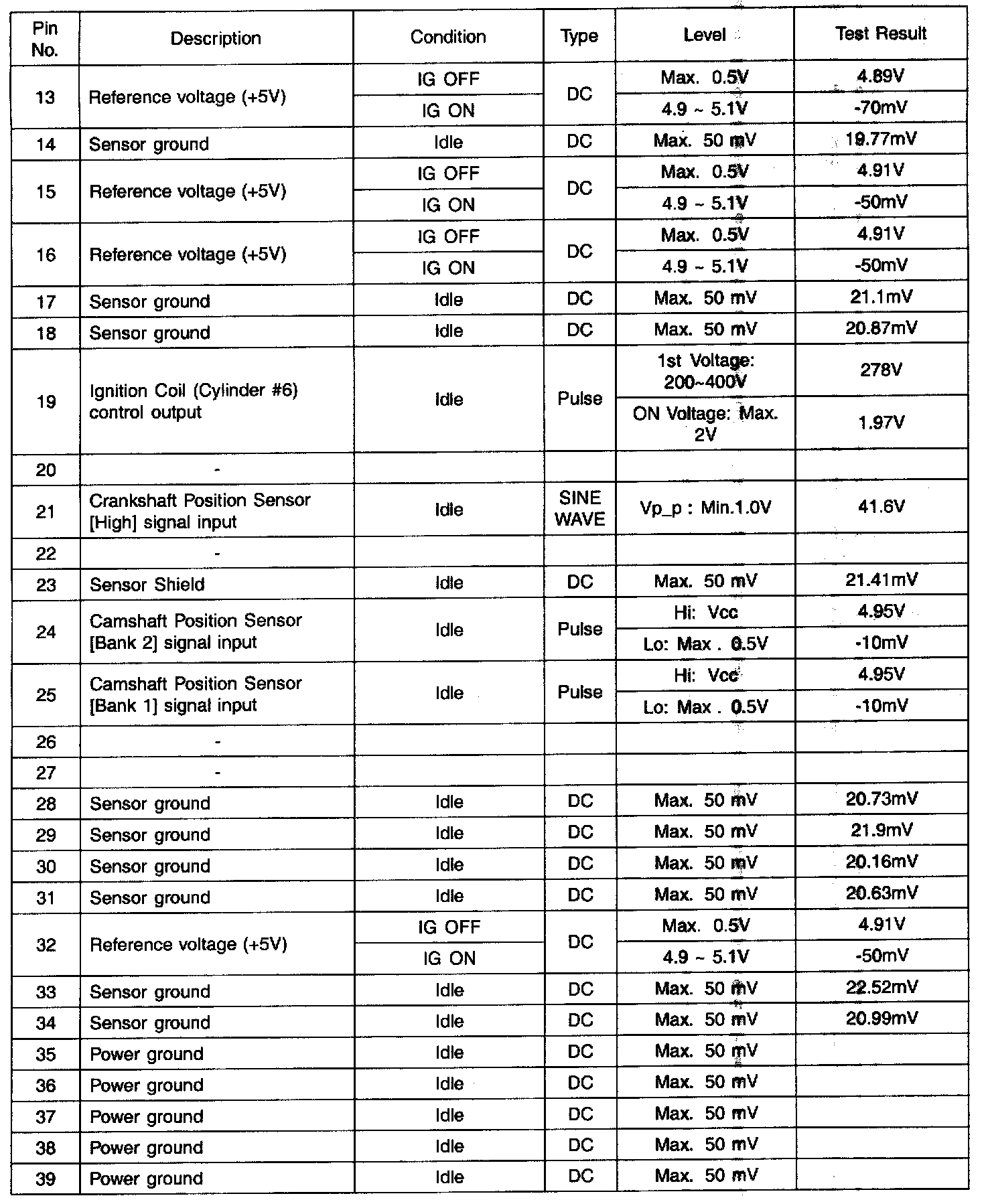

PCM Terminal Input/Output Signal - Connector (C30-A) Part 2:

PCM Terminal Input/Output Signal - Connector (C30-A) Part 3:

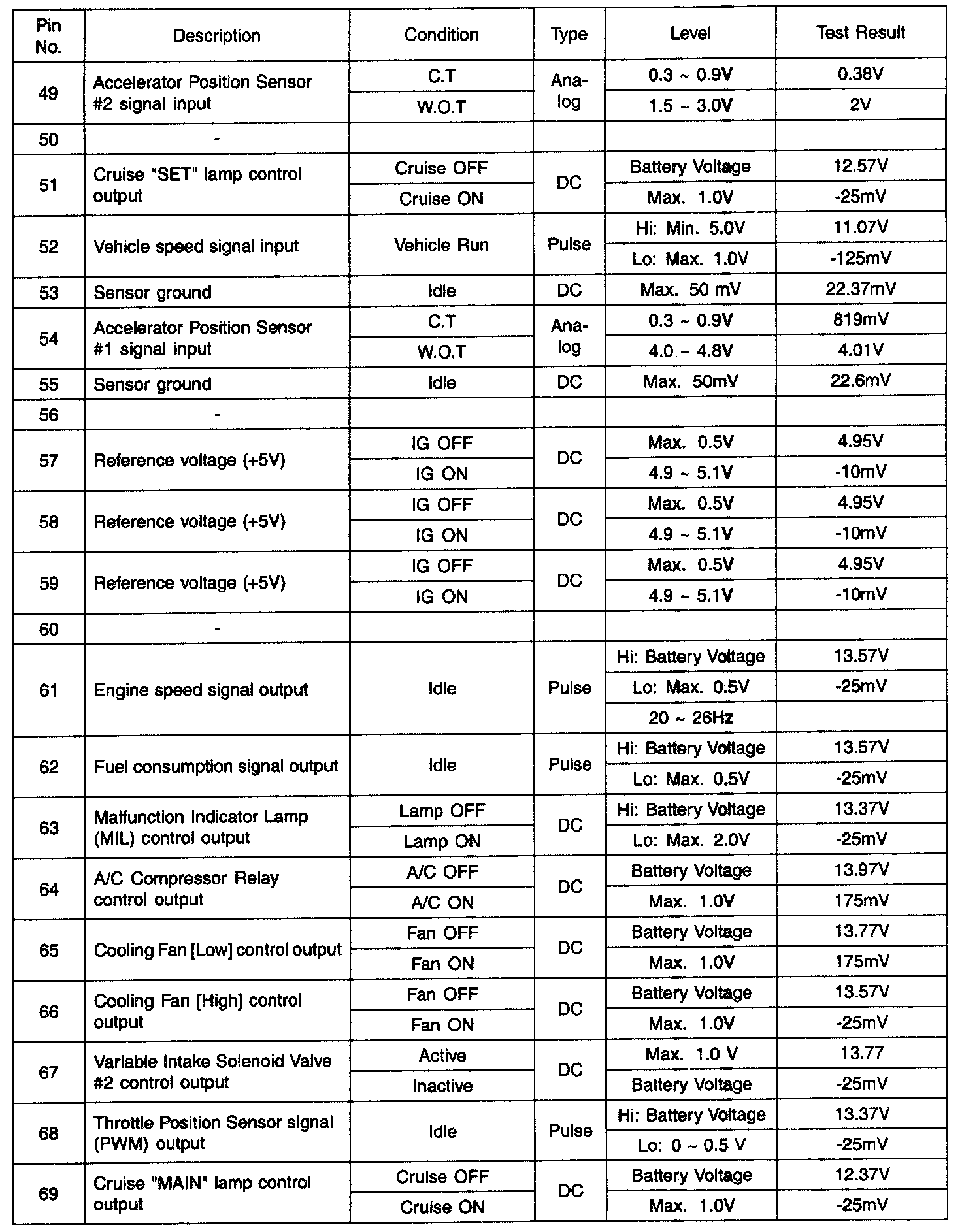

PCM Terminal Input/Output Signal - Connector (C30-A) Part 4:

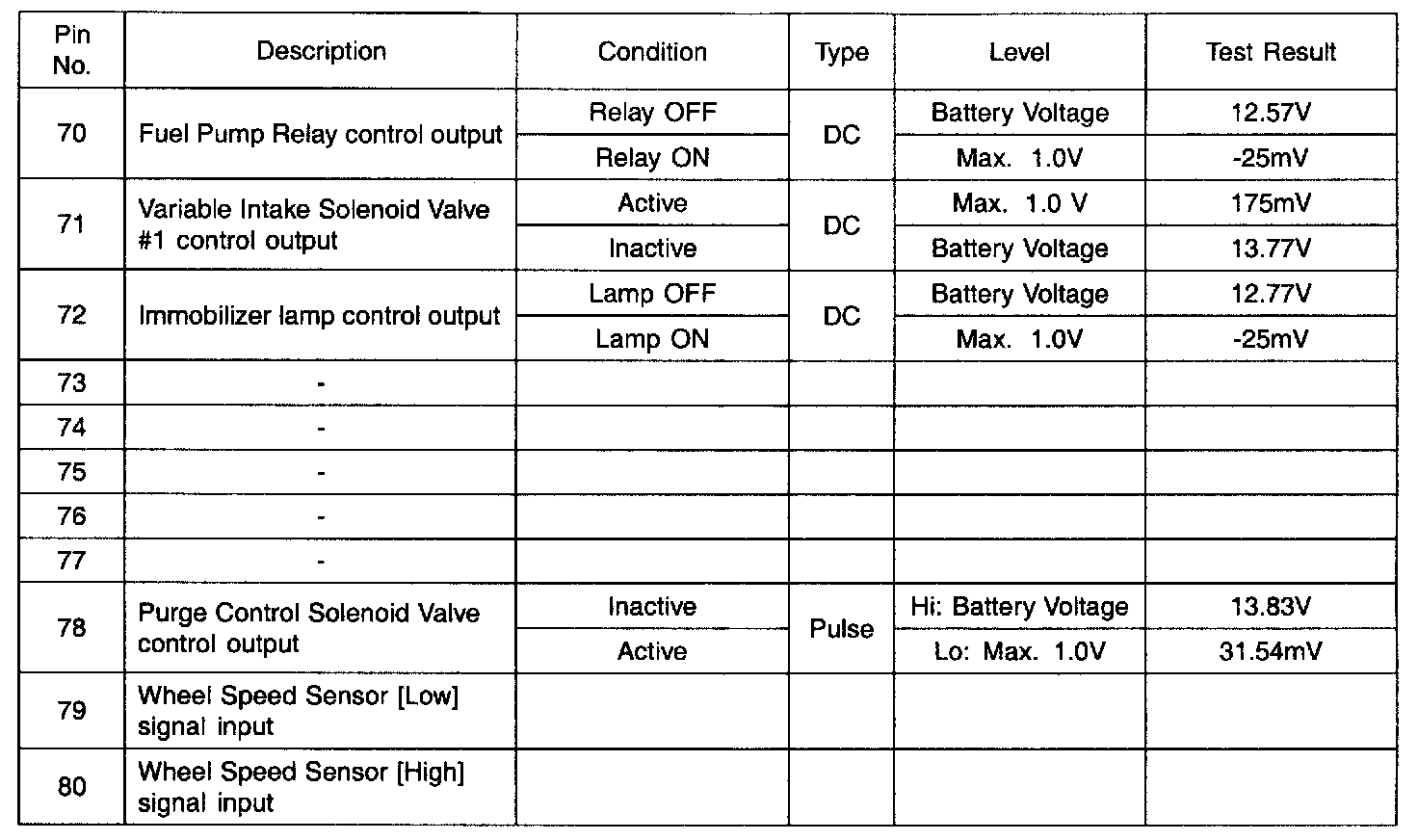

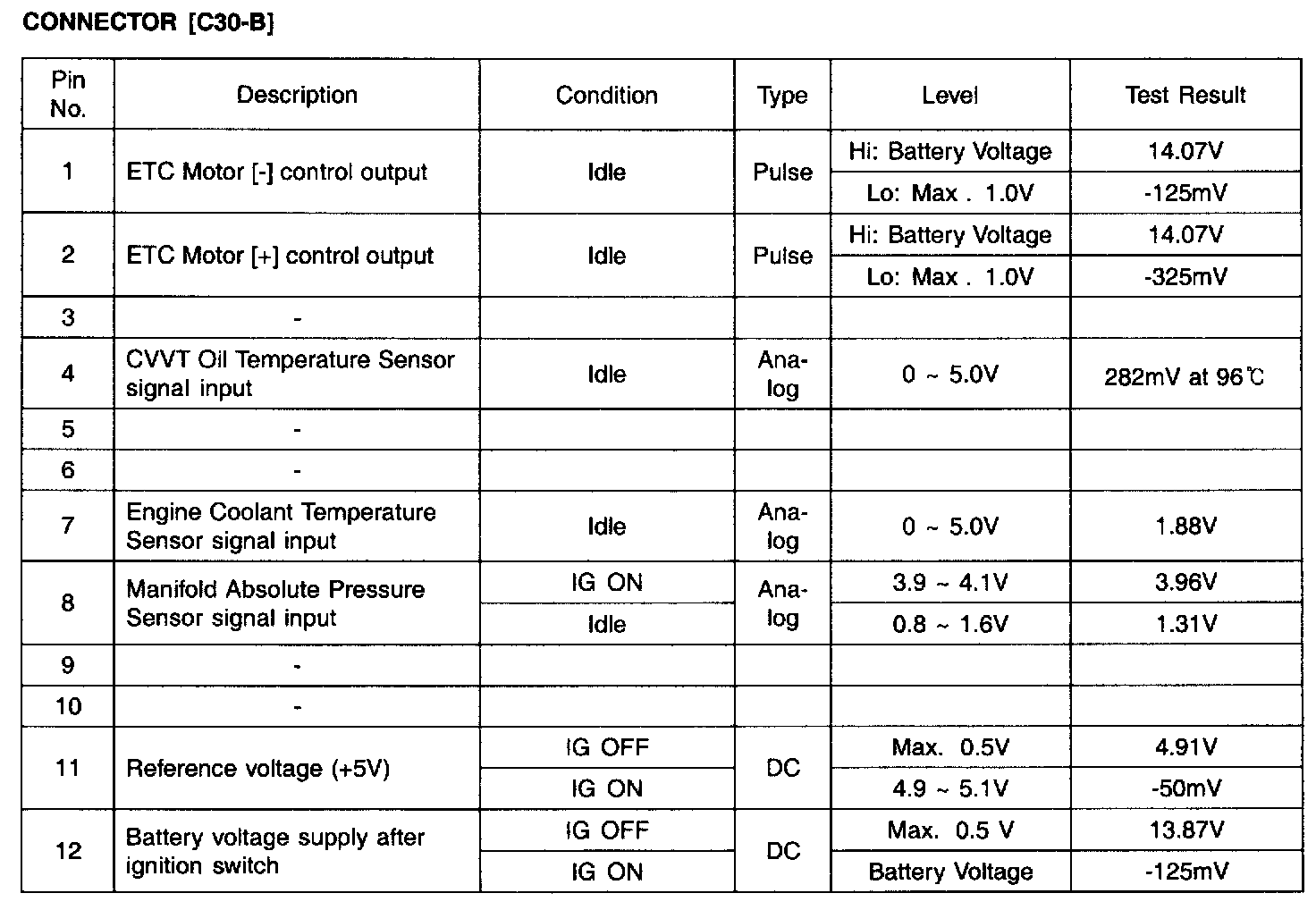

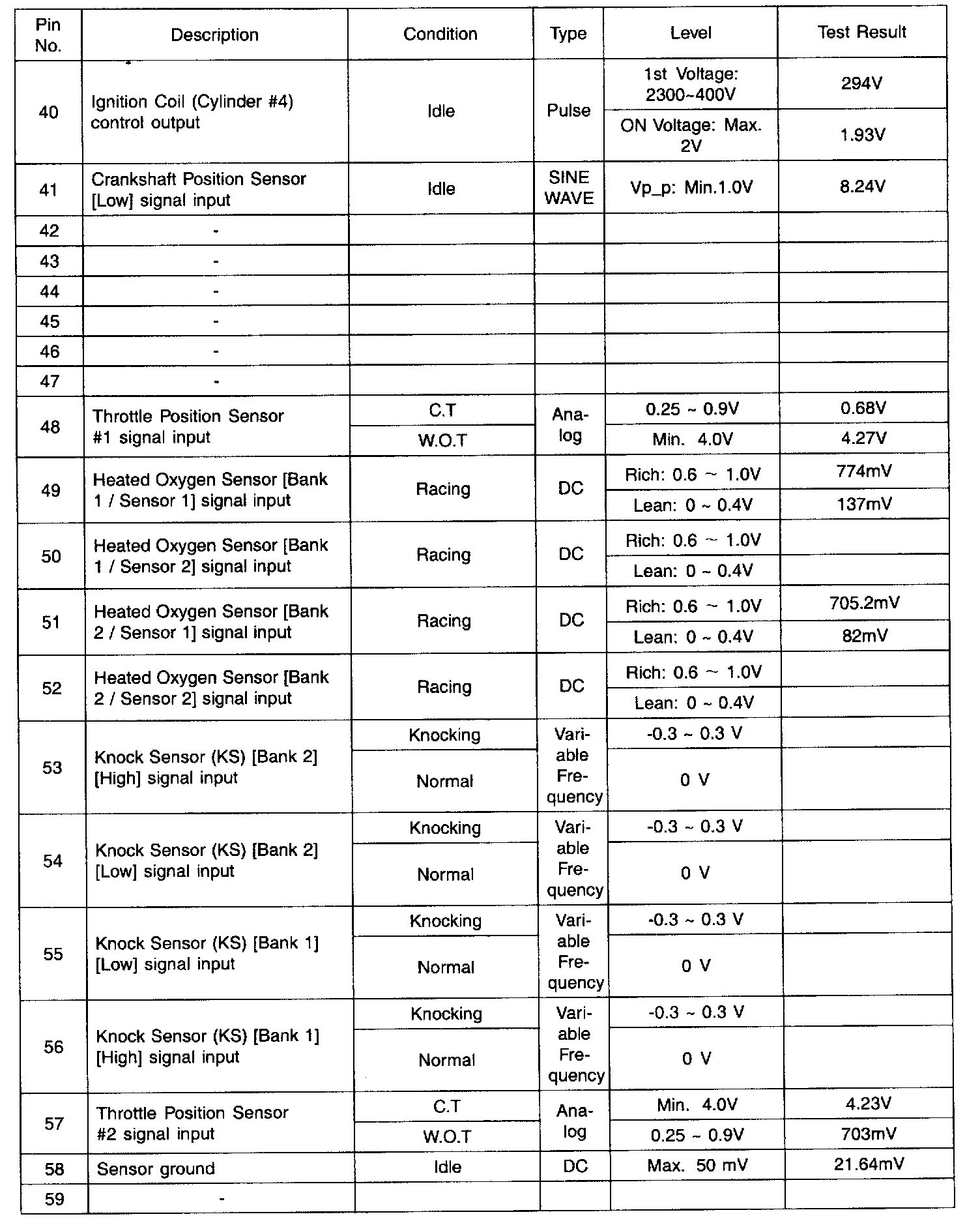

PCM Terminal Input/Output Signal - Connector (C30-B) Part 1:

PCM Terminal Input/Output Signal - Connector (C30-B) Part 2:

PCM Terminal Input/Output Signal - Connector (C30-B) Part 3:
