Oil Pan, Engine

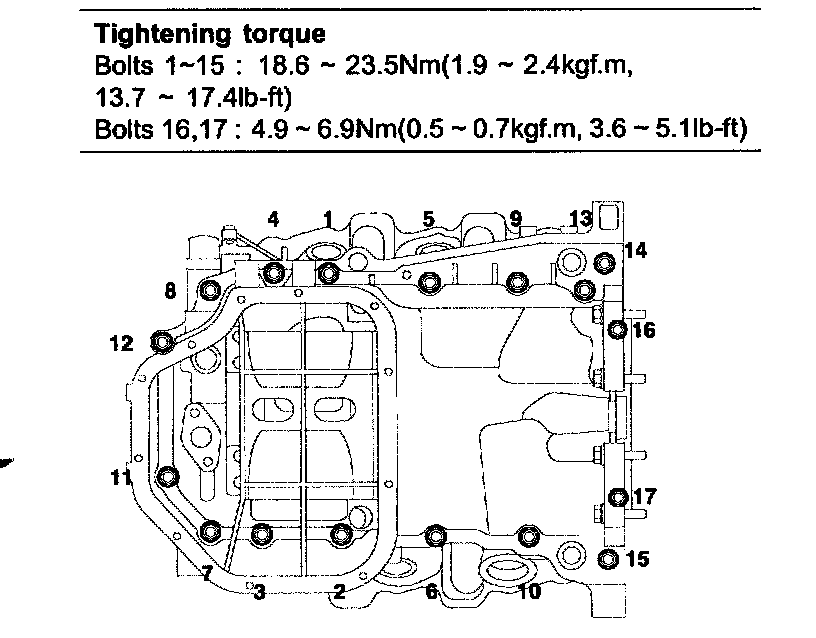

Upper oil pan bolt(8x22) 18.6-23.5 Nm (1.9-2.4 kgf.m, 13.7-17.4 ft. lbs.)
Upper oil pan bolt(163.5mm) 4.9-6.9 Nm (0.5-0.7 kgf.m, 3.6-5.1 ft. lbs.)
Upper oil pan bolt(154.5mm) 4.9-6.9 Nm (0.5-0.7 kgf.m, 3.6-5.1 ft. lbs.)
Lower oil pan bolt 9.8-11.8 Nm (1.0-1.2 kgf.m, 7.2-8.7 ft. lbs.)
