A/T - Transaxle Interchangeability

Group: TRANSAXLE

Number: 07-40-005

Date: MARCH, 2007

Model:
2007 - SANTA FE 2.7L

Subject:
AUTOMATIC TRANSAXLE INTERCHANGEABILITY

DESCRIPTION:

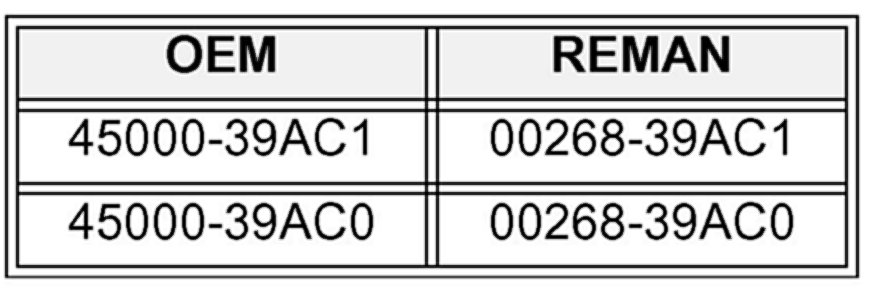

The following automatic transaxles for the 2007 - Santa Fe 2.7L are interchangeable:








The transaxles listed above are shipped without the oil filler tube extension for the dipstick. The oil filler tube from the removed transaxle must be installed on the replacement transaxle.





The transaxles are shipped with either 2 or 3 bolt holes for the front roll support bracket, P/N 45220-3A540. The bracket may be installed with 2 or 3 bolts.





PARTS INFORMATION

WARRANTY INFORMATION:

Normal warranty operation codes and times apply.
