Over-Run Clutch Assembly: Service and Repair

COUPLING ASSEMBLY

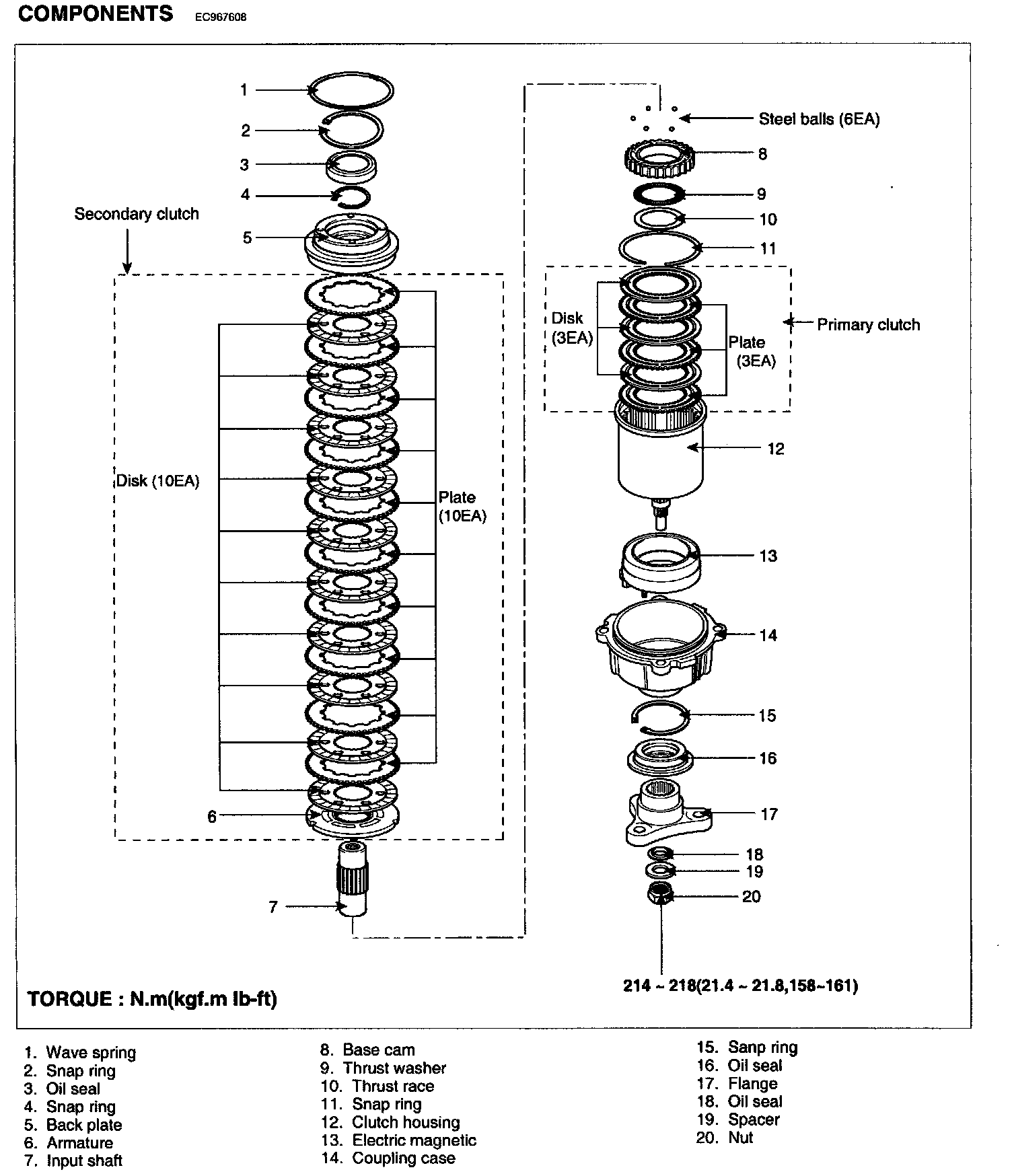

COMPONENTS:





REMOVAL

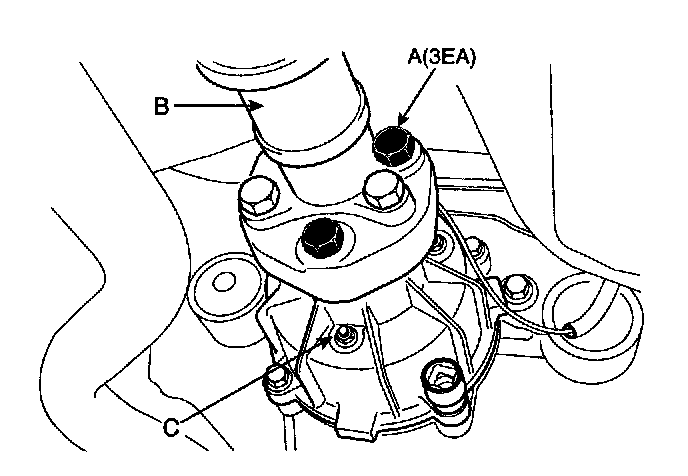

1. Remove the 4WD coupling bolts (A-3EA) mounted to the rear propeller shaft (B).

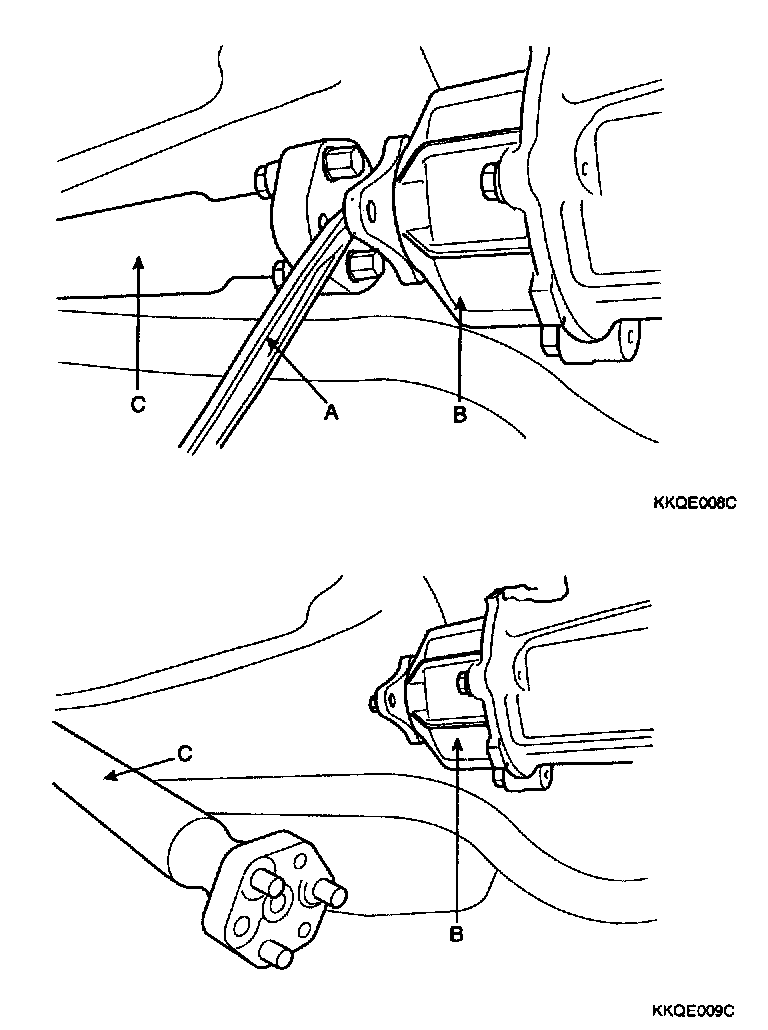

2. Using a flat tool (A), separate the propeller shaft (C) from 4WD coupling (B).

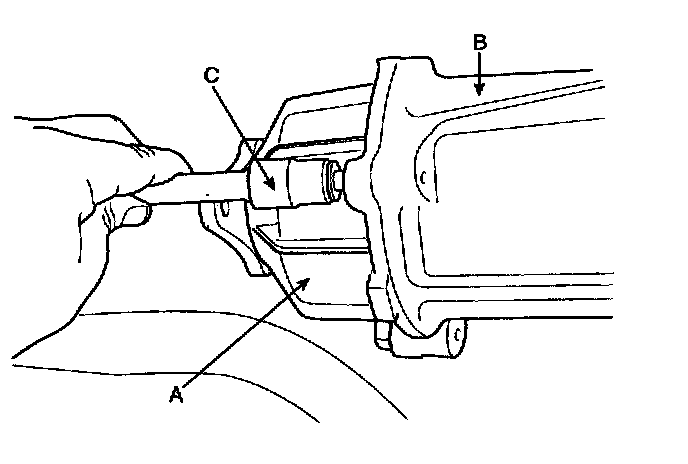

3. Remove the rear axle (B-Differential carrier) bolts mounted to the 4WD coupling (A) by a socket (C).

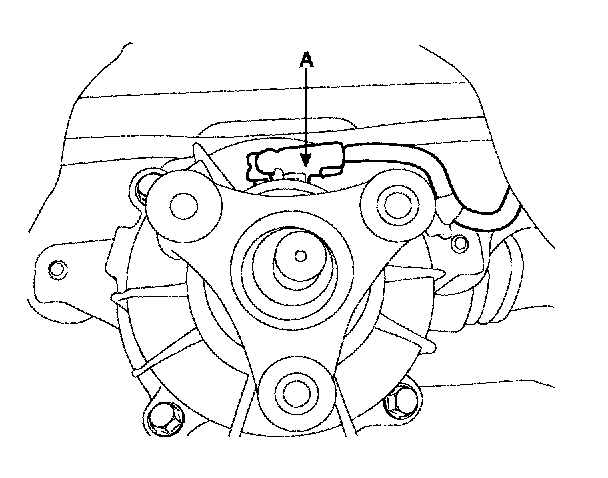

4. Remove the electric magnetic clutch connector (A).

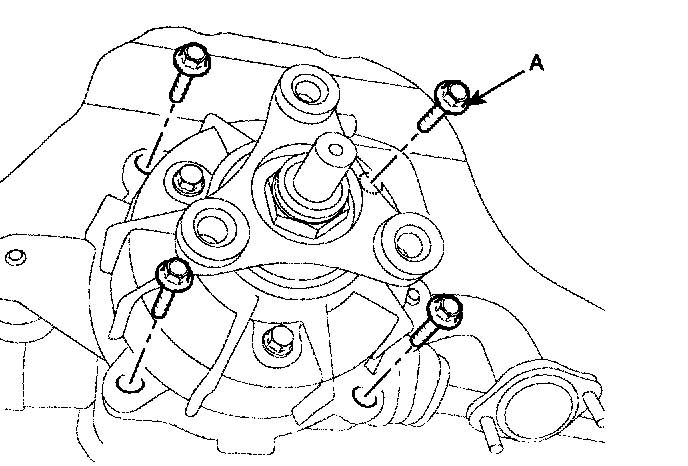

5. Remove the 4WD coupling assembly mounting bolts (A-4ea).

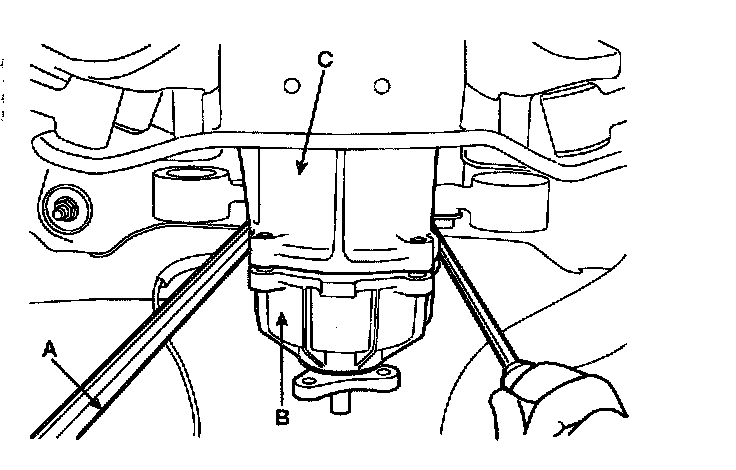

6. Using a flat tool (A), separate the 4WD coupling assembly (B) from the rear differential carrier (C).





7. Remove the 4WD coupling assembly (A).

INSTALLATION
Installation is the reverse of the removal.
