Power Flow Mechanism

TRANSFER CASE ASSEMBLY

POWER FLOW MECHANISM
^ Normal driving situation: 2WD base driving
^ 4WD driving in driving situations (rapid activation, cornering etc..)

1. Input the information from each sensor in vehicle
- Input torque (Throttle position sensor)
- Cornering situation (Steering angle sensor)
- Vehicle speed and different wheel speed front & rear (Wheel speed sensor)
- Braking situation (Brake signal and ABS signal)

2. Distributed the required driving force after 4WD ECU operates.

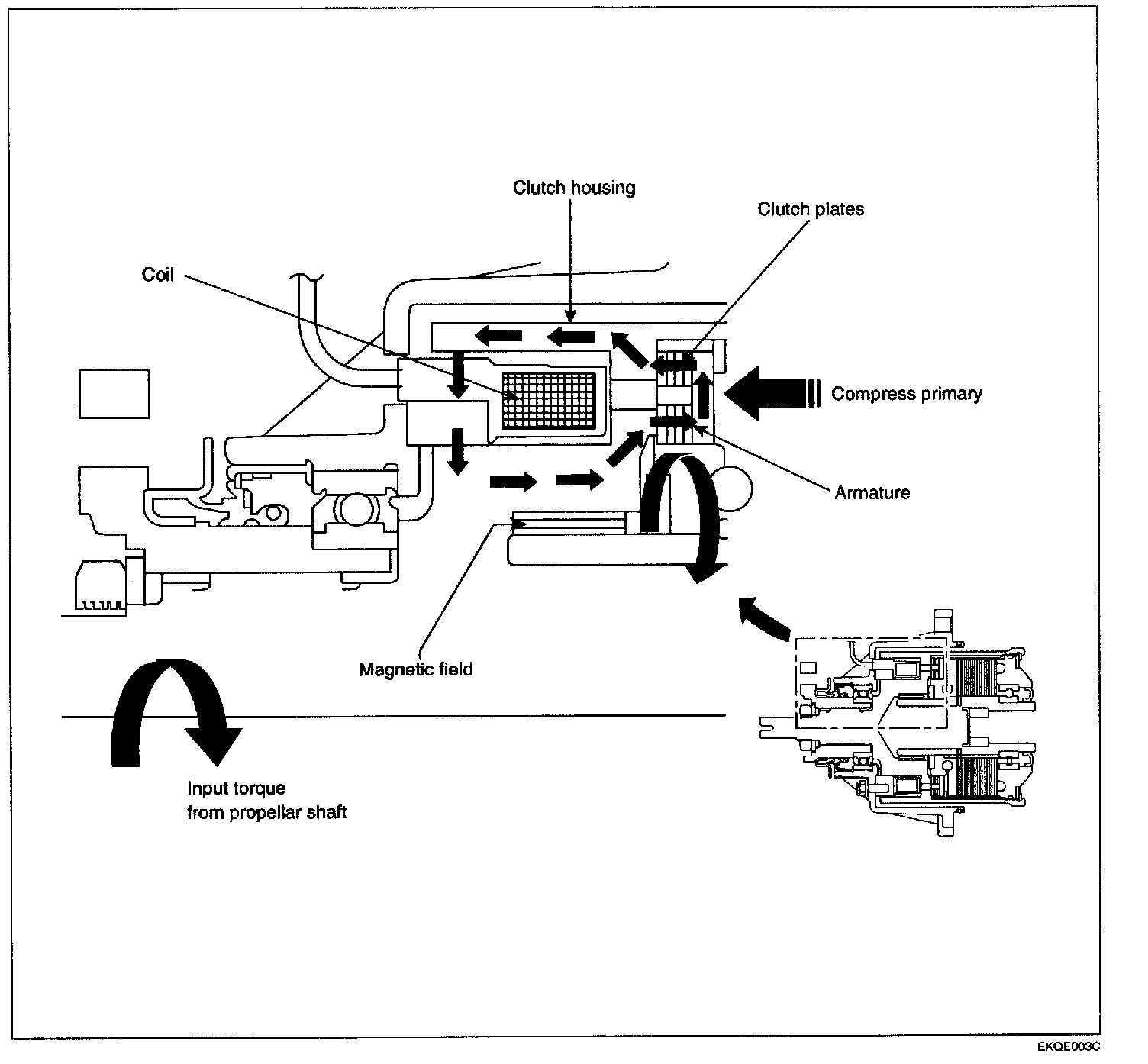

3. EMC (Electric Magnetic Clutch) operates the primary clutch.

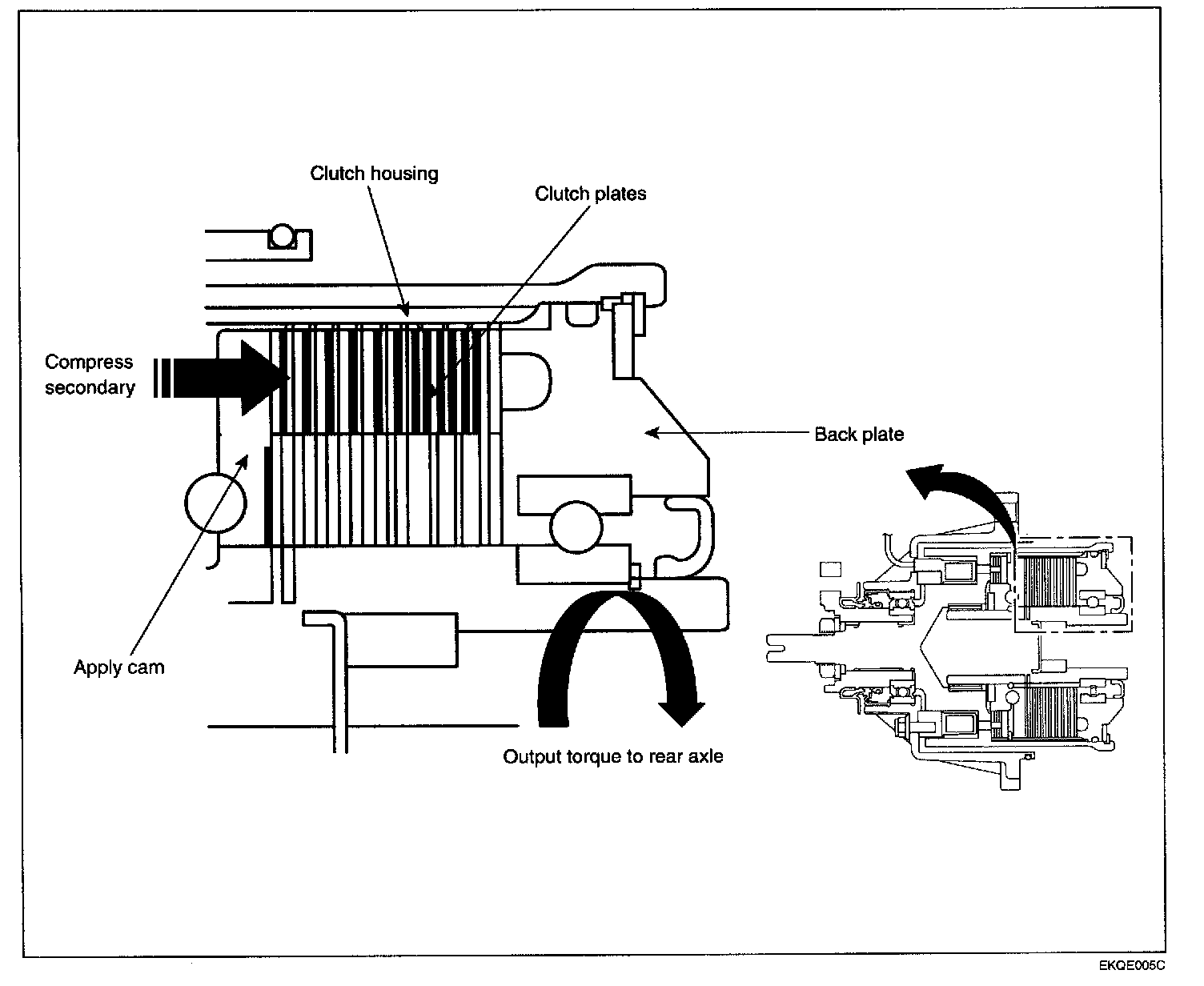

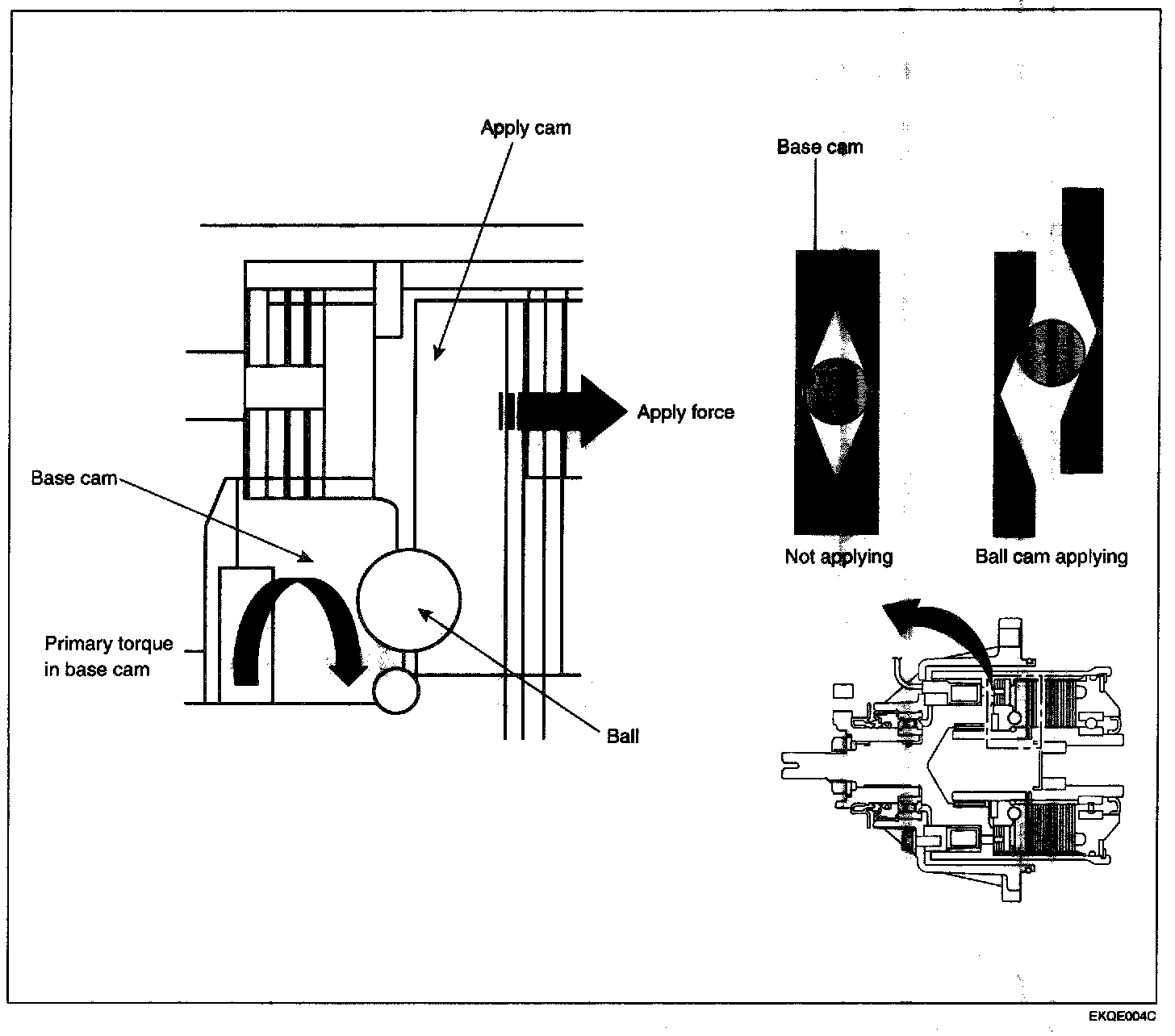

4. Control the cam's opening gap by operation of primary clutch.





5. Control the slip of inner & outer plate.

Control variably the driving force distribution to optimize front & rear driving force.
