Windshield Washer Motor: Service and Repair

FRONT WASHER MOTOR

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper cover.

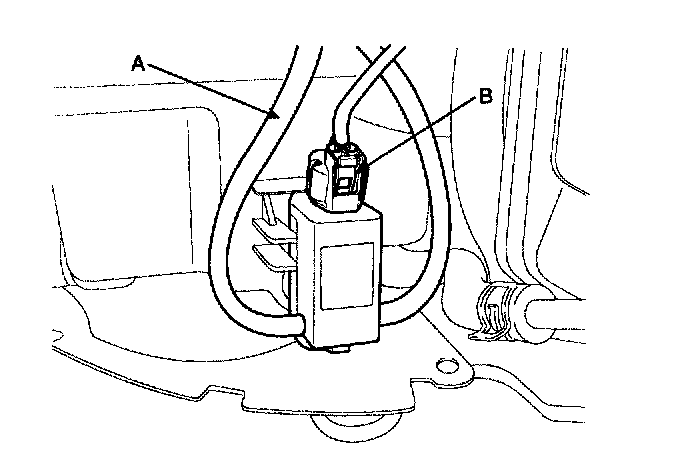

3. Remove the washer hose (A) and the washer motor connector (B).

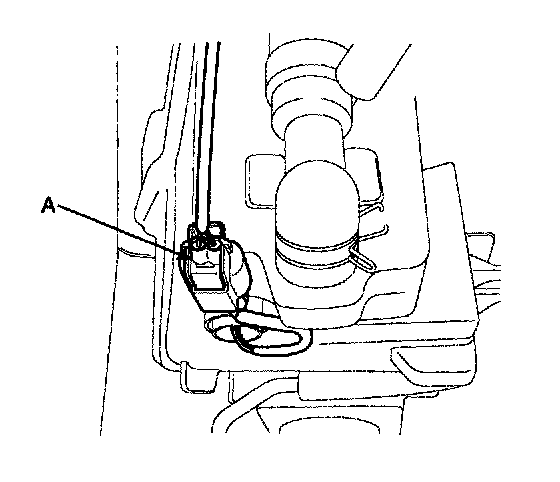

4. Disconnect the washer fluid level sensor switch connector (A).




5. Remove the washer reservoir after removing 3 bolts.
6. Installation is the reverse of removal.
