Evaporator Temperature Sensor / Switch: Service and Repair

EVAPORATOR TEMPERATURE SENSOR

REPLACEMENT
1. Disconnect the negative (-) battery terminal.




2. Remove the center lower side cover.

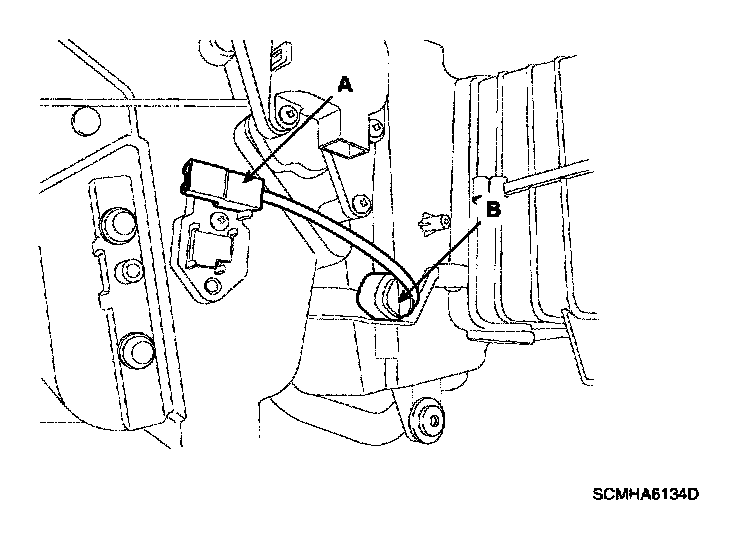

3. Disconnect the evaporator sensor connector (A).




4. Remove the evaporator temperature sensor (B), by pulling it after rotating 90° in a counterclockwise direction.

CAUTION: Take care that evaporator core pins are not bent.

5. Installation is the reverse order of removal.
