Intake Manifold: Service and Repair

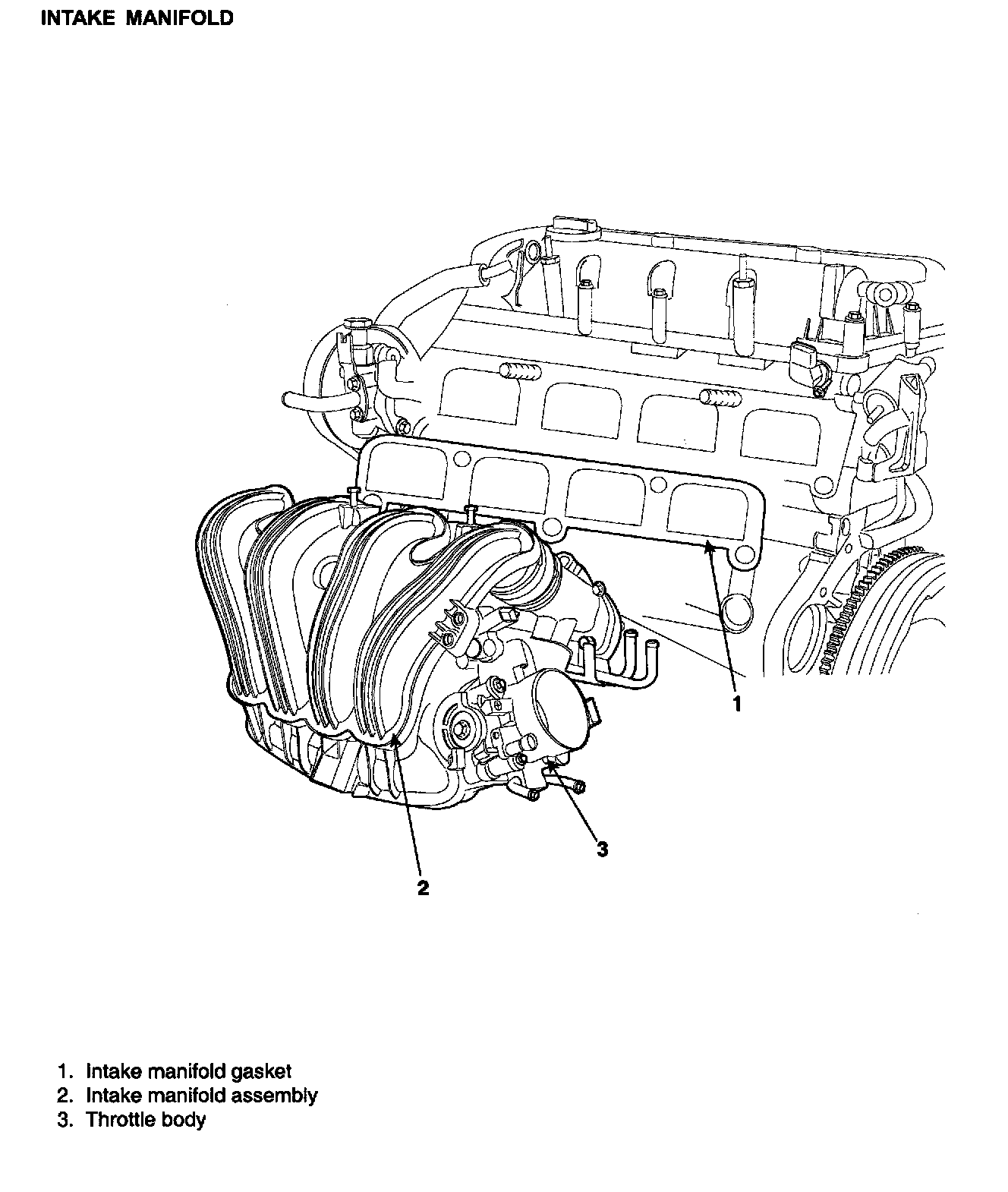

INTAKE MANIFOLDINTAKE MANIFOLD:
REMOVAL
1. Remove the engine cover.

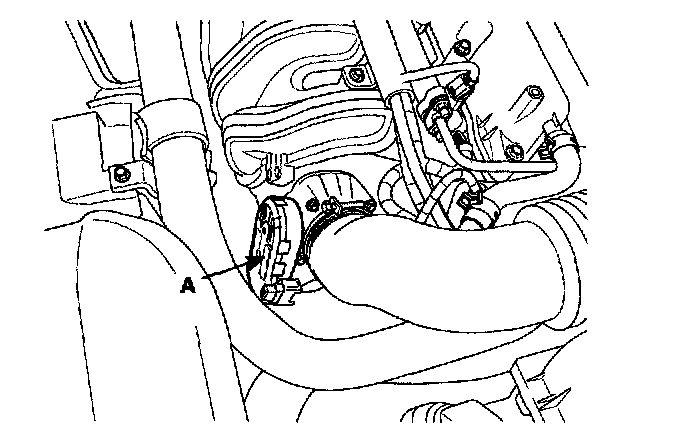

2. Disconnect ETS connector (A)
3. Disconnect CMP connector (A), and knock sensor connector (B).

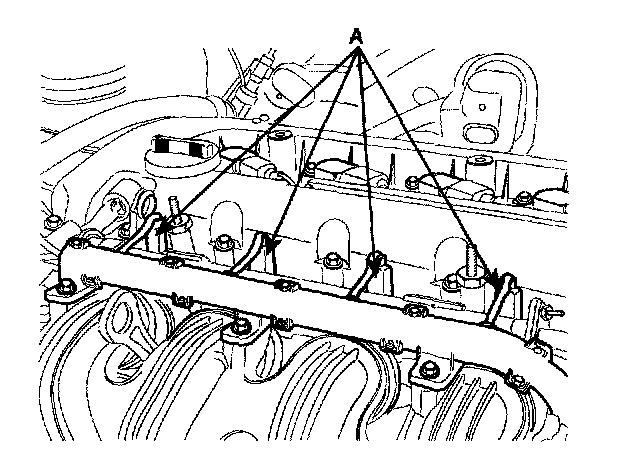

4. Disconnect injector connector (A).

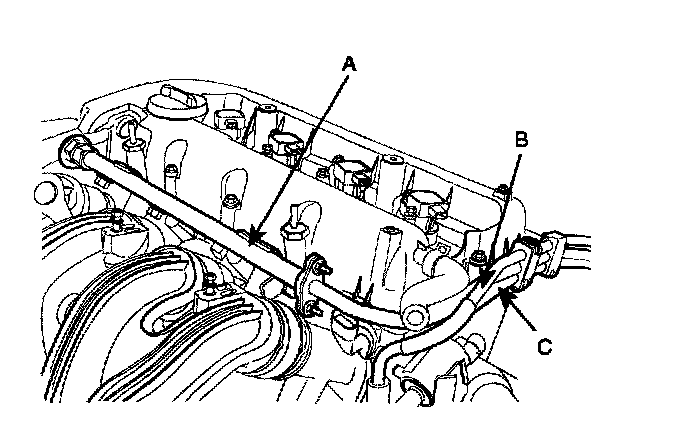

5. Remove the delivery pipe (A), brake vacuum hose (B), and PCSV hose (C).

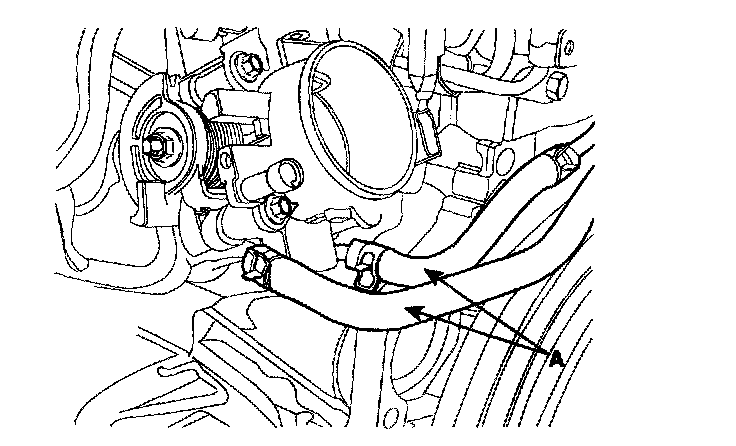

6. Remove coolant hose (A) from throttle body.

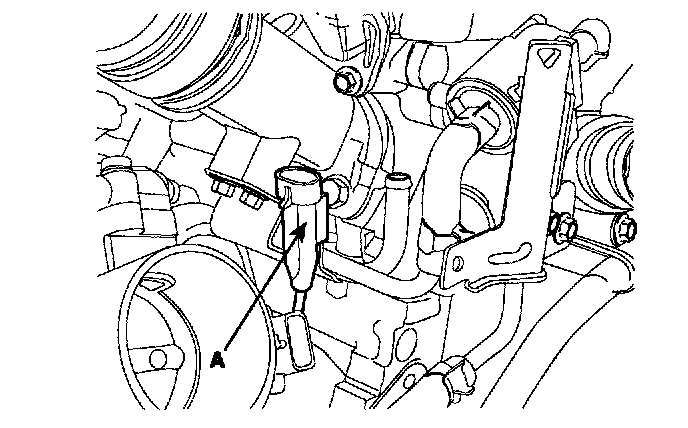

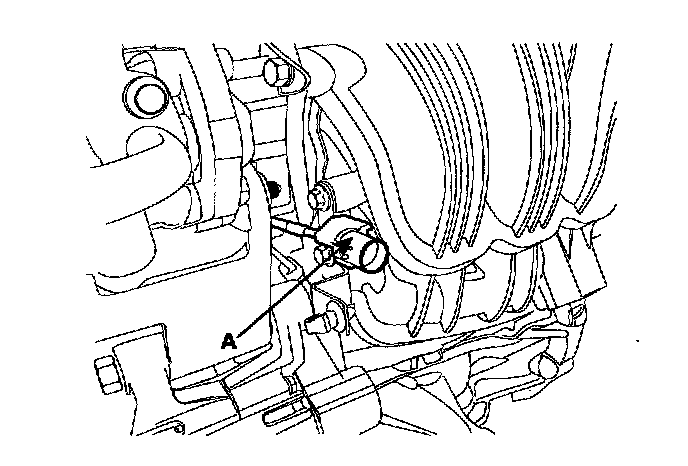

7. Remove oil pressure switch connector (A) from bracket.
8. Remove knock sensor connector (A) from bracket.

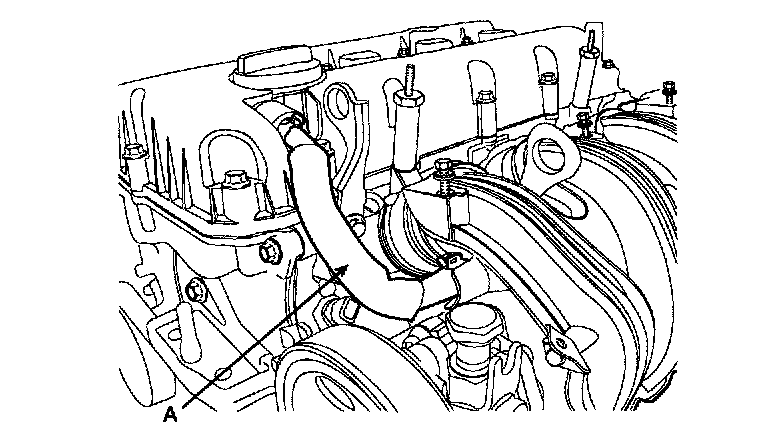

9. Remove PCV hose (A).
10. Remove oil level gauge.

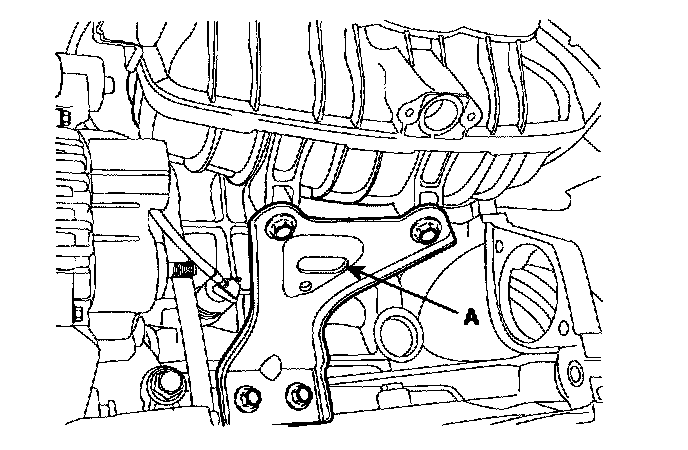

11. Remove intake manifold stay (A).

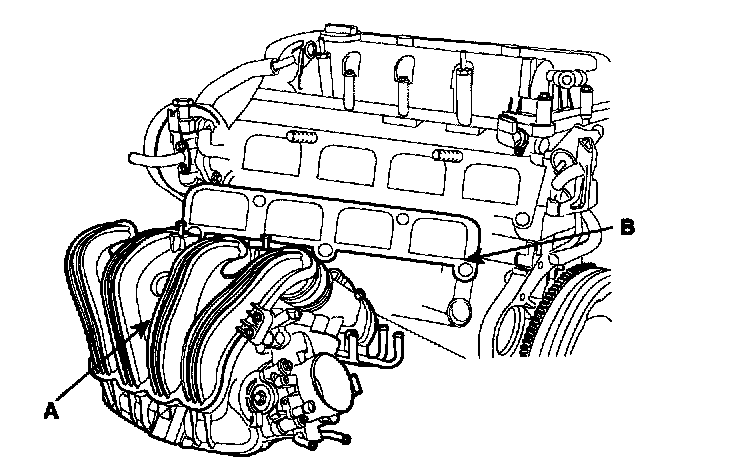

12. Remove intake manifold (A) and gasket (B).
INSTALLATION
1. Install intake manifold.
Tightening torque 18.62 - 27.44 Nm (1.9 - 2.8 kgf.m, 13.7 - 20.2 ft. lbs.)
2. Install intake manifold stay.
Tightening torque 18.6 - 27.44 Nm (1.9 - 2.8 kgf.m, 13.7 - 20.2 ft. lbs.)
3. Install oil level gauge
4. Install PCV hose
5. Install air cleaner assembly
6. Install engine cover.
