Crankshaft Main Bearing

Crankshaft Bearing Codes

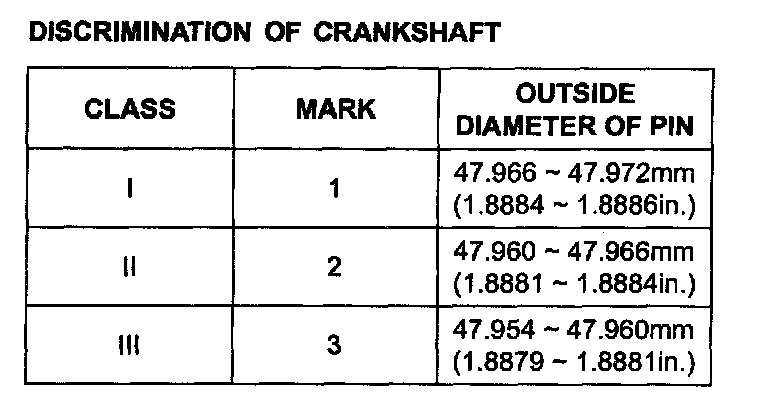

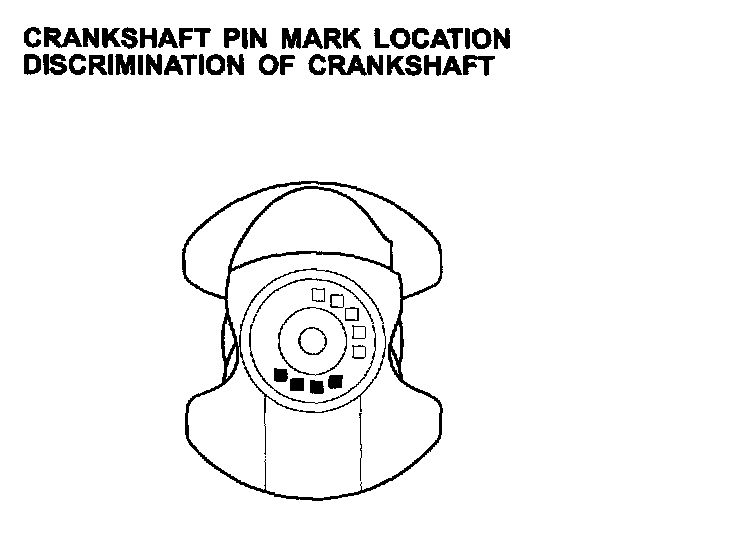

CRANKSHAFT PIN MARK LOCATION DISCRIMINATION OF CRANKSHAFT:

DISCRIMINATION OF CRANKSHAFT:

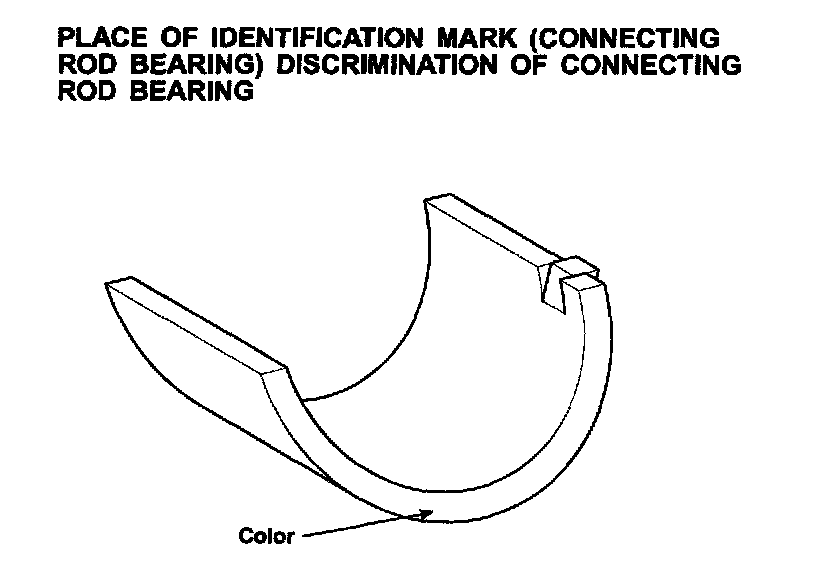

PLACE OF IDENTIFICATION MARK (CONNECTING ROD BEARING) DISCRIMINATION OF CONNECTING ROD BEARING:

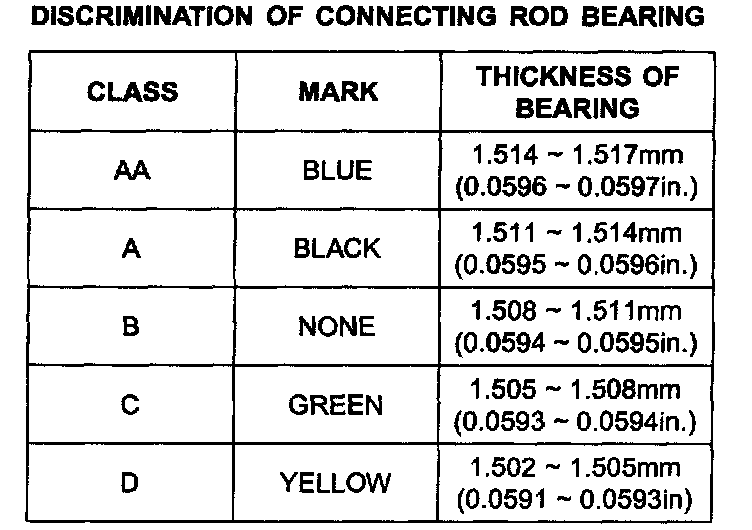

DISCRIMINATION OF CONNECTING ROD BEARING:

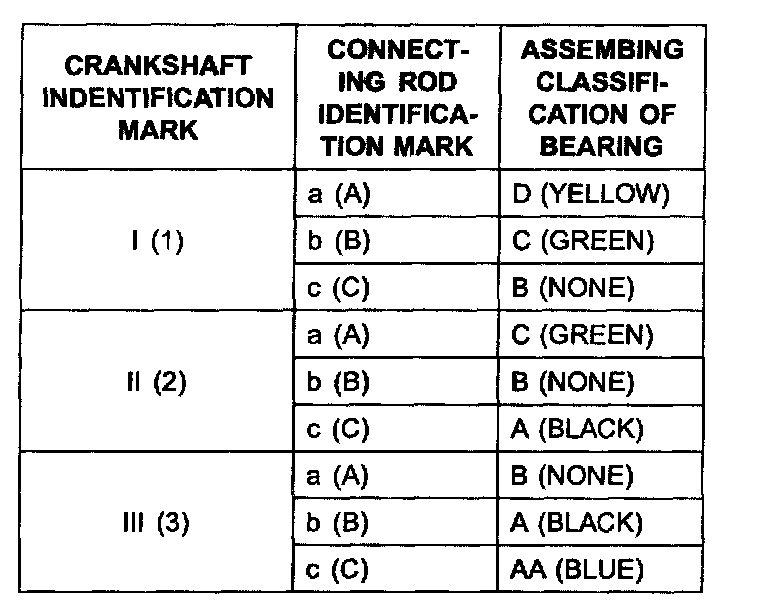

11) Selection:

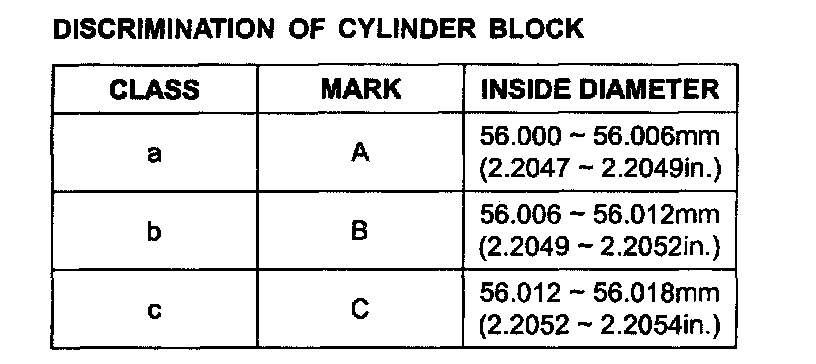

DISCRIMINATION OF CYLINDER BLOCK:

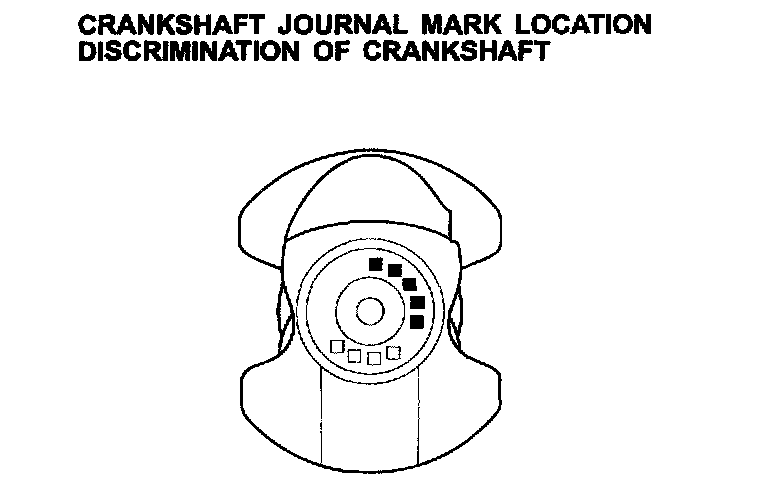

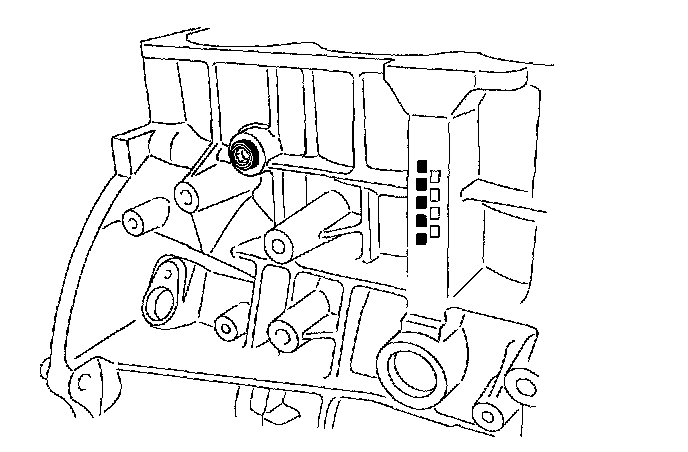

CRANKSHAFT JOURNAL MARK LOCATION DISCRIMINATION OF CRANKSHAFT:

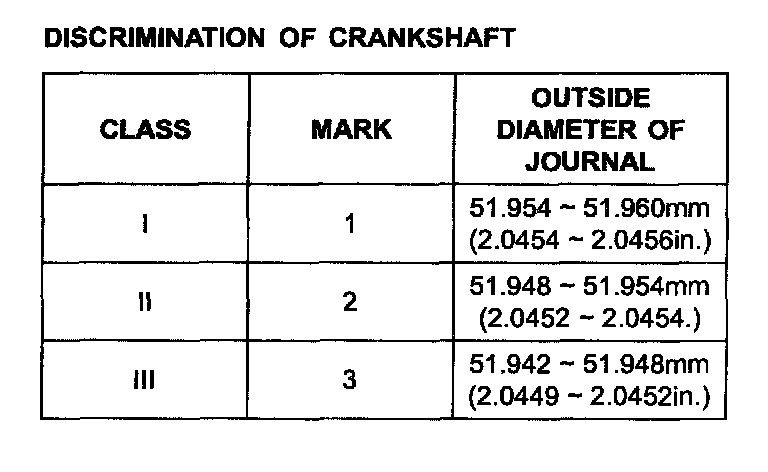

DISCRIMINATION OF CRANKSHAFT:

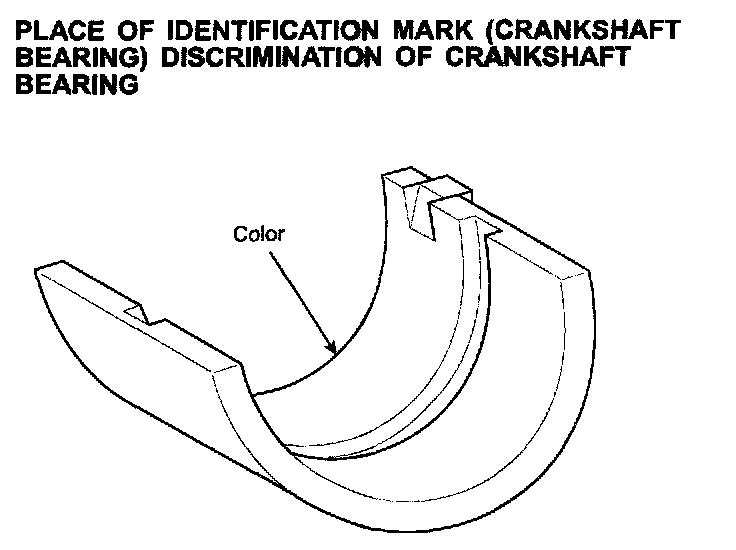

PLACE OF IDENTIFICATION MARK (CRANKSHAFT BEARING) DISCRIMINATION OF CRANKSHAFT BEARING:

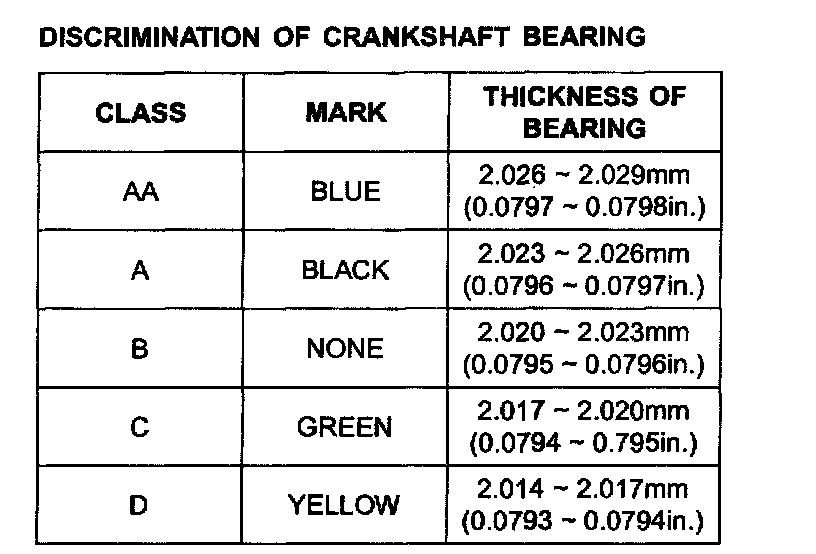

DISCRIMINATION OF CRANKSHAFT BEARING:

Crankshaft main bearing oil clearance 0.026 - 0.048 mm (0.0010 - 0.0019 inch)

Crankshaft Main Bearing Cap Bolts

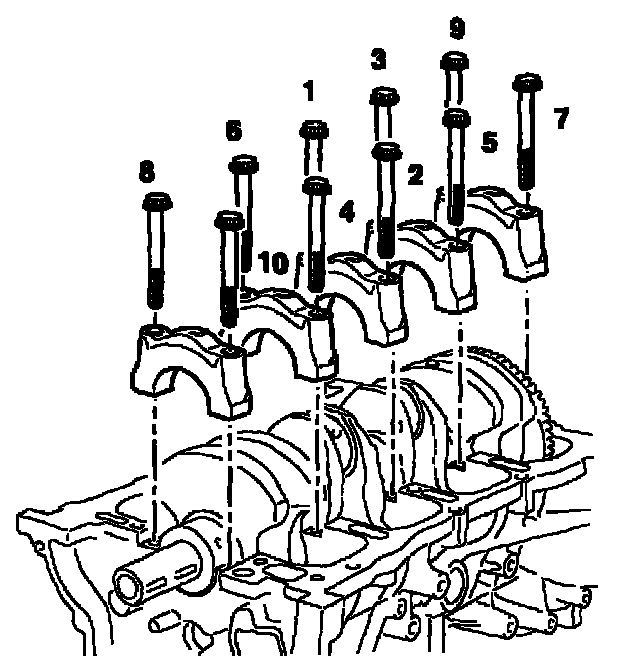

Installation Sequence:

Always use new main bearing cap bolts.

First pass 26.46 Nm (2.7 kgf.m, 19.52 ft. lbs)
Final pass Tighten 45°
