Stability Control System - New Module/Wiring Info.
Group: CHASSISNumber: 06-50-007
Date: JULY, 2006
Model:
2007 SONATA
Subject
NEW ESC MODULE AND WIRING INFORMATION FOR 2007 MODEL YEAR SONATA
DESCRIPTION:

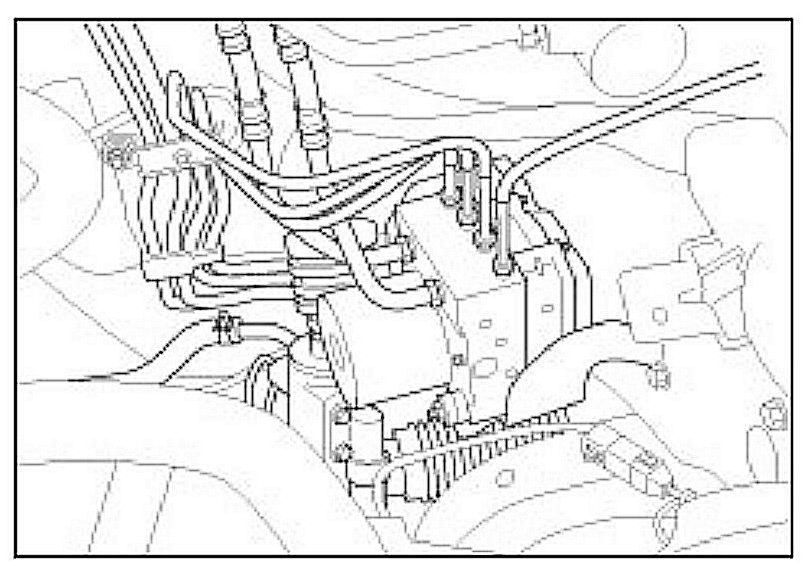

On 2007 Sonata vehicles, a new ESC (Electronic Stability Control) module has been installed in production since April 4, 2006 to reduce module motor noise.
As a result, the ESC wiring circuit has also been changed. This TSB provides part information about the ESC module and the changed connector configuration relating to the ESC system. Please refer to the attached circuit diagram if servicing the ESC system.
VEHICLES AFFECTED:
1. Model: 2007 Sonata (NF)
2. Effective vehicle production date: Produced from April 4, 2006
3. Area: All

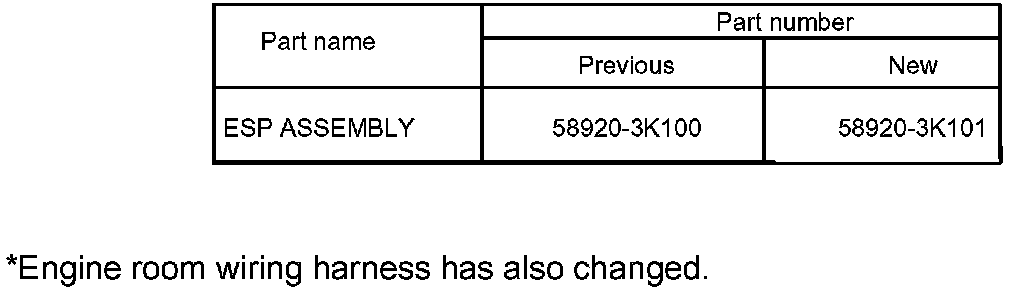

PARTS INFORMATION
SERVICE INFORMATION:
Information about the changed ESC system wiring diagram in the E.T.M. (Electrical Troubleshooting Manual)

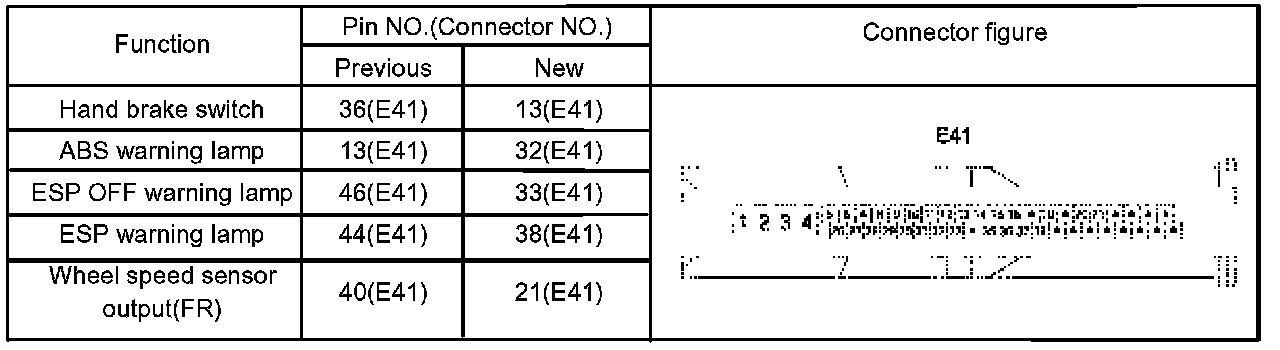

1. Changed ESC module wiring circuit in the E.T.M.

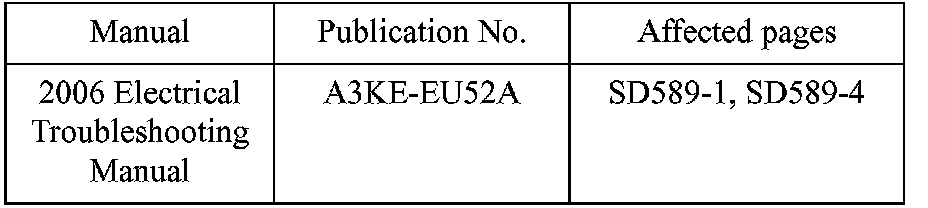

2. Affected E.T.M. (Electrical Troubleshooting Manual).
