Front Brake Pad Check

FRONT BRAKE PAD CHECK

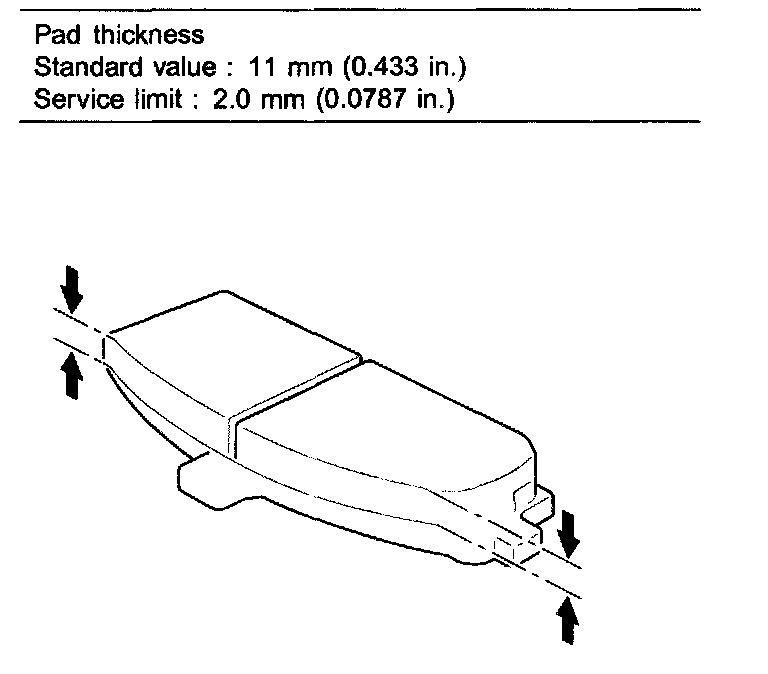

1. Check the pad wear. Measure the pad thickness and replace it, if it is less than the specified value.
Pad thickness
Standard value: 11 mm (0.433 inch)
Service limit: 2.0 mm (0.0787 inch)
2. Check that grease is applied, and the pad and backing metal for damage.
