Installation

FRONT LOWER ARM

INSTALLATION





1. Install the lower arm mounting bolts (A).
Tightening torque
A bushing: 100 - 120 Nm (1000 - 1200 kgf-cm, 73.8 - 88.5 ft. lbs.)
G bushing: 140 - 160 Nm (1400 - 1600 kgf-cm, 103.3 - 118.0 ft. lbs.)

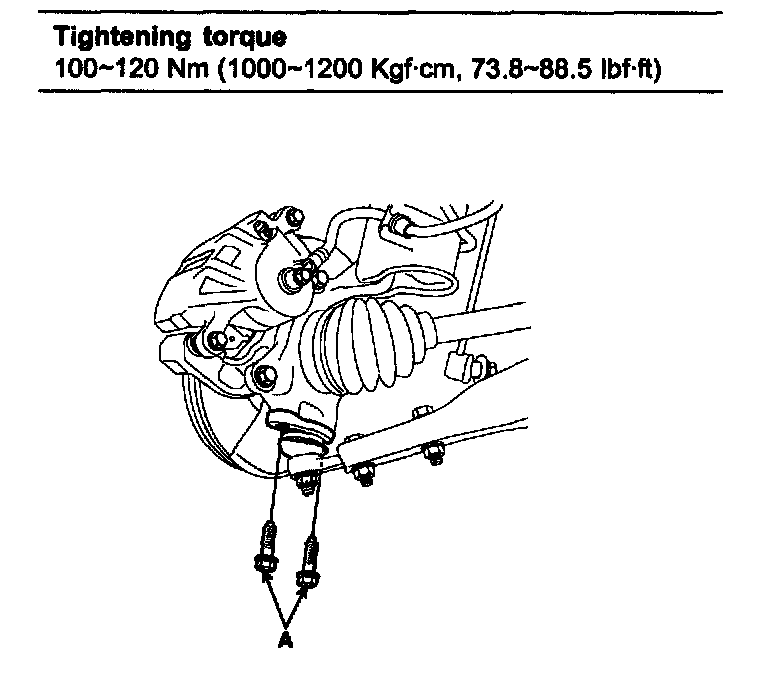

2. Install the lower arm ball joint mounting bolts (A).
Tightening torque 100 - 120 Nm (1000 - 1200 kgf-cm, 73.8 - 88.5 ft. lbs.)

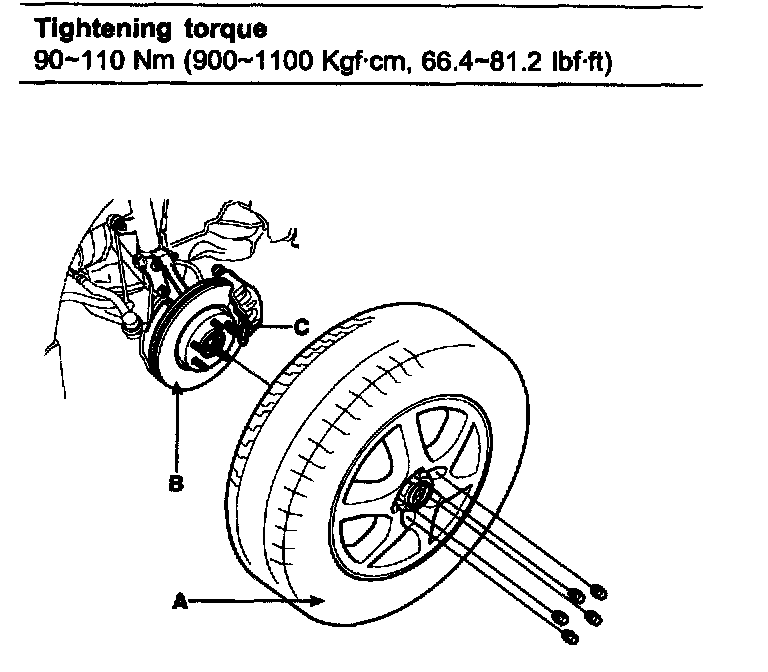

3. Install the front wheel and tire (A) on the front hub (B).
Tightening torque 90 - 110 Nm (900 - 1100 kgf-cm, 66.4 - 81.2 ft. lbs.)

CAUTION: Be careful not to damage the hub bolts (c) when installing the front wheel and tire (A).
