Air Flow Description

AIR FLOW DESCRIPTION

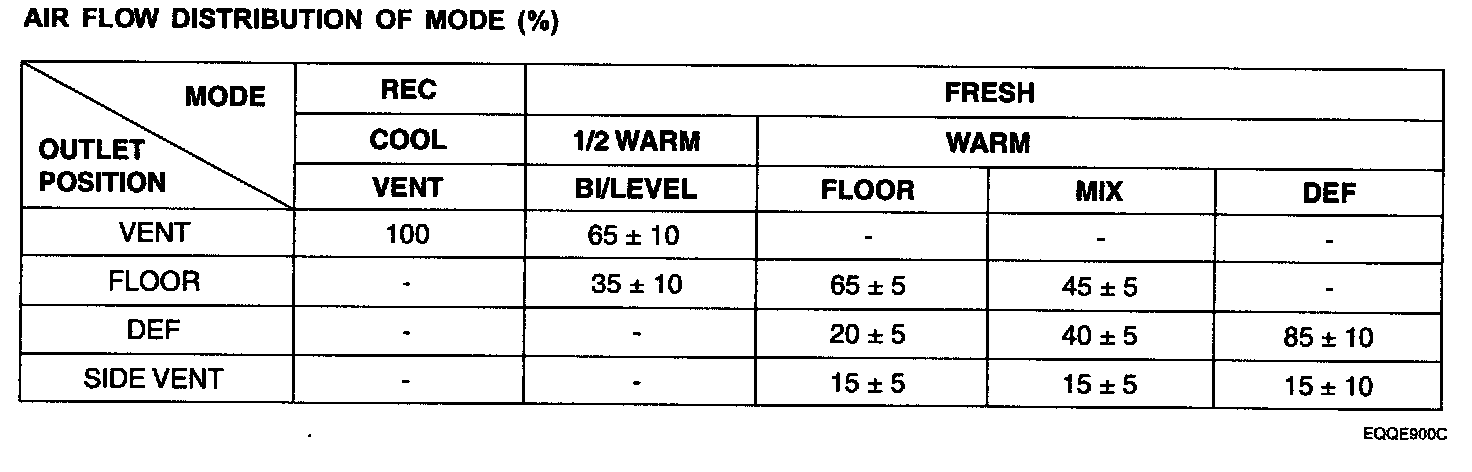

AIR FLOW DISTRIBUTION OF MODE (%)

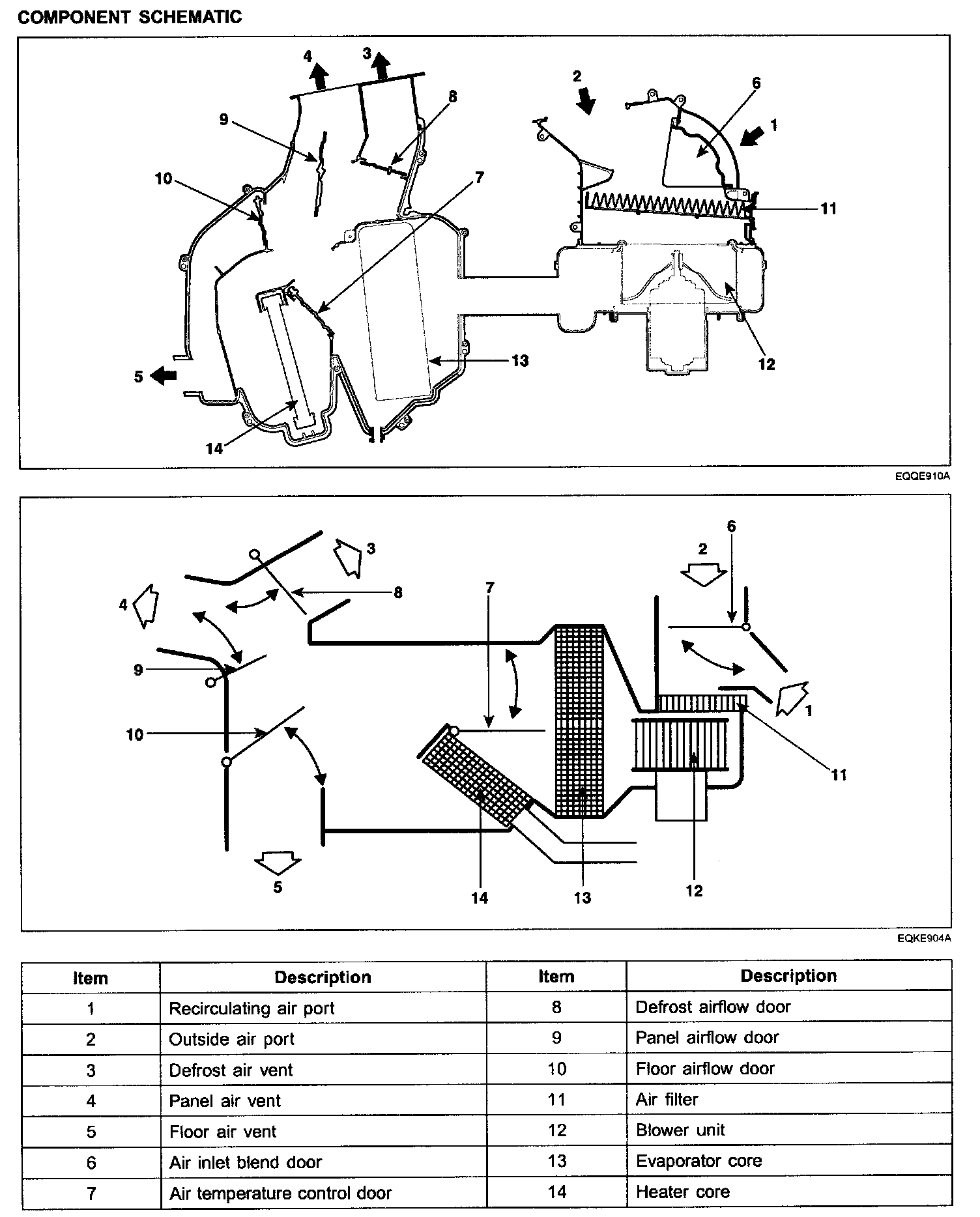

COMPONENT SCHEMATIC

SYSTEM AIR FLOW DESCRIPTION

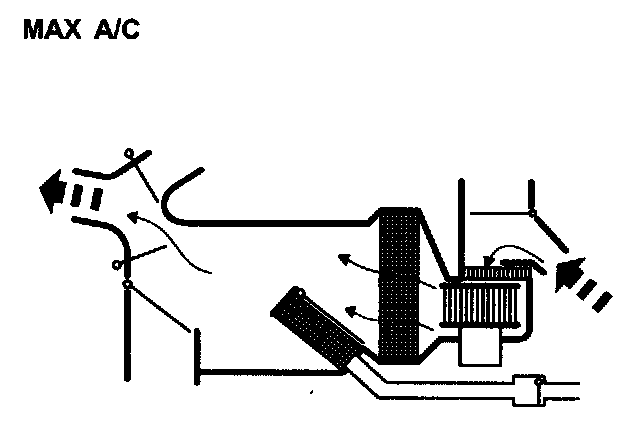

MAX A/C
When MAX A/C is selected :
- Air inlet blend door: Recirc
- Air temperature control door: Enable to select
- Defrost airflow door : Close
- Panel airflow door : Open
- Floor airflow door: Close
- A/C compressor : ON
- Blower motor: ON

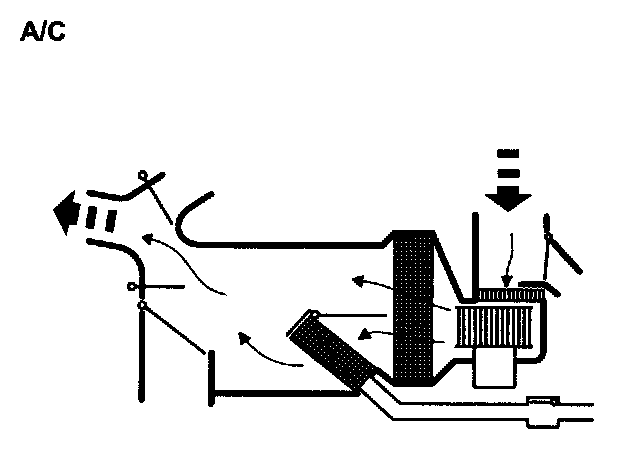

A/C
When A/C is selected :
- Air inlet blend door: Enable to select
- Air temperature control door: Enable to select
- Defrost airflow door: Enable to select
- Panel airflow door: Enable to select
- Floor airflow door: Enable to select
- A/C compressor : ON
- Blower motor: ON

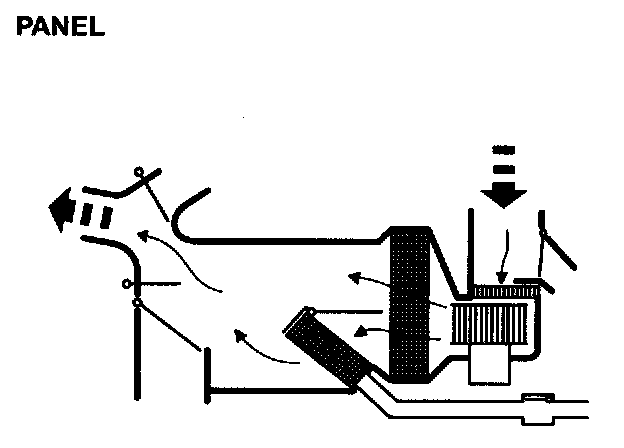

PANEL
When PANEL is selected :
- Air inlet blend door: Enable to select
- Air temperature control door: Enable to select
- Defrost airflow door : Close
- Panel airflow door : Open
- Floor airflow door : Close
- A/C compressor: Enable to select
- Blower motor : ON

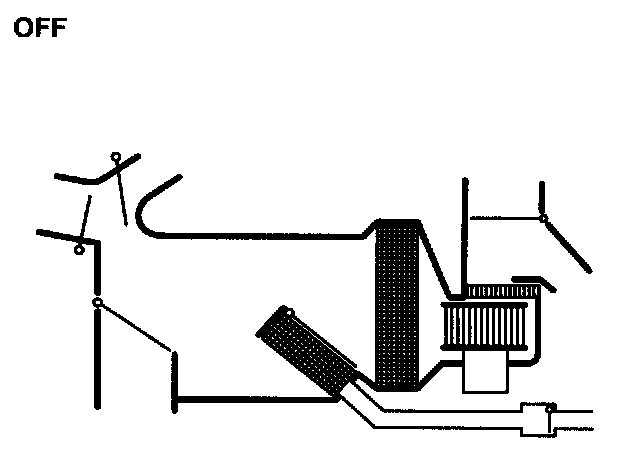

OFF
When OFF is selected:
- Air inlet blend door: Fresh
- Air temperature control door: Enable to select
- Defrost airflow door : Open
- Panel airflow door : Close
- Floor airflow door : Close
- A/C compressor : OFF
- Blower motor: OFF

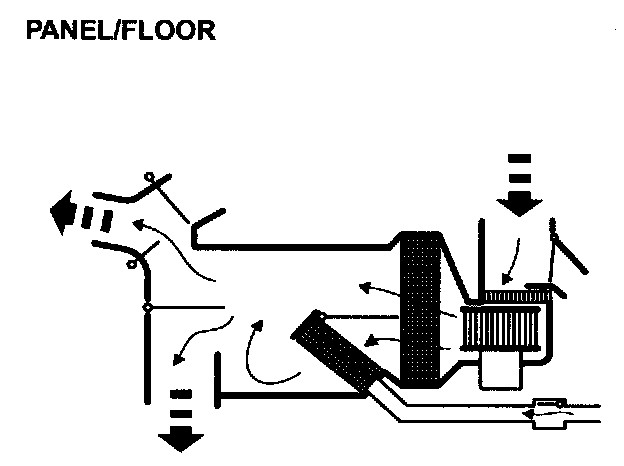

PANEL/FLOOR
When PANEL/FLOOR is selected:
- Air inlet blend door: Enable to select
- Air temperature control door: Enable to select
- Defrost airflow door: Close
- Panel airflow door : Open
- Floor airflow door : Open
- A/C compressor : Enable to select
- Blower motor : ON




FLOOR
When FLOOR is selected :
- Air inlet blend door: Fresh
- Air temperature control door: Enable to select
- Defrost airflow door : Open
- Panel airflow door: Close (Except for side panel air flow)
- Floor airflow door : Open
- A/C compressor : Enable to select
- Blower motor : ON

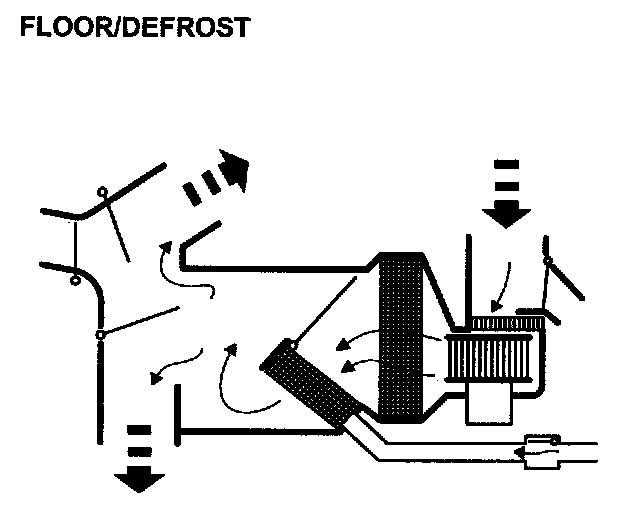

FLOOR/DEFROST
When FLOOR/DEFROST is selected:
- Air inlet blend door: Fresh
- Air temperature control door: Enable to select
- Defrost airflow door: Open
- Panel airflow door: Close (Except for side panel air flow)
- Floor airflow door : Open
- A/C compressor : ON
- Blower motor : ON

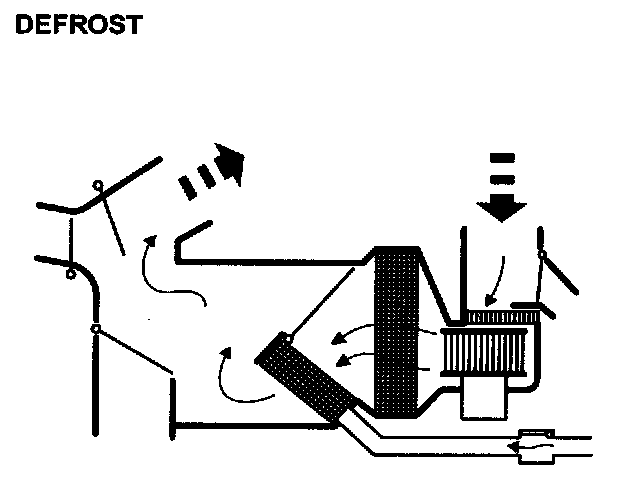

DEFROST
When DEFROST is selected:
- Air inlet blend door: Fresh
- Air temperature control door: Enable to select
- Defrost airflow door: Open
- Panel airflow door : Close
- Floor airflow door : Close
- A/C compressor : ON
- Blower motor: ON
