Windshield Washer Motor: Service and Repair

FRONT WASHER MOTOR

REMOVAL
1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper cover.

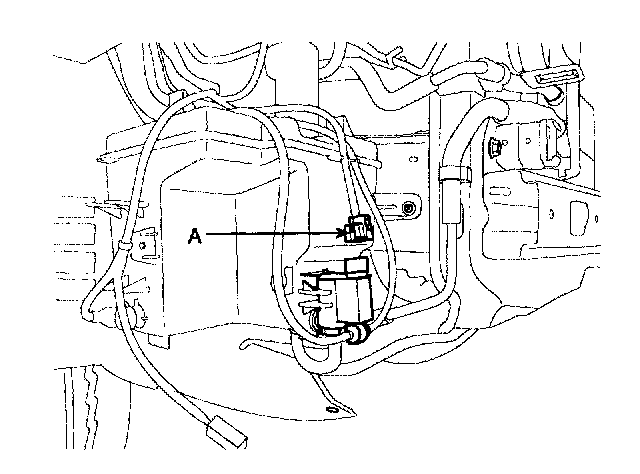

3. Remove the washer hose and the washer motor connector (A).

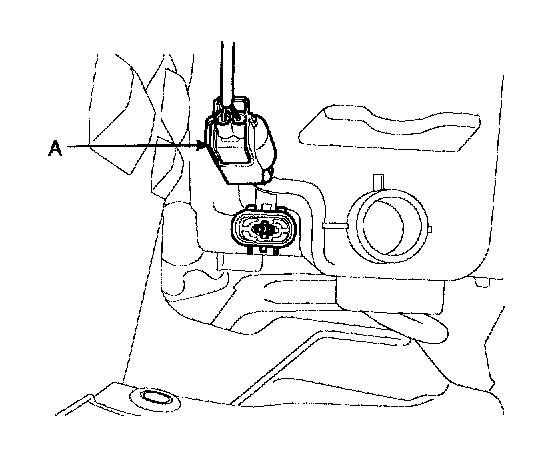

4. Disconnect the washer fluid level sensor switch connector (A).

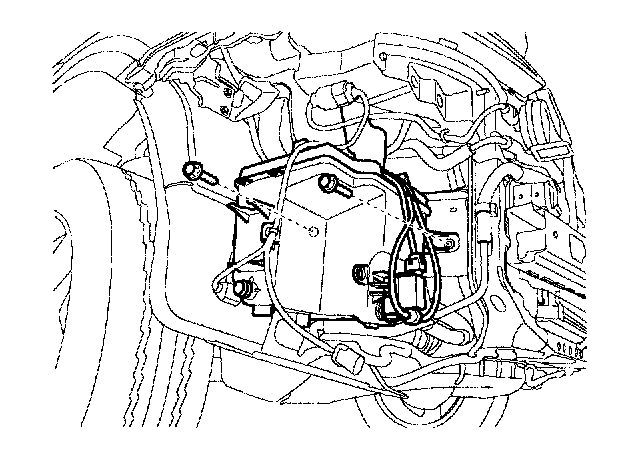

5. Remove the washer reservoir after removing 3 bolts.

INSTALLATION
1. Reassemble the washer reservoir.
2. Connect the washer motor connector and washer hose.
3. Reassemble the front bumper cover.
