Monitor Scantool Data

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.

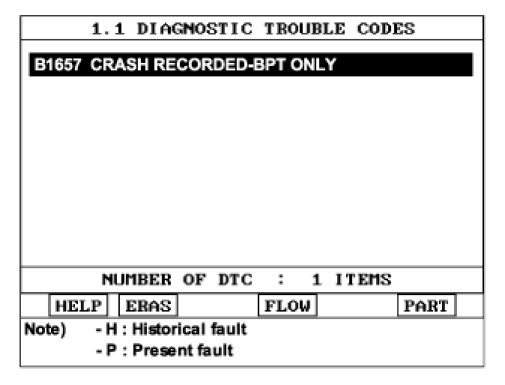

3. Monitor diagnostic trouble code and present of trouble code.




4. Is DTC present problem ?
YES
1) DTC caused by deployment of BPT. Substitute with a SRSCM and check for proper operation. If the problem is corrected, replace SRSCM and then go to "Verification of Vehicle Repair" procedure.
