WATER PUMP

COMPONENTS:

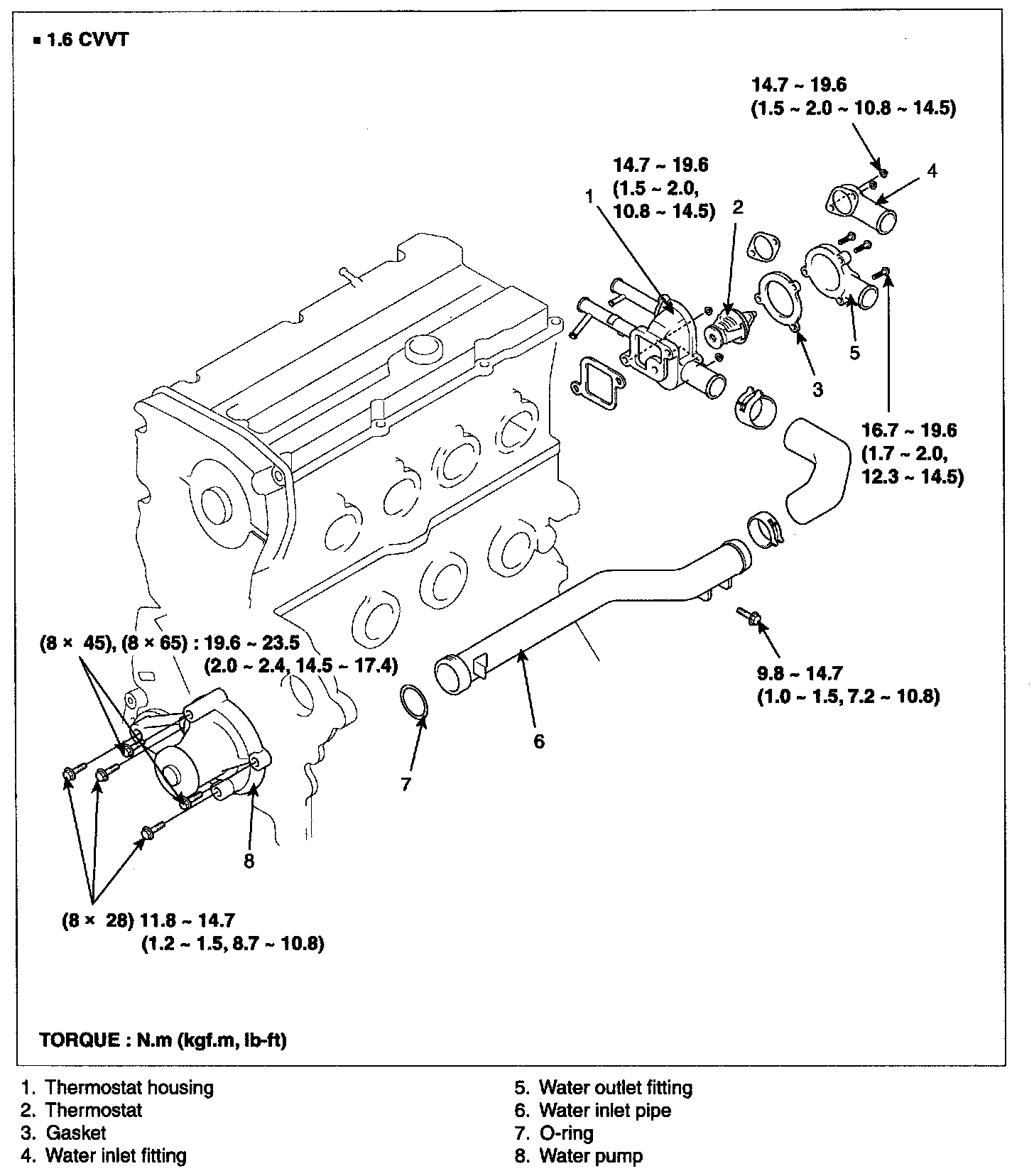

REMOVAL

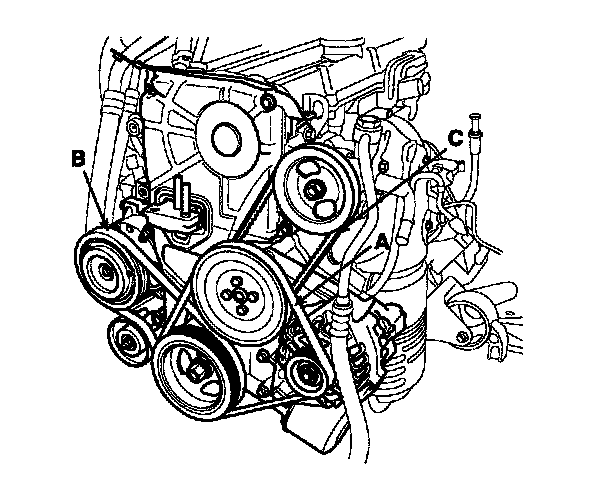

1. Drain the engine coolant.

WARNING: System is under high pressure when the engine is hot. To avoid danger of releasing scalding engine coolant, remove the cap only when the engine is cool.

2. Loosen the water pump pulley bolts.
3. Remove the drive belts.





4. Remove the water pump pulley.
5. Remove the timing belt.
6. Remove the timing belt idler.
7. Remove the water pump.

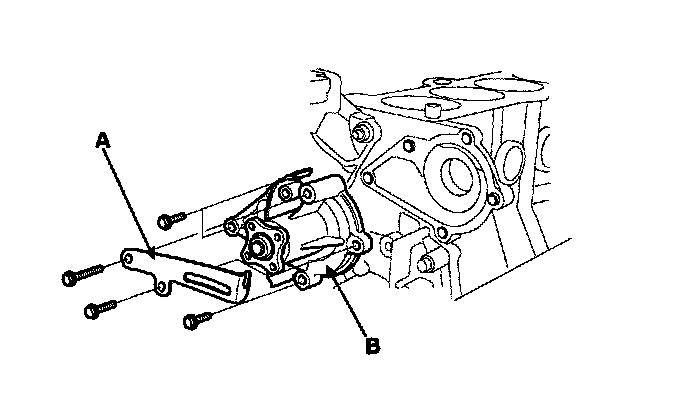

1) Remove the 2 bolts and alternator brace(A).
2) Remove the 3 bolts and remove the water pump(B) and gasket.





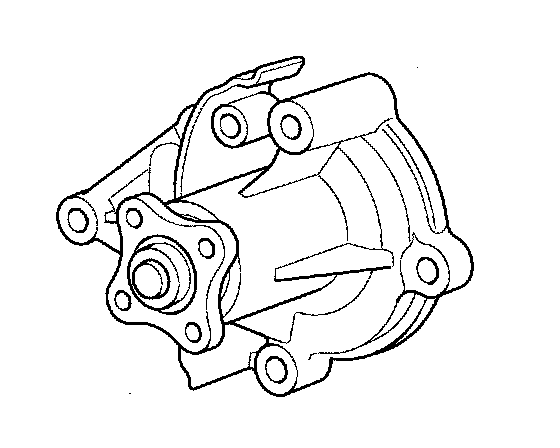

INSPECTION
1. Check each part for cracks, damage or wear, and replace the coolant pump assembly if necessary.
2. Check the bearing for damage, abnormal noise and sluggish rotation, and replace the coolant pump assembly if necessary.





3. Check for coolant leakage. If coolant leaks from hole, the seal is defective. Replace the coolant pump assembly.

NOTE: A small amount of "weeping" from the bleed hole is normal.

INSTALLATION
1. Install the water pump.
1) Install the water pump(C) and a new gasket with the 3 bolts(B).





2) Install the alternator brace(D) with the 2 bolts(A).

Tightening torque: 19.6 - 23.5N.m (2.0 - 2.4kgf.m, 14.5 - 17.4lb-ft)

2. Install the timing belt idler.
3. Install the timing belt.
4. Install the water pump pulley.
5. Install the drive belts.
6. Tighten the water pump pulley bolts.

Tightening torque: 7.8 - 9.8N.m (0.8 - 1.0kgf.m, 5.8 - 7.2lb-ft)

7. Fill with engine coolant.
8. Start engine and check for leaks.
9. Recheck engine coolant level.
