PCM




PCM HARNESS CONNECTOR

PCM Terminal Function (A/T) - Connector (C01-1) Part 1:




PCM Terminal Function (A/T) - Connector (C01-1) Part 2:




PCM Terminal Function (A/T) - Connector (C01-1) Part 3:




PCM TERMINAL FUNCTION - CONNECTOR [C01-1]

PCM Terminal Function (A/T) - Connector (C02-1) Part 1:




PCM Terminal Function (A/T) - Connector (C02-1) Part 2:




PCM TERMINAL FUNCTION - CONNECTOR [C01-2]

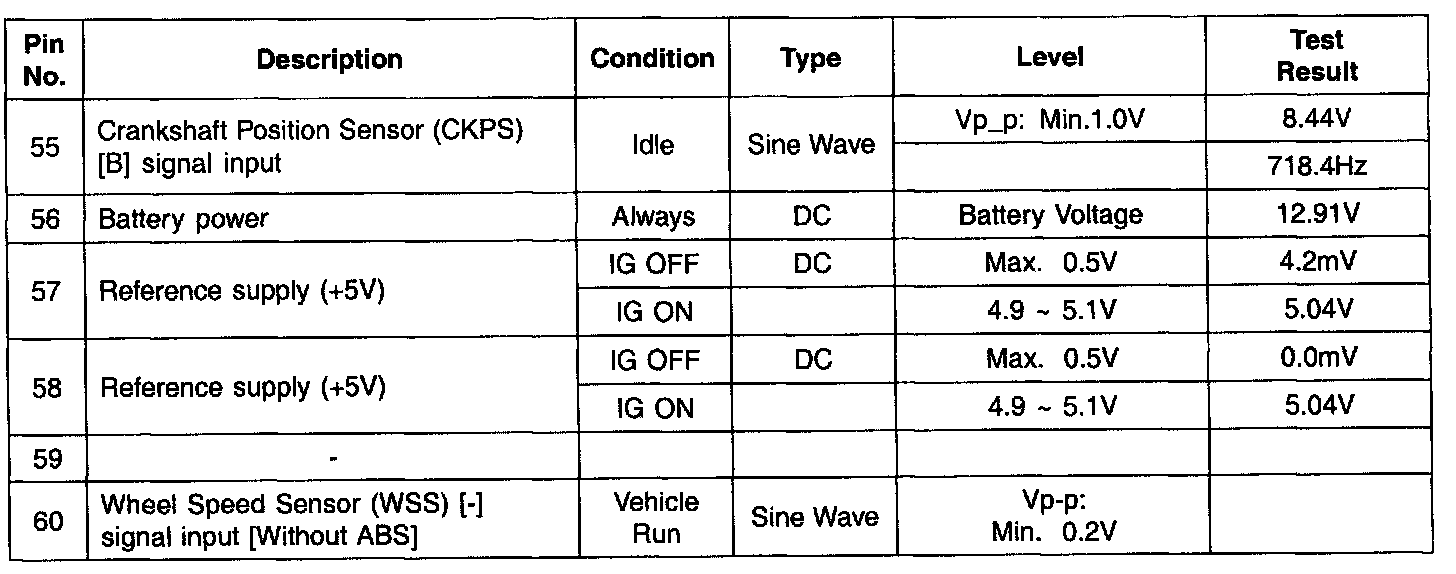

PCM Terminal In/Out Signal - Connector (C01-1) Part 1:




PCM Terminal In/Out Signal - Connector (C01-1) Part 2:




PCM Terminal In/Out Signal - Connector (C01-1) Part 3:




PCM TERMINAL INPUT/OUTPUT SIGNAL CONNECTOR [C01-1]

PCM Terminal In/Out Signal - Connector (C01-2) Part 1:




PCM Terminal In/Out Signal - Connector (C01-2) Part 2:




PCM Terminal In/Out Signal - Connector (C01-2) Part 3:




PCM Terminal In/Out Signal - Connector (C01-2) Part 4:




PCM TERMINAL INPUT/OUTPUT SIGNAL CONNECTOR [C01-2]
