Antitheft Antenna: Service and Repair
COIL ANTENNAREPLACEMENT 1.
Disconnect the negative (-) battery terminal.
2.

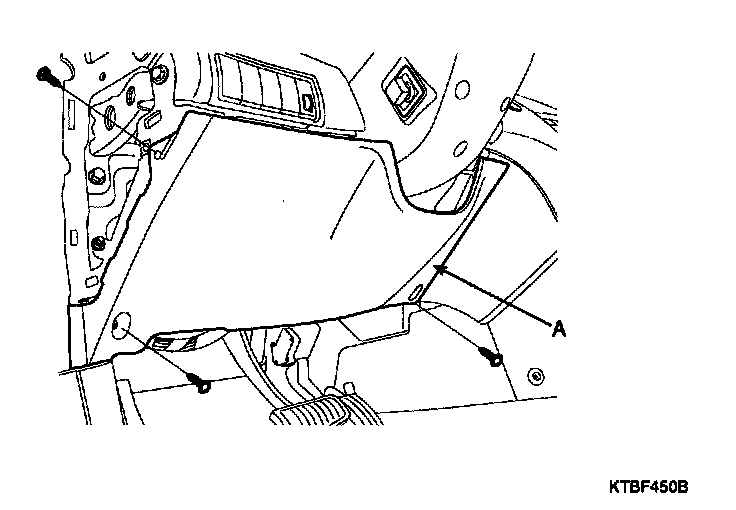

Remove the driver crash pad lower panel (A).
3.
Remove the steering column shaft.
4.

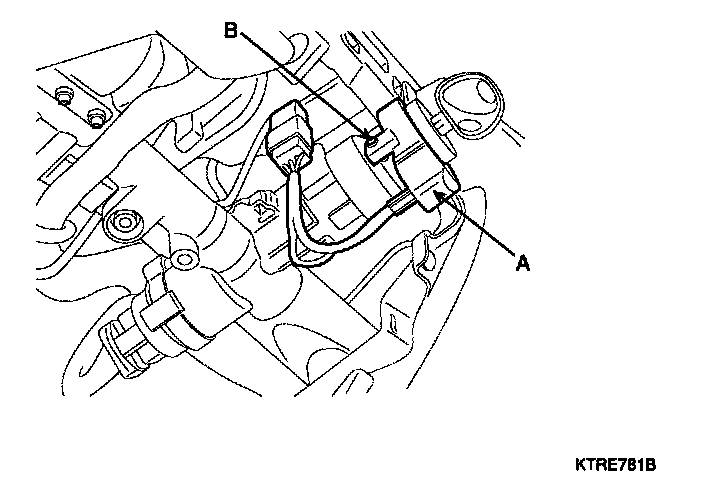

Disconnect the 6P connector of the coil antenna and then remove the coil antenna (A) after loosening the screw.
5.
Installation is the reverse of removal procedure.
