Console Lamp: Service and Repair

OVERHEAD CONSOLE LAMP

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Replace the bulb after the lens.

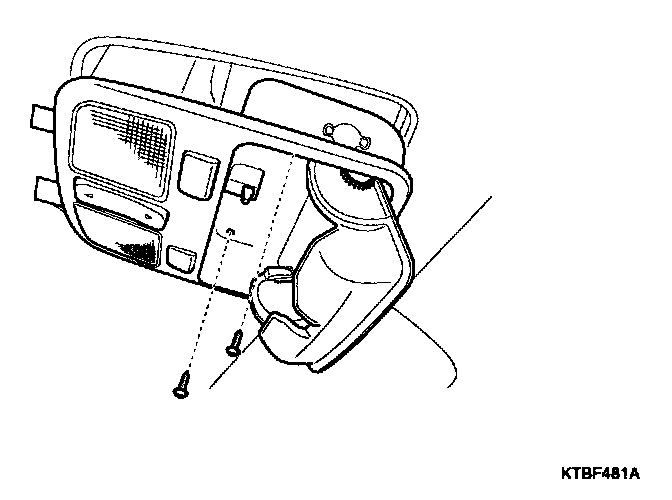

3. Open the sunglass case cover then remove the 2 screws holding the overhead console.

4. Disconnect the connector (4P) of sunroof switch and the connector (2P) of map lamp then remove the overhead console lamp assembly from the headliner.
5. Installation is the reverse of removal.
