Courtesy Lamp: Service and Repair
ROOM LAMPREPLACEMENT 1.
Disconnect the negative (-) battery terminal.
2.

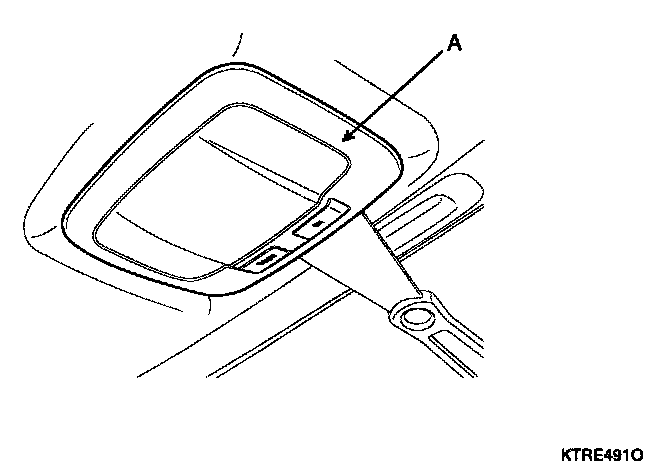

Detach the lamp lens (A) from the room lamp with a flat-tip screwdriver then replace the bulb.
3.

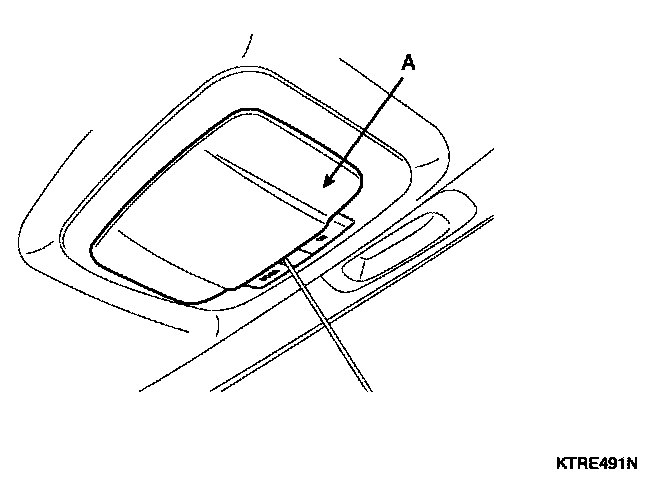

Remove the room lamp assembly by using the scraper and then disconnect the 3P connector.
4.
Installation is the reverse of removal.
