Paint - Color Codes/Cross References

Group: PAINT

Number: 07-99-006

Date: OCTOBER, 2007

Model:
2008 AZERA

Subject:
2008 MY AZERA EXTERIOR COLOR CODES

DESCRIPTION:

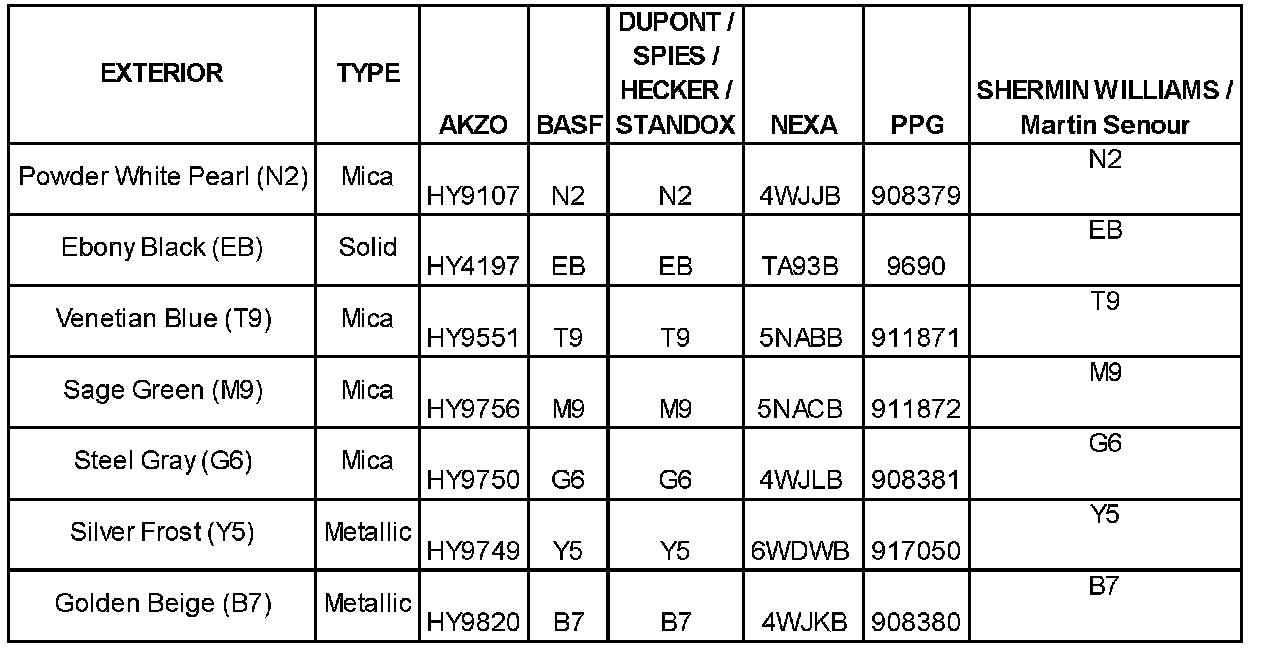

This TSB provides information on 2008 model year exterior colors used on the Azera. It includes Hyundai paint codes and several paint manufacturers formula codes.





The exterior color codes are printed on the certification label at the base of the Driver's side "B" pillar. The 2 digit color code is listed under "paint" followed by the interior color listed under "trim". For example, Paint N2 indicates a powder white pearl (N2) exterior and Trim B9 indicates a gray (B9) interior.
