Windshield Deicer
WINDSHIELD DEICERINSPECTION 1.
Remove the cowl top cover.
2.

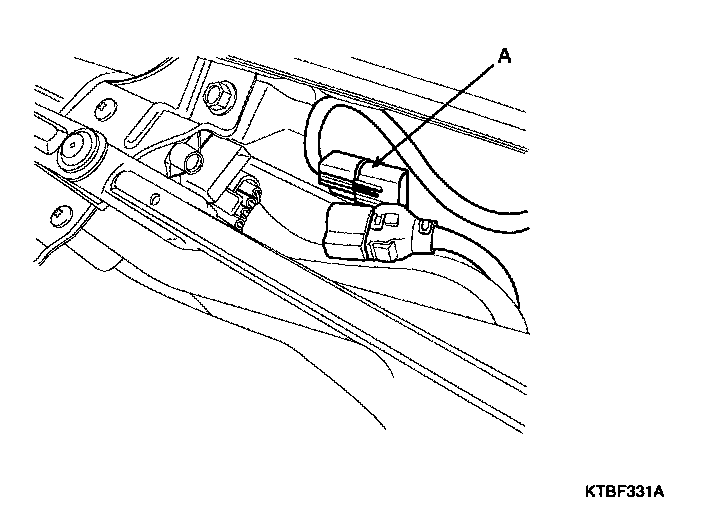

Disconnect the
windshield deicer connector (A) from the wiper motor linkage.
3.

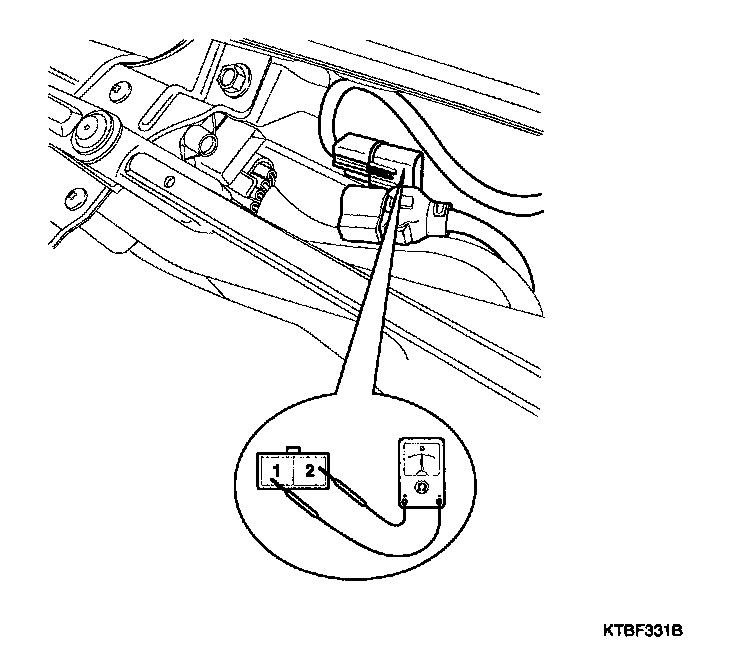

Check for continuity between the terminals of deicer lines.
4.

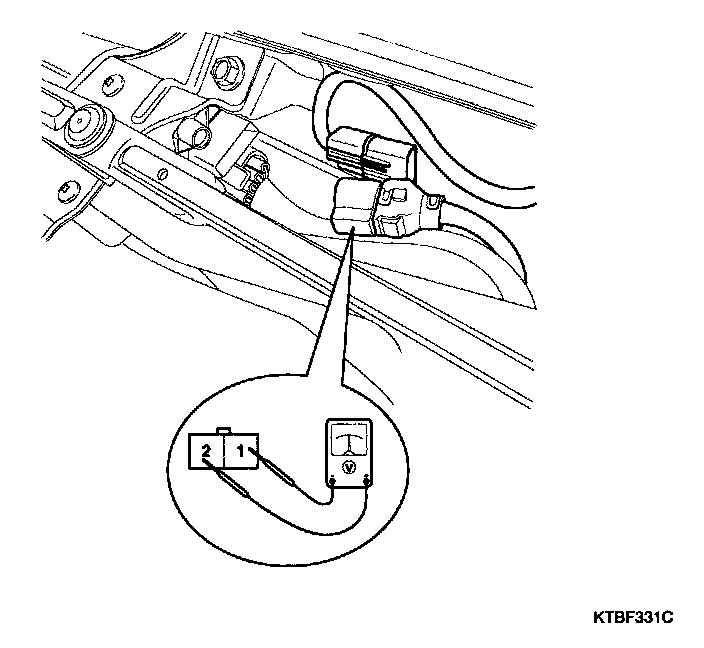

Turn the ignition switch ON and the
windshield deicer switch ON, then measure the voltage between the terminals of harness side deicer connector.
OK : approx. Battery voltage (
12 V)
