Ambient Light Sensor: Service and Repair

AUTO LIGHT SENSOR

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

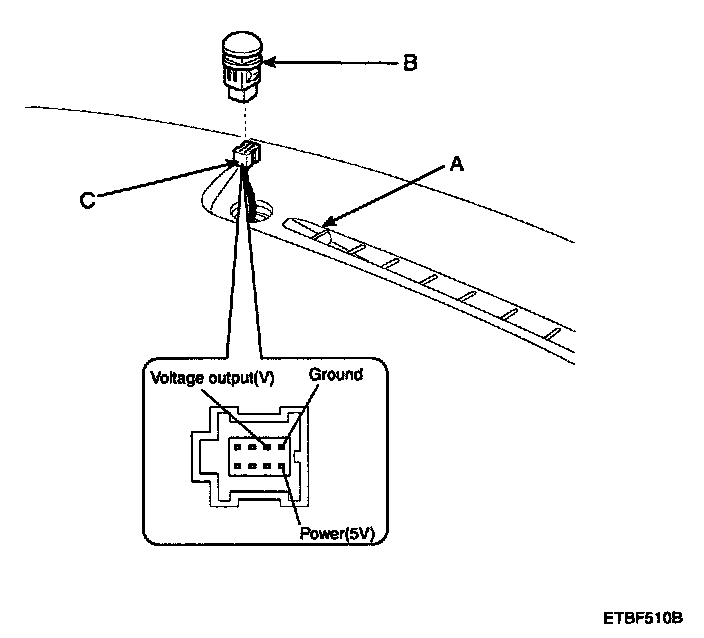

2. Remove the Photo & auto light sensor (B) from defrost nozzle by using screw (-) driver.

3. Remove the auto light connector.
4. Installation is the reverse of removal.
