Fog/Driving Lamp: Service and Repair

FRONT FOG LAMPS

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper.
3. Replace the bulb by rotating the bulb holder (A) to the clockwise direction after disconnecting the fog lamp connector.

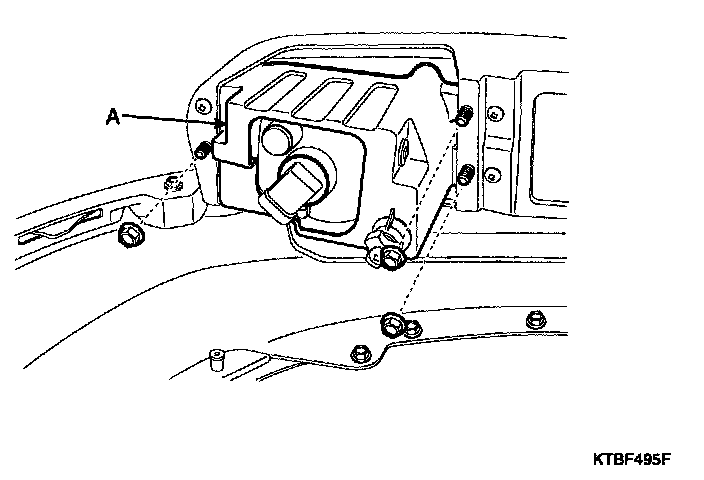

4. Remove the front fog lamp assembly (A) after loosening nuts and disconnecting the fog lamp connector.

5. Installation is the reverse of removal.
