Front Fender: Service and Repair

FENDER

REPLACEMENT

NOTE:
- Take care not to damage the hood and body.
- When removing the clips, use a clip remover.

1. Remove the following items.
- Headlamp assembly.
- Front bumper.

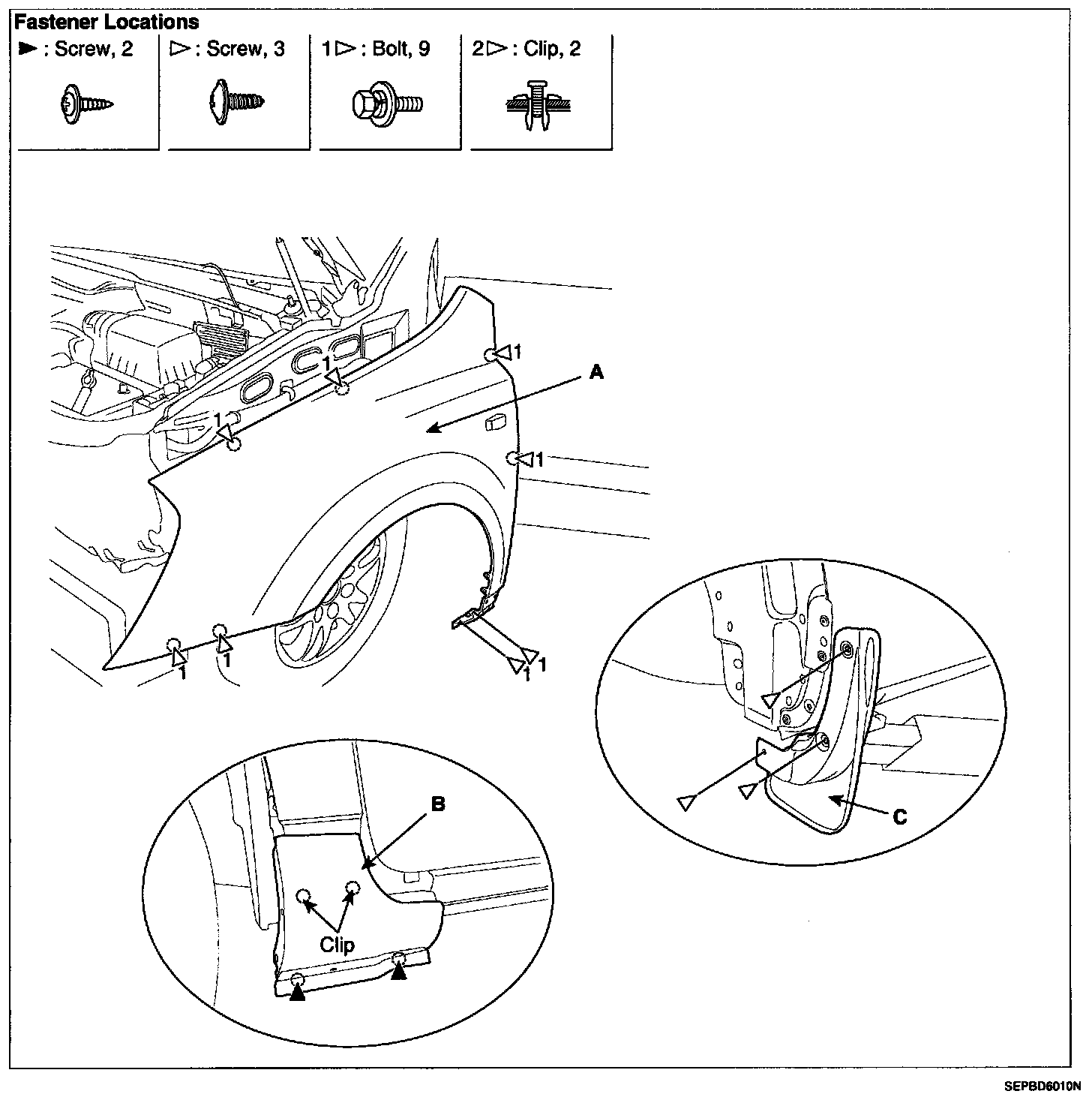

- Side garnish (B), mud guide (C).

2. After loosening the fender mounting bolts, remove the fender (A).
3. Installation is the reverse of removal.
