Power Door Lock Switch: Service and Repair

POWER DOOR LOCK SWITCH

REPLACEMENT

DDM/ADM
1. Disconnect the negative battery terminal.
2. Remove the front door trim panel.

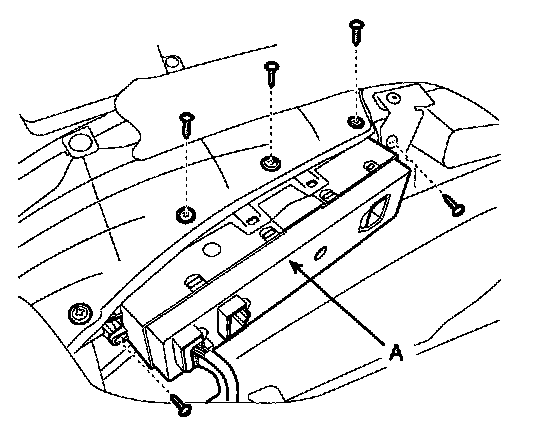

3. Remove the door module (A) mounting screws (5EA) after disconnecting the connector (3EA) from the actuator.

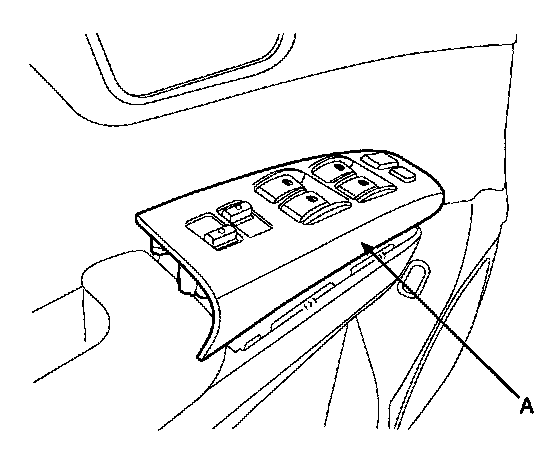

4. Remove the front door modules (DDMDM) from the front door trim panel.
