Power Door Lock Switch: Testing and Inspection

POWER DOOR LOCK SWITCH

INSPECTION
1. The DDM inputs can be checked using the scan tool.

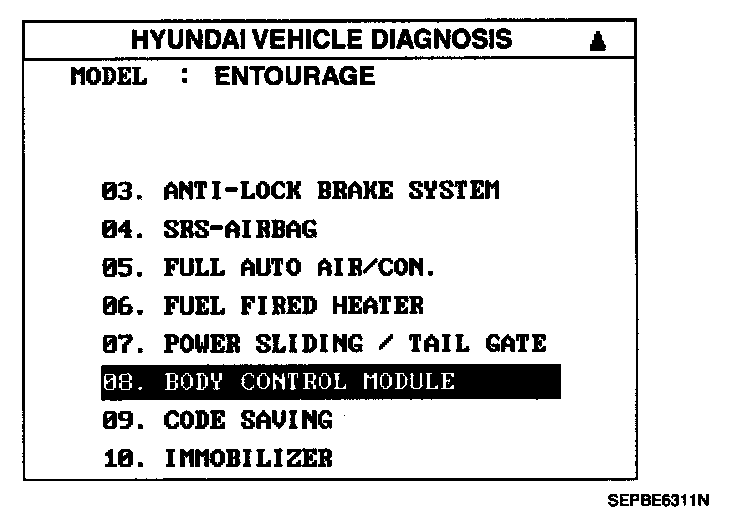

2. To check the Input Value of door lock switch, select option "08. BODY CONTROL MODULE".

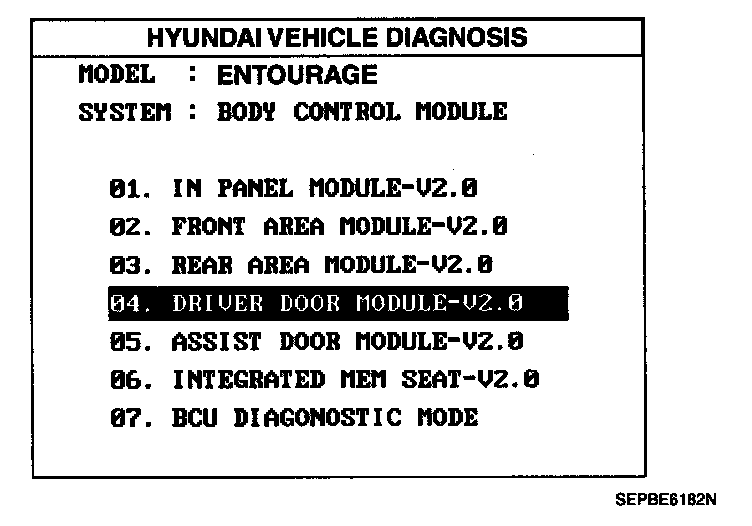

3. Select option "04. DRIVER DOOR MODULE".

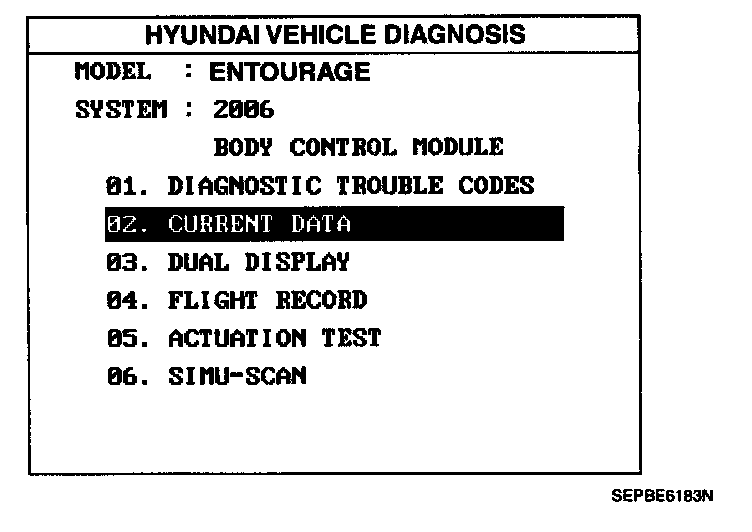

4. Select option "02. CURRENT DATA".

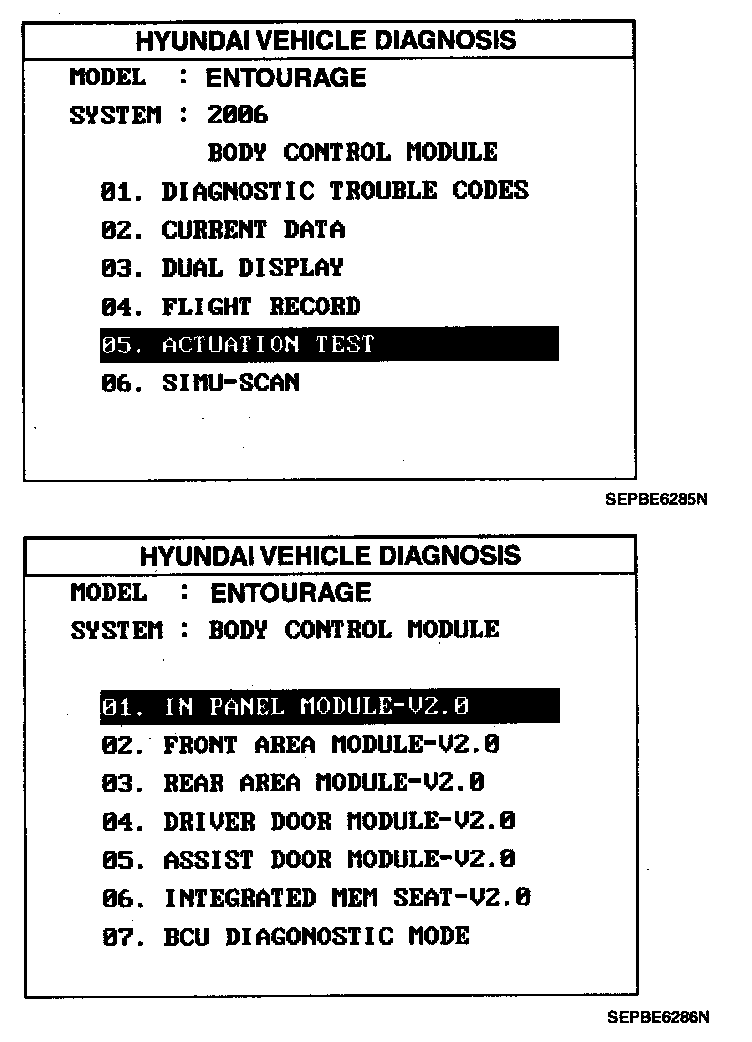

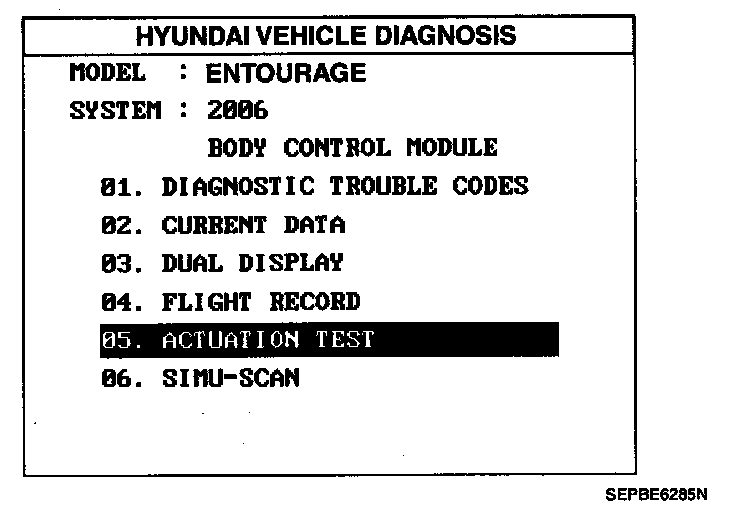

5. To check the Input Value of door lock switch in force mode, select option "05. ACTUATION TEST".
