Trunk / Liftgate Lock Cylinder: Service and Repair
LOCK CYLINDER REPLACEMENT 1.
Remove the
tailgate trim.
2.
Remove the
tailgate garnish.
3.

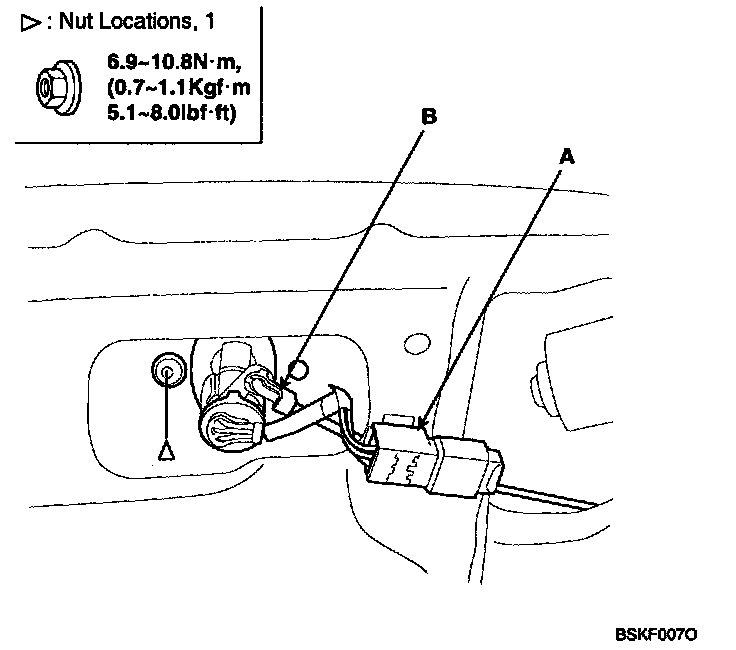

Disconnect the key rod (B) and connector (A).
4.

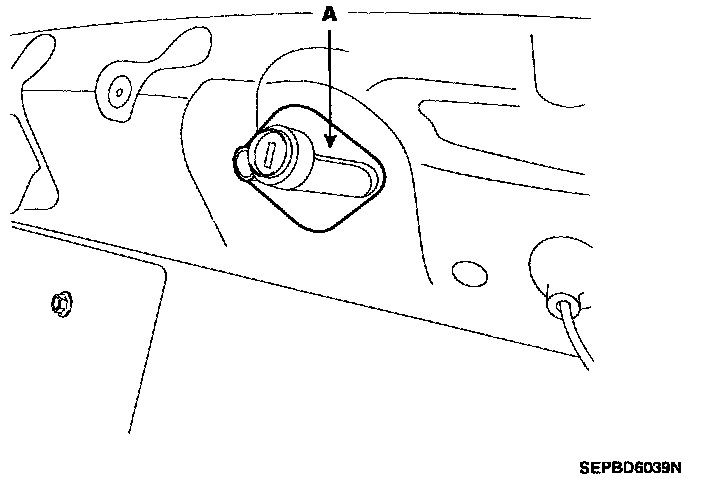

Remove the key holder (A).
5.
Installation is the reverse of removal.
NOTE: Make sure the
tailgate opens properly and locks securely.
