Power Mirror Switch: Service and Repair

OUTSIDE MIRROR FOLDING SWITCH

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the front door trim panel.

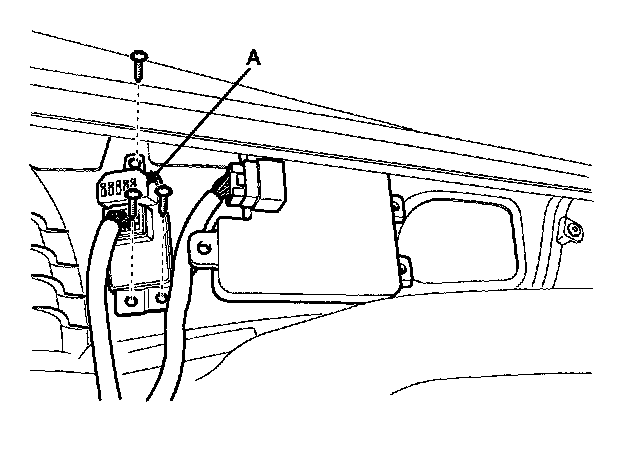

3. Remove the power window main switch mounting screws (3EA) (A) after disconnecting the switch connector (12 pin) from the switch.

4. Remove the switch from the front door trim panel.
5. Installation is the reverse of removal.
