Power Mirror Switch: Testing and Inspection

OUTSIDE MIRROR FOLDING SWITCH

INSPECTION

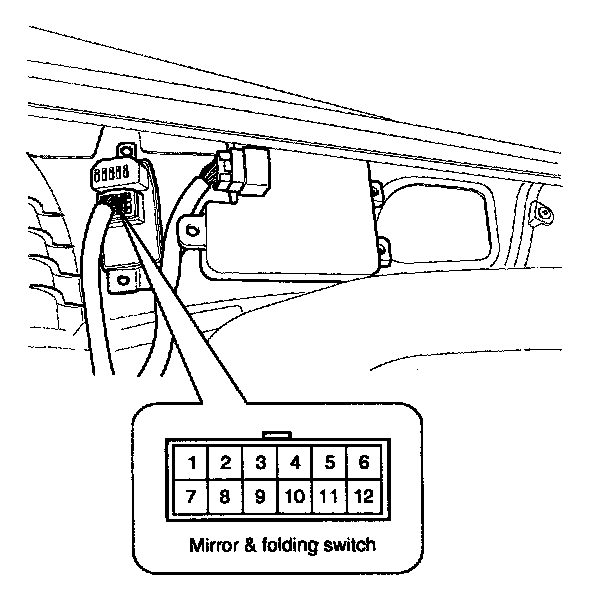

1. Disconnect the 12P connector from the switch.

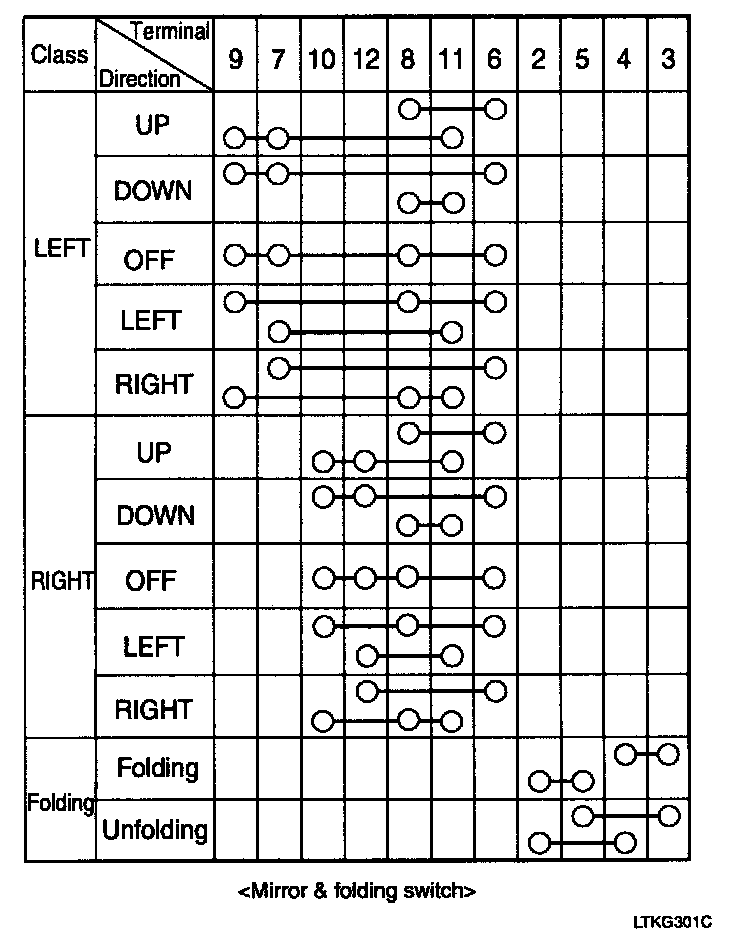

2. Check for continuity between the terminals in each switch position according to the table.
