Outside Rear View Mirror Replacement

OUTSIDE REAR VIEW MIRROR REPLACEMENT

NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

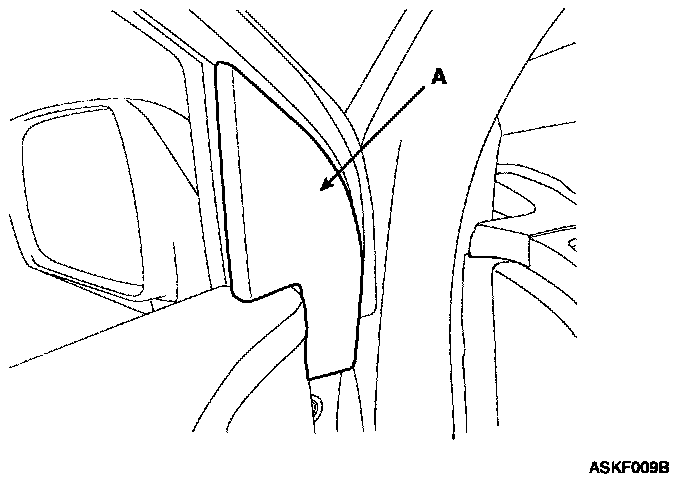

1. Remove the quadrant inner cover (A).

2. Remove the door trim.

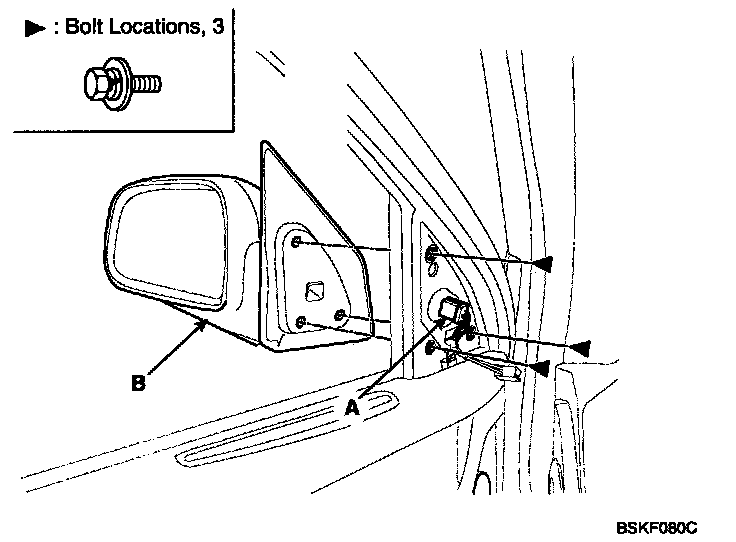

3. After disconnecting the connector (A), remove the outside rear view mirror (B).

4. Installation is the reverse of removal.
