Seat Temperature Switch: Service and Repair

SEAT WARMER SWITCH

INSPECTION
1. Disconnect the negative (-) battery terminal.

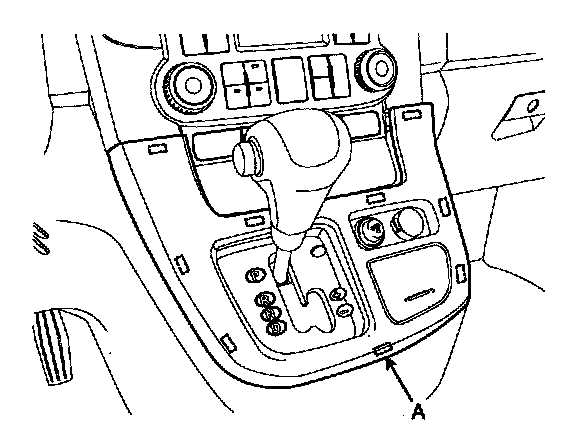

2. Remove the seat back.

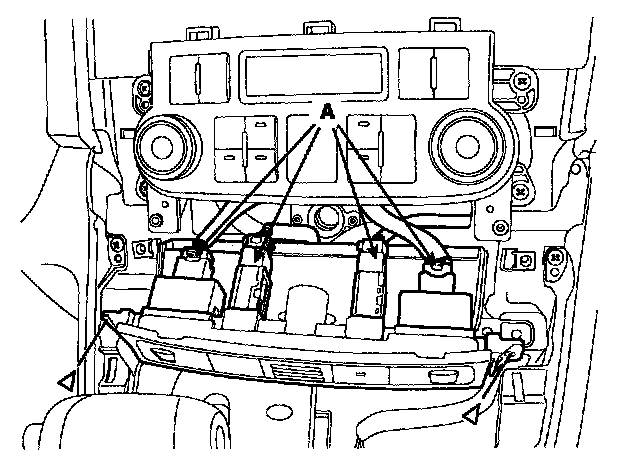

3. Remove the mounting screw, center facia panel switch and then disconnect connectors.

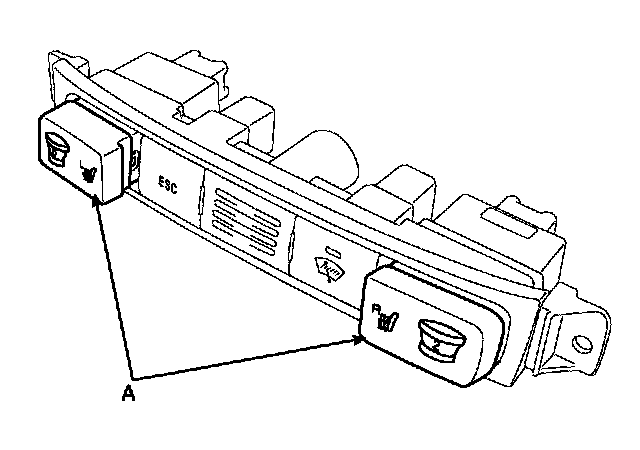

4. Remove the seat warmer switch (A) from center facia panel switch.

5. Installation is the reverse of removal.
