Dome Lamp: Service and Repair

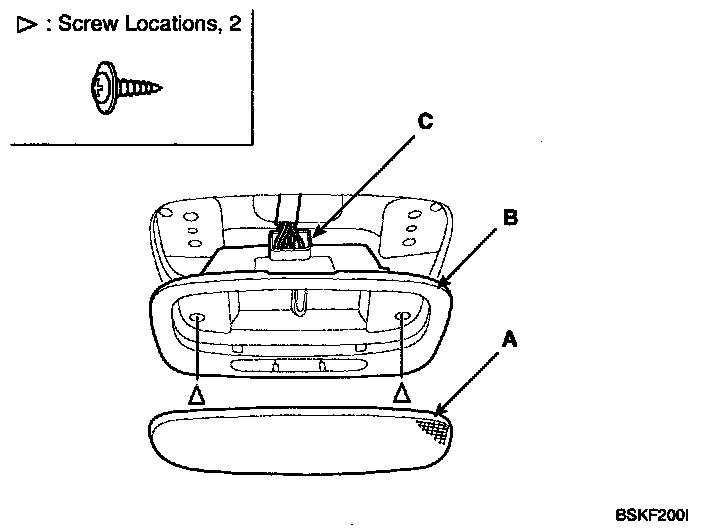

ROOM LAMP REPLACEMENT

1. Remove the room lamp.
- Remove the lens (A).
- Remove the screw.
- Pull out the room lamp (B).
- Disconnect the connector (C).

2. Installation is the reverse of removal.
