Fog/Driving Lamp: Service and Repair
FRONT FOG LAMPSREPLACEMENT 1.
Disconnect the negative (-) battery terminal.
2.
Remove the front lamp assembly.
3.
Remove connector and the socket in a counterclockwise direction.
4.

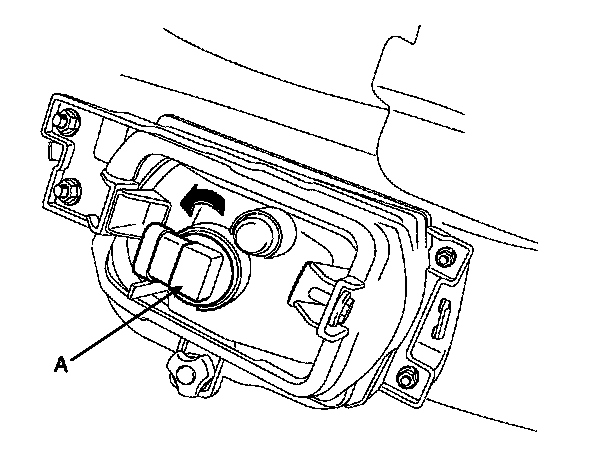

Remove the bulb (A) and replace it with a new one.
