Turn Signals: Service and Repair

TURN SIGNAL LAMP

REPLACEMENT

FRONT TURN SIGNAL LAMP
1. Disconnect the negative (-) battery terminal.
2. Remove front lamp assembly.
3. Remove the socket in a counterclockwise direction.

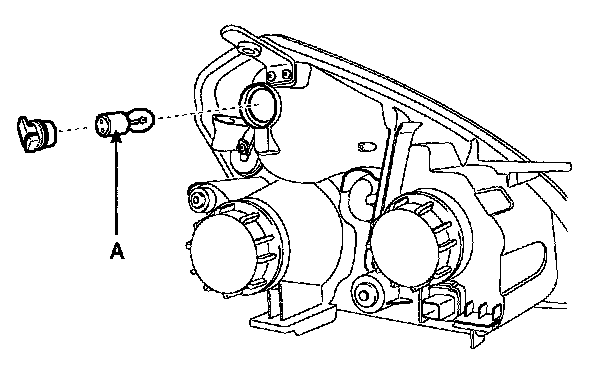

4. Replace the bulb (A).

REAR TURN SIGNAL LAMP
1. Disconnect the negative (-) battery terminal.

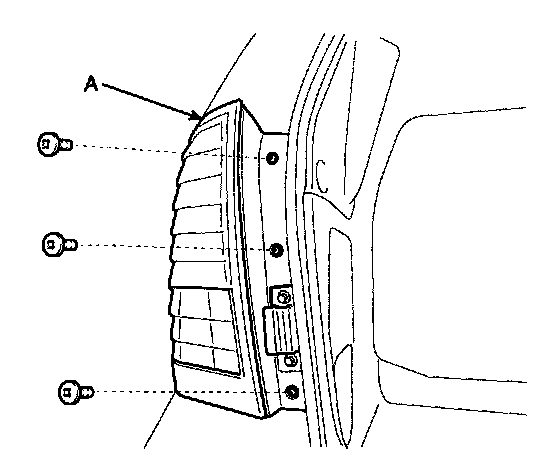

2. Remove the rear lamp assembly (A) after removing the mounting screw (3EA) and connector.

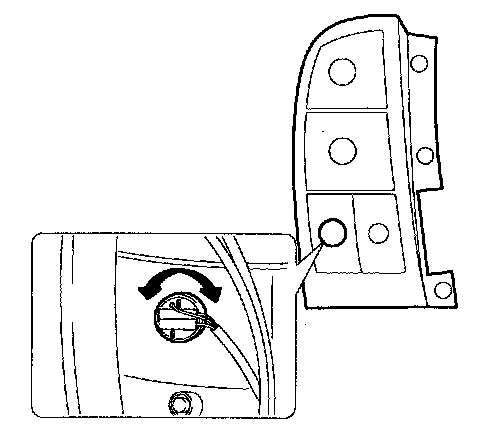

3. Remove the socket in a counterclockwise direction and replace the bulbs.
