Relay Box: Description and Operation

ICM (INTEGRATED CIRCUIT MODULE) RELAY BOX

DESCRIPTION

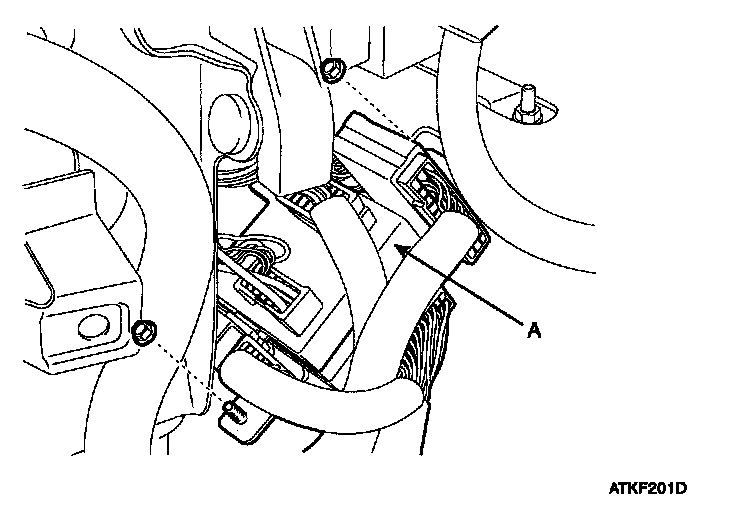

The ICM (Integrated circuit module) relay (A) is united with many kinds of relays and installed side of the in-panel module.
