Relay Box (Passenger Compartment)

RELAY BOX (PASSENGER COMPARTMENT)

REPLACEMENT

IPM (INSTRUMENT PANEL MODULE)
1. Disconnect the negative (-) battery terminal.

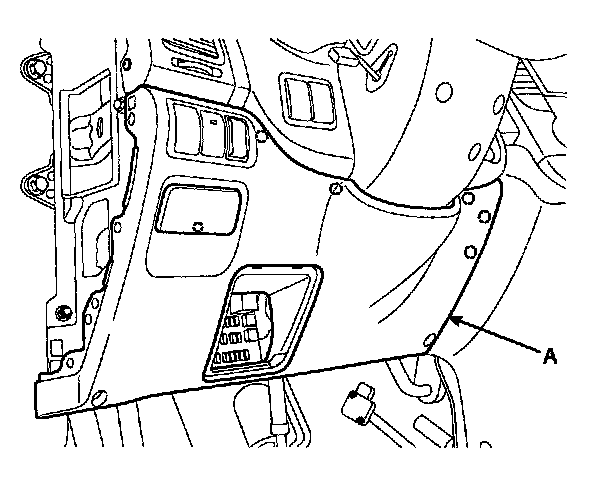

2. Remove the crash pad lower panel (A).

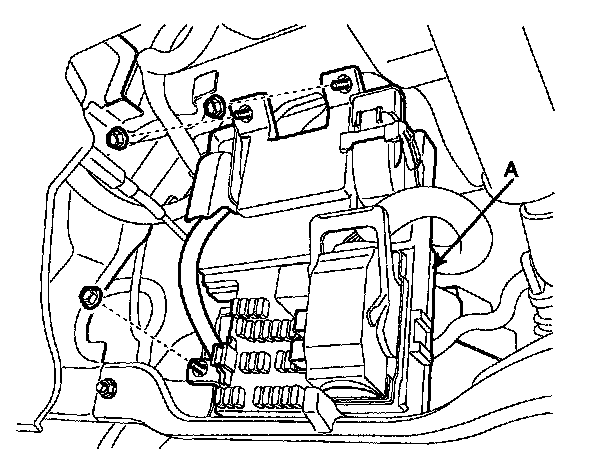

3. Disconnect the receiver antenna cable and connectors (5EA). Remove IPM mounting nuts (3EA) and IPM (A).

4. Installation is the reverse of removal procedures.
