Parking Assist Control Module: Service and Repair

REAR PARKING ASSIST SYSTEM

REPLACEMENT

1. Remove the right side trim of the trunk.

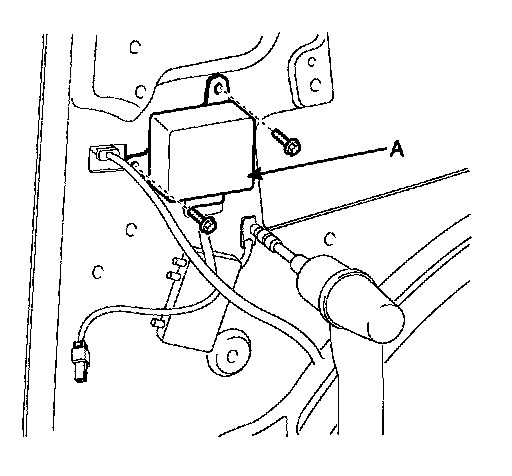

2. Loosen the mounting bolts and remove the rear parking assist control unit (A) from the quarter panel.
