Windshield Deicer Switch
WINDSHIELD DEICER SWITCHINSPECTION 1.
Disconnect the negative (-) battery terminal.
2.

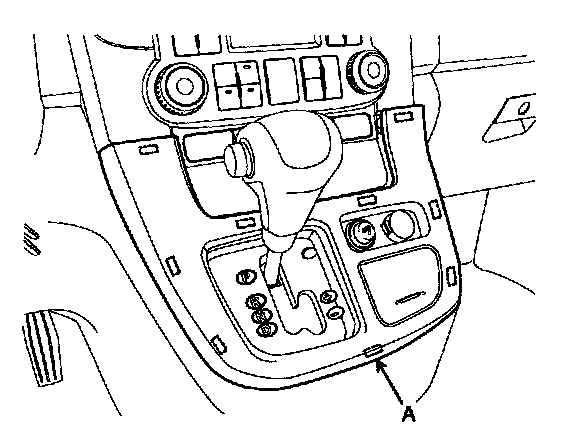

Remove the console lower cover (A).
3.

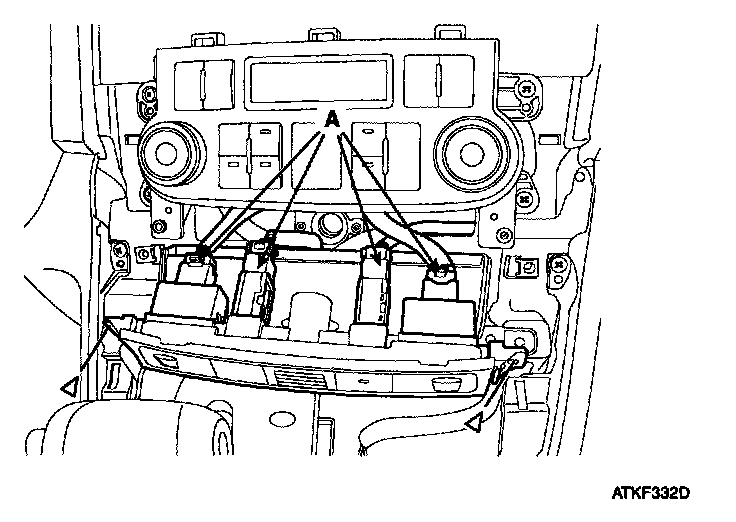

Remove the center facia panel (A) after loosening screws. Take care not to damage fixing clips.
4.

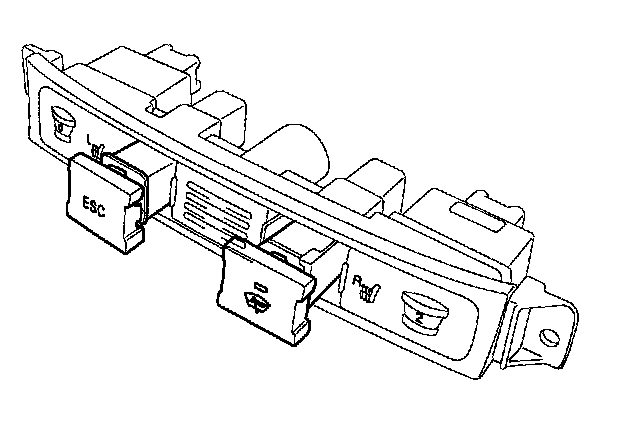

Remove the windshield deicer switch from the center facia panel switch.
5.
Installation is the reverse of removal.
