Power Window Motor Replacement

POWER WINDOW MOTOR REPLACEMENT

1. Remove the door trim.

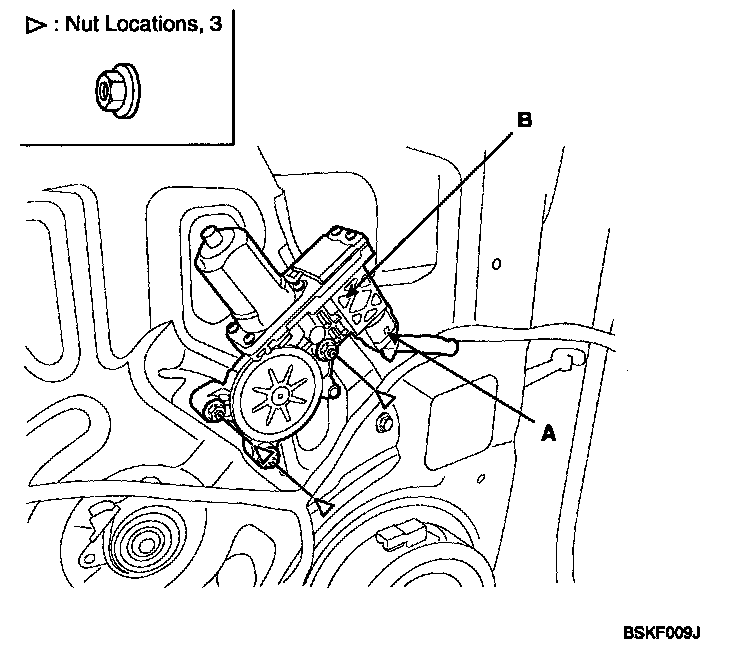

2. Disconnect the power window motor connector (A).
3. After loosening the mounting nuts, remove the power window motor (B).

4. Installation is the reverse of removal.

NOTE:
- Make sure that there is no clearance between the glass and glass run channel when the glass is closed.
- Adjust the position of the glass as necessary.
