Power Window Switch: Service and Repair

POWER WINDOW SWITCH REPLACEMENT

1. Remove the front door trim.

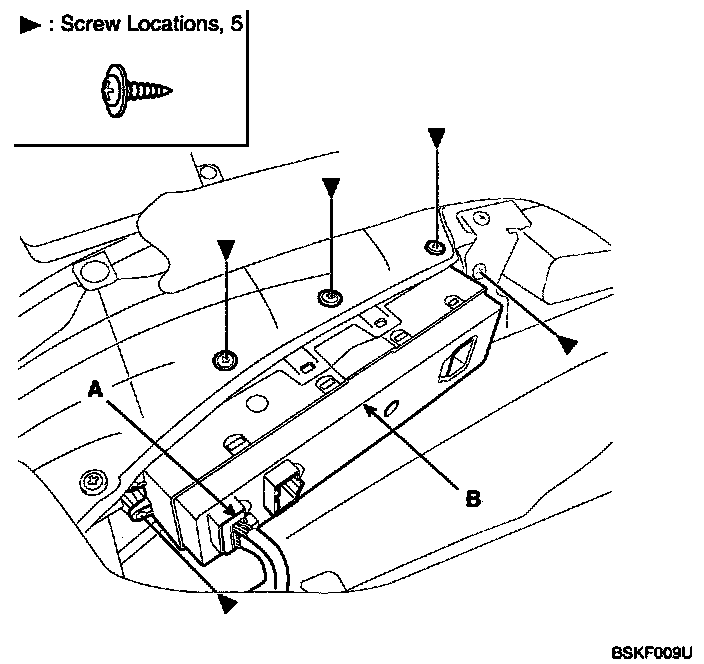

2. Loosen the mounting screws (B).
3. Disconnect the connector (A).

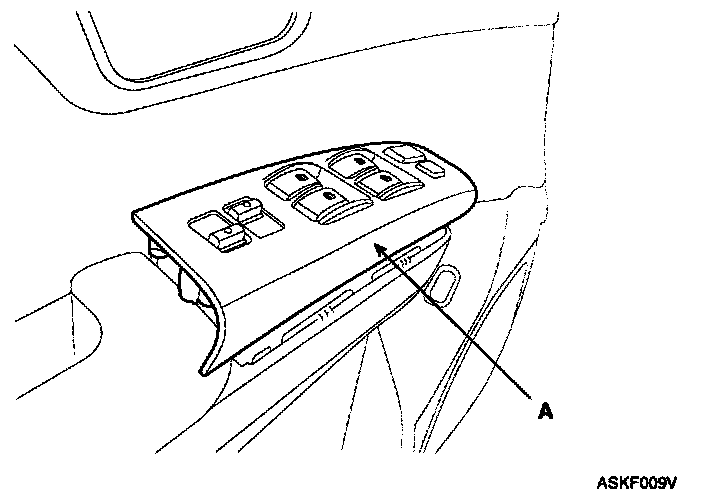

4. Remove the power window switch (A).

5. Installation is the reverse the removal.
