Front Door Window Glass: Service and Repair

GLASS REPLACEMENT

1. Remove the front door trim.

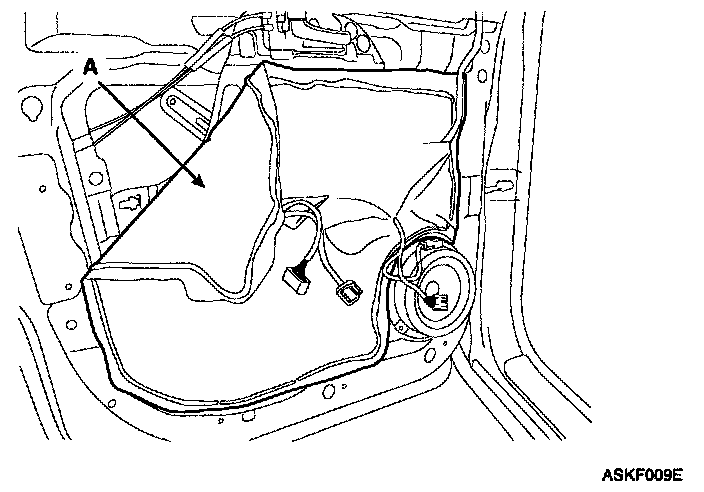

2. Remove the door trim seal (A).

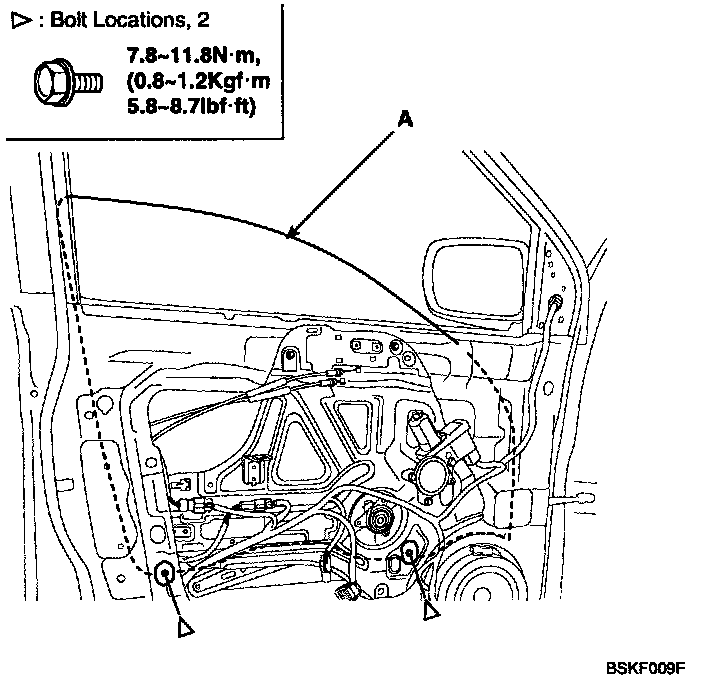

3. Carefully move the glass (A) until you can see the bolts, then loosen them. Carefully pull the glass out through the window slot (B).






4. Installation is the reverse of removal.

NOTE:
- Roll the glass up down to see if it moves freely without binding.
- Make sure that there is no clearance between the glass and glass run channel when the glass is closed.
- Adjust the position of the glass as necessary.
