Sliding Door Window Glass: Service and Repair

GLASS REPLACEMENT

1. Remove the following items.
- Door trim.
- Door belt weather strip.
- Rear channel.

CAUTION: Take care not to drop to glass and scratch the glass surface.

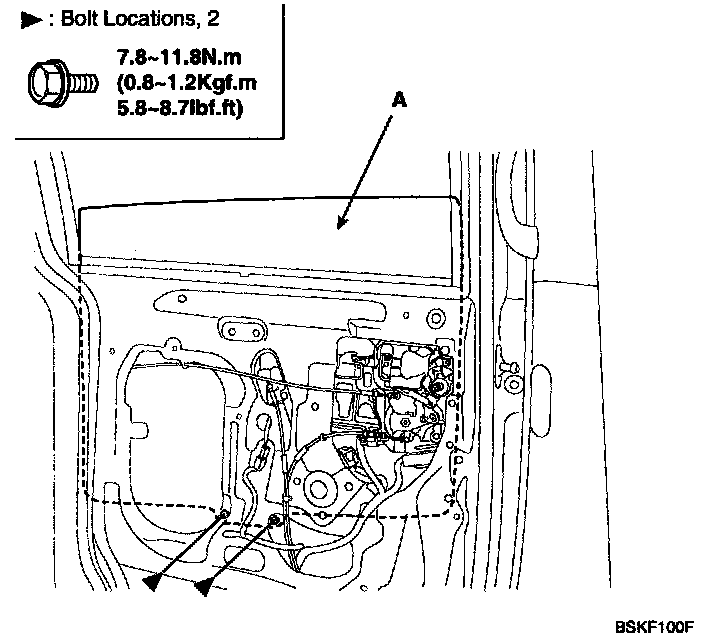

2. Carefully move the glass (A) until you can see the bolts, then loosen them. Separate the glass run from the door panel and carefully pull the glass out through the window slot.






3. Installation is the reverse of removal.

NOTE:
- Roll the glass up and down to see if it will move freely without binding.
- Make sure that there is no gap between the glass and glass run channel when the glass is closed.
- Adjust the position of the glass as necessary.
