Sliding Door

CHANNEL REPLACEMENT

1. Remove the door trim.
2. Remove the glass.

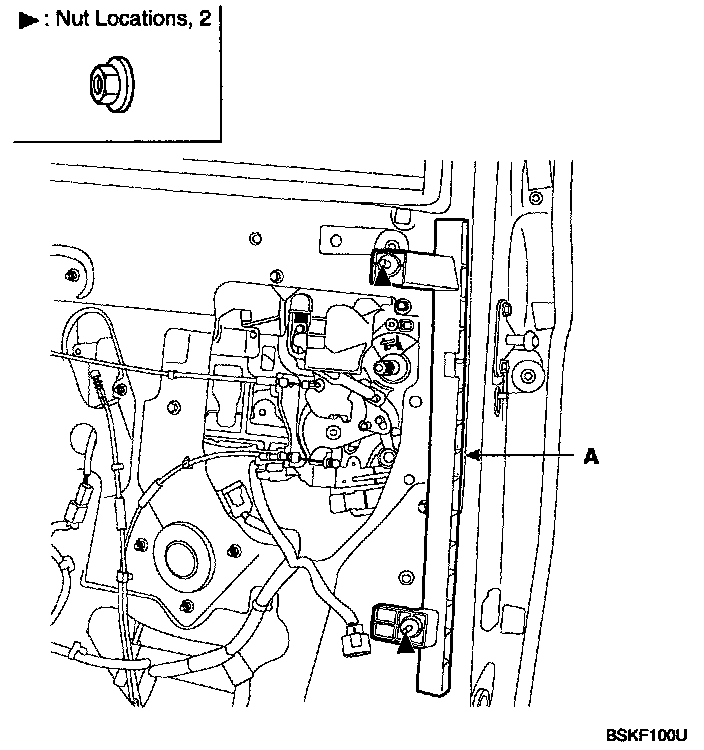

3. Loosen the channel mounting nuts, remove the channel (A).






4. Installation is the reverse of removal.
