Windshield Washer Motor: Service and Repair

FRONT WASHER MOTOR

REPLACEMENT

CAUTION:
- When servicing the washer pump, be careful not to damage the washer pump seal
- Do not operate the washer pump before filling the washer reservoir.
Failure to do so could result in premature pump failure.

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper cover.

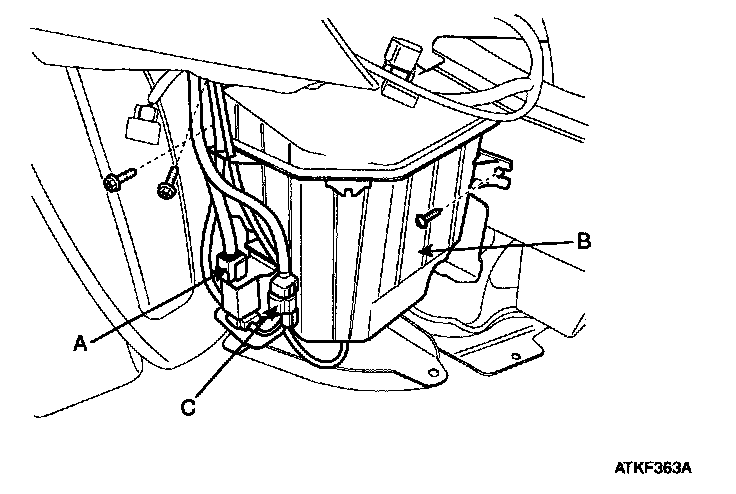

3. Remove the washer hose, the washer motor connector (A) and washer level sensor connector (C).
4. Remove the washer reservoir after removing 2 bolts and 1 step bolt.






5. Installation is the reverse of removal.
