Front

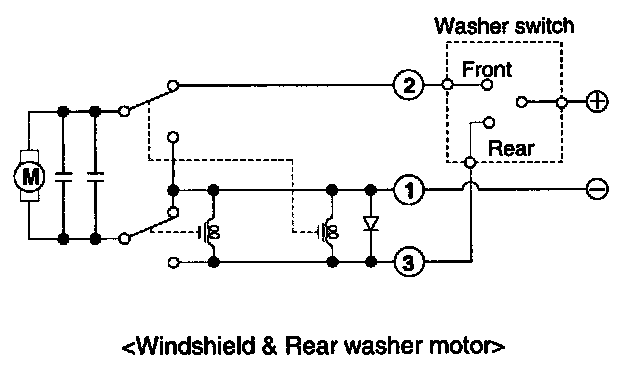

FRONT WASHER MOTOR

INSPECTION

1. With the washer motor connected to the reservoir tank, fill the reservoir tank with water.

NOTE: Before filling the reservoir tank with water, check the filter for foreign material or contamination. If necessary clean the filter.

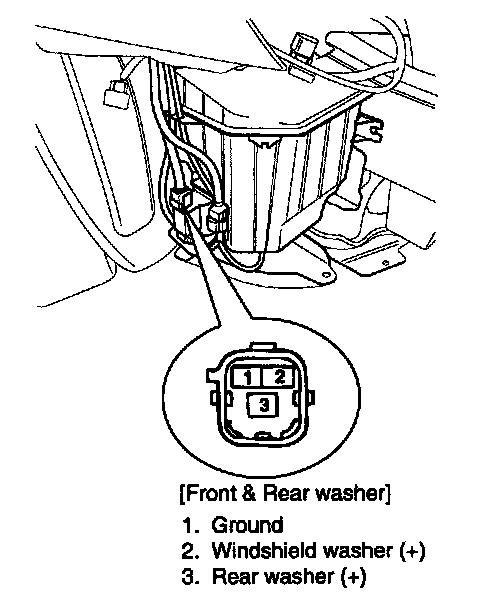

2. Connect positive (+) battery cables to terminal 2 and negative (-) battery cables to terminal 1 respectively.
3. Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles. If they are abnormal, replace the washer motor.
