Rear

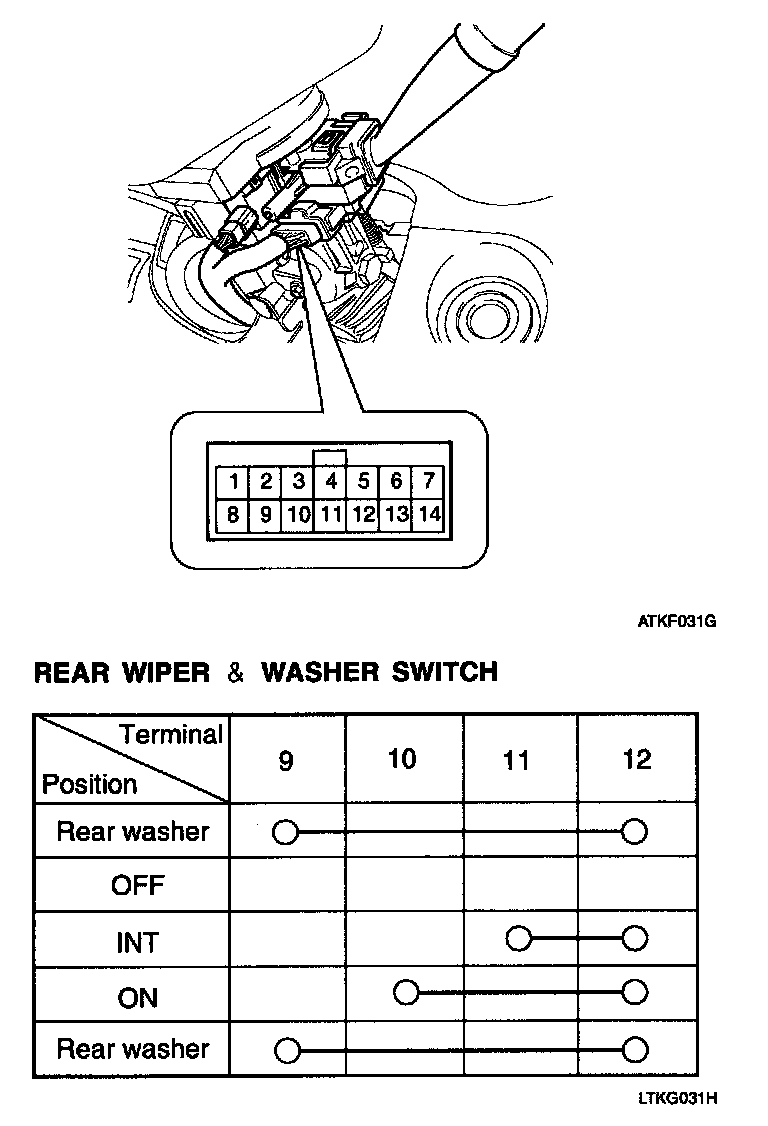

REAR WASHER SWITCH

INSPECTION
With the rear wiper & washer switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multifunction switch.
